Description
| P/N | CA-1Z2-00M1WN-00 |
|---|---|
| Series | View |
| Model | View 380 TG ARGB |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 410x285x442mm (16.14 x 11.22 x 17.4 inches) |
| NET WEIGHT | 6.93 kg / 15.28 lbs. |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |

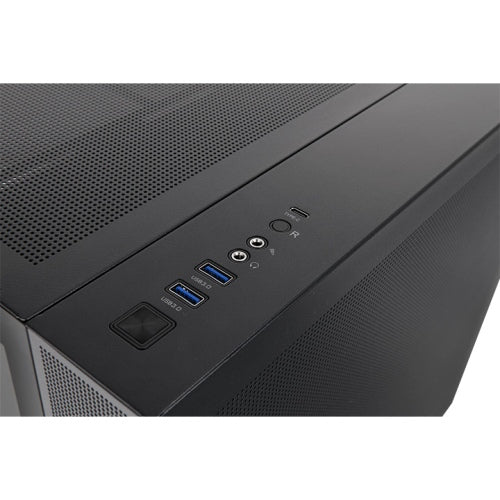

| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Right: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm |
| CLEARANCE | CPU cooler max height: 160mm VGA max length: 415mm PSU max length: 200mm |
