Description
Highlights
- Wi-Fi routers redefined: Powerful Wi-Fi 7 performance, lightning-fast wired connectivity, new design, and easy-to-use touchscreen and LED screens.
- Lightning-fast Quad-Band Wi-Fi 7: Keep your devices running at full speed. Enjoy smooth 4K/8K streaming, immersive AR/VR gaming, and incredibly fast downloads.
- Dual 10G ports: 1 × 10 Gbps Ethernet/Fiber combo WAN/LAN port + 1 × 10 Gbps WAN/LAN port + 4 × 2.5 Gbps port + 1 × 1 Gbps port + 2 USB connections port to ensure maximum flexibility and increase transport capacity
- Maximize coverage: Proprietary Wi-Fi optimization and 12 optimally positioned antennas and beamforming deliver more capacity, stronger, more reliable connections and less interference
- EasyMesh Compatible: Use with EasyMesh routers and range extenders to form a seamless whole-home mesh Wi-Fi, preventing drops and lag when moving between signals.
- TP-Link HomeShield - TP-Link's top-notch security service protects your home network with cutting-edge network and IoT protection. Free features: 1. Basic network security, including security scanning and IoT device identification 2. Basic parental controls 3. Service quality 4. Basic weekly/monthly reports. Please visit the TP-Link website for more information.
- Applicable to all Internet service providers, such as Comcast, Charter, ATandT, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc. (Most ISPs require a modem)
Product Description
WiFi 7 — WiFi Like Never Before
With the upcoming 7th generation of WiFi, the ultimate online experience will be unleashed. WiFi 7 brings faster speeds with accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency.
Lightning-Fast 24 Gbps Quad-Band WiFi 7
Experience the world’s first quad-band WiFi 7 router with blazing-fast speeds up to 24.4 Gbps. Every device in your home network will run at top performance. The brand-new 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.
True 10G Era with Dual 10G WAN/LAN Ports

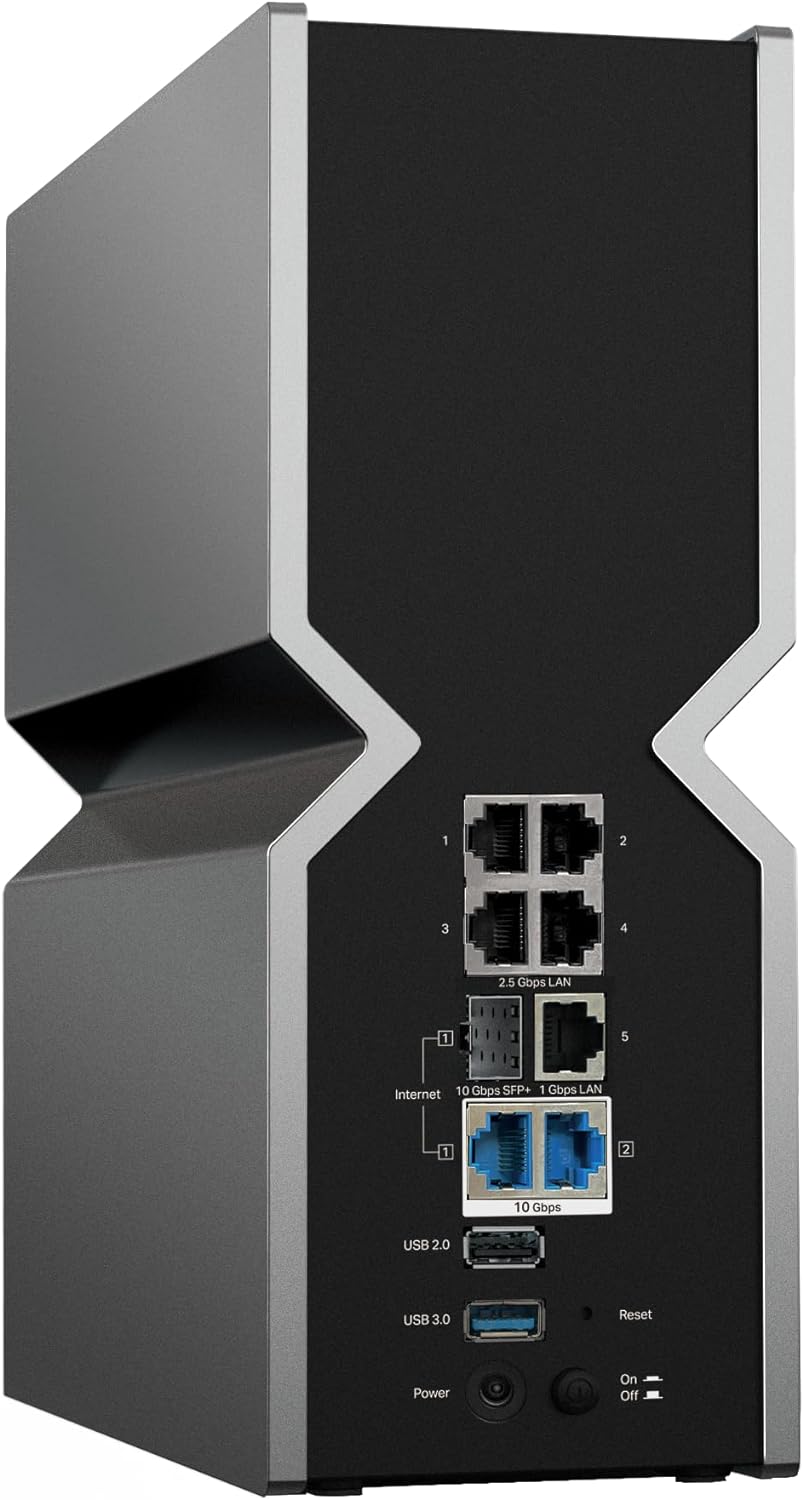

Equipped with two 10G WAN/LAN ports—one RJ45 port and one SFP+ Fiber/RJ45 Ethernet combo port—Archer BE900 provides flexible support for both fiber and copper connections. The additional four 2.5G ports, one 1G port, and two USB ports make it an ideal solution for future-proofing your home network.
Boosted WiFi Coverage Throughout Your Home

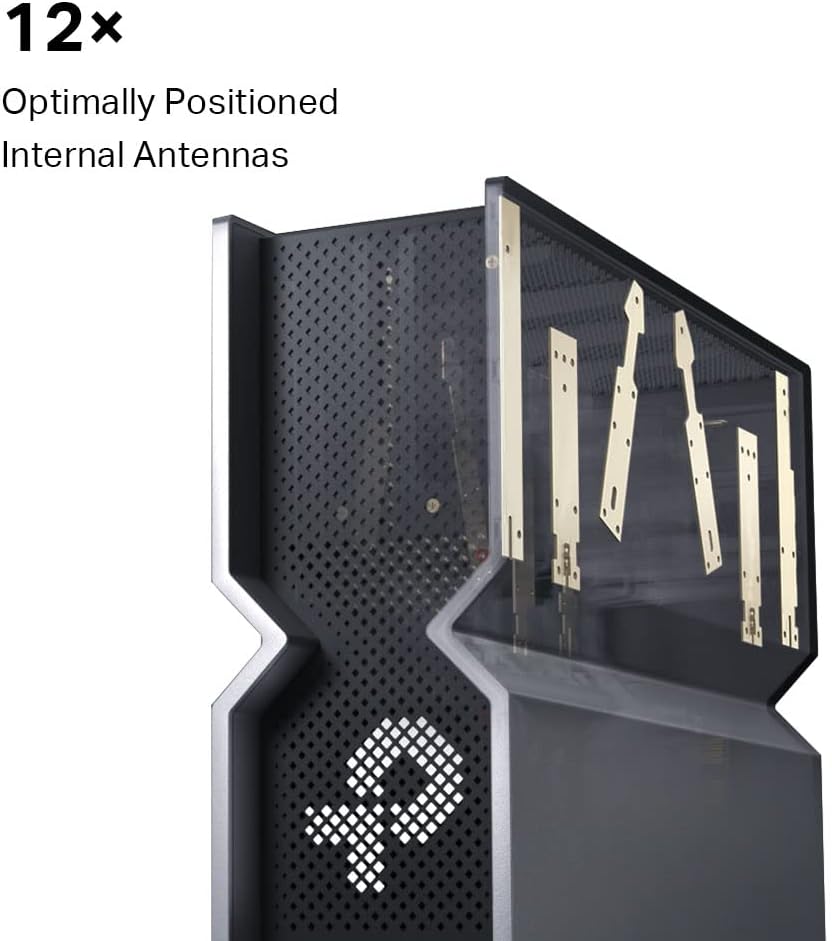

Proprietary WiFi optimization and 12× optimally positioned antennas deliver more capacity, stronger and more reliable connections, and less interference. All of these designs achieve the effects of high gain, high isolation, high integration, and multidirectional coverage.
Flexibly Create Whole Home Mesh WiFi
Archer BE900 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router / range extender or any TP-Link device that supports OneMesh to further form your Whole Home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.
HomeShield — Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy. Upgrade to HomeShield Pro to get more comprehensive protection.*
Private IoT Network
Easily share files between connected devices by plugging into an external drive. Make it your personal cloud storage and access away from home.
VPN Clients & Server Supported
Devices in your home can access VPN servers remotely without the need of VPN software on each device. Access both the VPN and internet simultaneously.
Easy Setup and Use
Set up in minutes with the TP-Link's Tether app. The app also allows you to manage network settings from any Android or iOS device.
Backwards Compatible
This Wi-Fi 7 router offers backwards compatibility with the previous generations of Wi-Fi including 802.11 a/b/g/n/ac/ax/be.
Specifications
| WIRELESS | |
|---|---|
| WiFi Speeds | BE24000 • 6 GHz: 11520 Mbps (802.11be) • 5 GHz-1: 5760 Mbps (802.11be) • 5 GHz-2: 5760 Mbps (802.11be) • 2.4 GHz: 1376 Mbps (802.11be) |
| WiFi Range |
4 Bedroom Houses 12× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
Very High Quad-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 16 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| Advanced Functions | • 320 MHz Channel • 4K-QAM • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| SECURITY | |
|---|---|
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 10 Gbps WAN/LAN • 1× 10 Gbps SFP+/RJ45 WAN/LAN Internet Port • 4× 2.5 Gbps LAN • 1× 1 Gbps LAN |
| USB Support | 1× USB 3.0, 1× USB 2.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power On/Off Button • Wi-Fi On/Off Button (Touchscreen) • LED Button (Touchscreen) • WPS Button (Touchscreen) • Reset Button |
| Power | 15 V ⎓ 5 A |
| Touchscreen | Yes |
| LED Screen | Yes |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kit | HomeShield Learn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.8 × 11.9 × 10.3 in (96 × 302 × 262.5 mm) |
| Package Contents | • Wi-Fi 7 Router Archer BE900 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
