Description
Highlights
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology

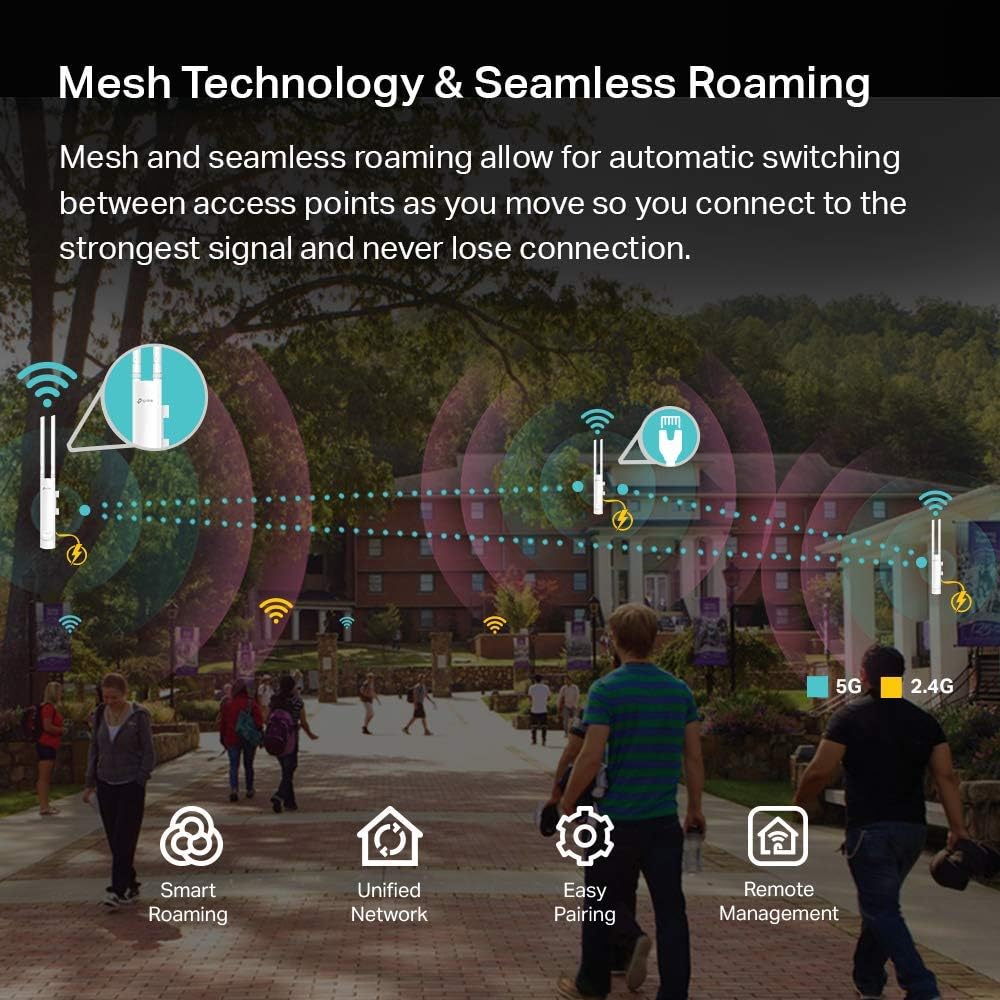

- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Cloud centralized management and Omada app for ultra convenience and easy management
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business

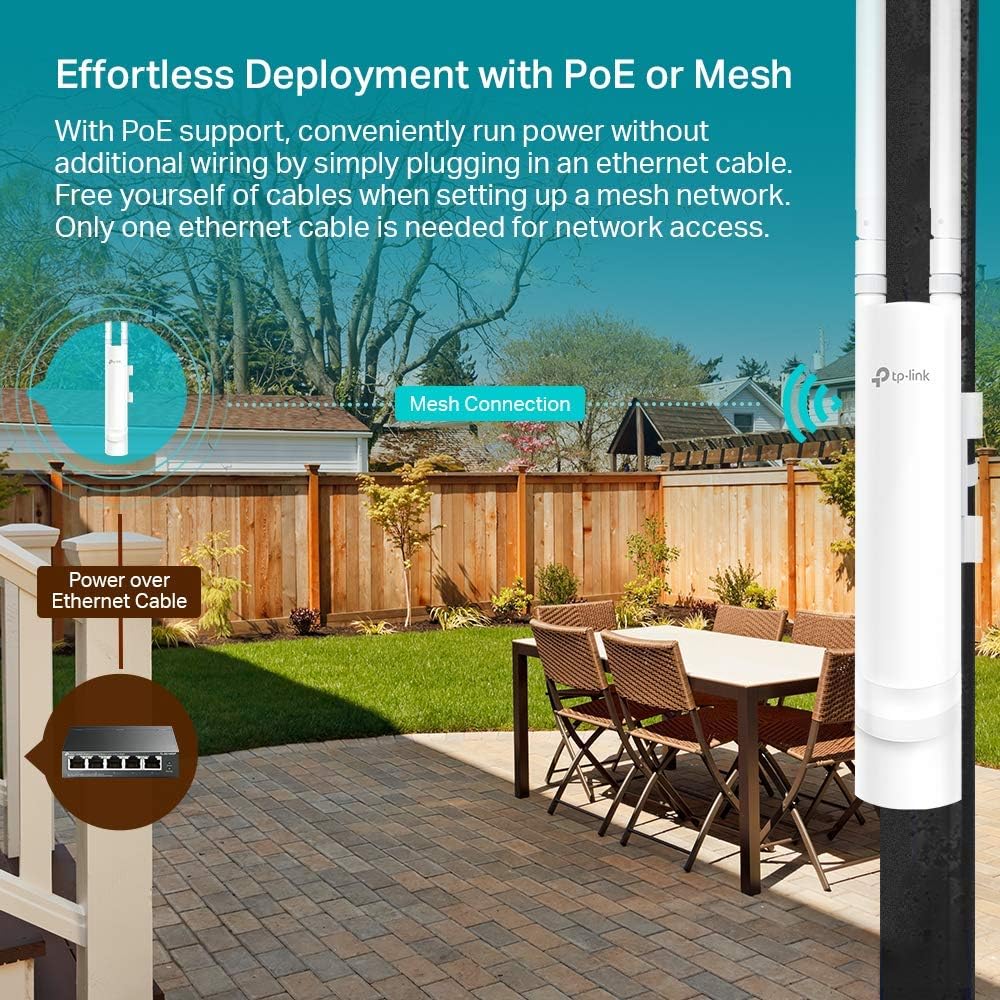

- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |
| Interface | 1x Gigabit Ethernet RJ-45 port |
|---|---|
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |
| Antenna | 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall mount (mounting kit included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |

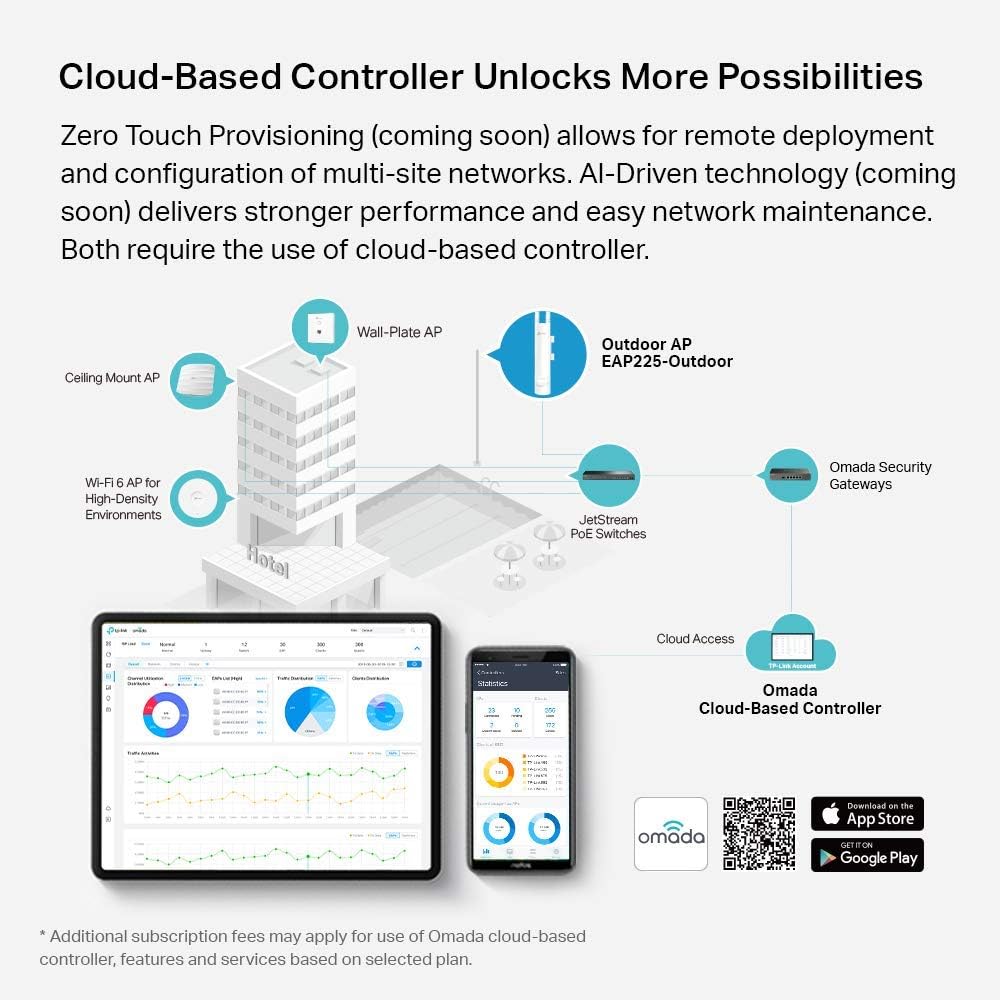

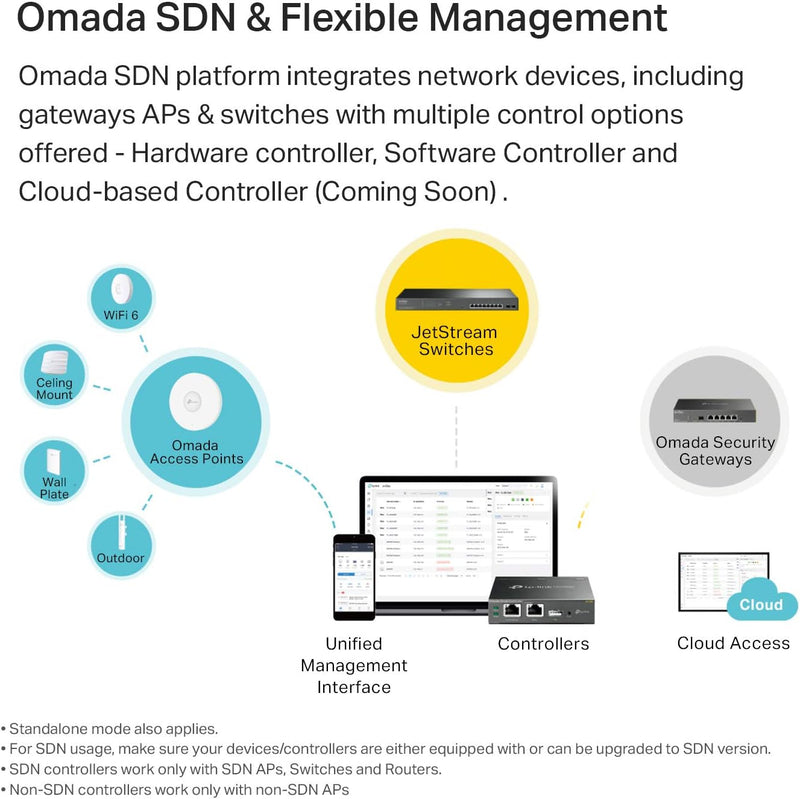

| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point Passive PoE Injector Power Cord Mounting Kits Installation Guide Waterproof Rubber Insert Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30℃~70℃ (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
