Description
Highlights

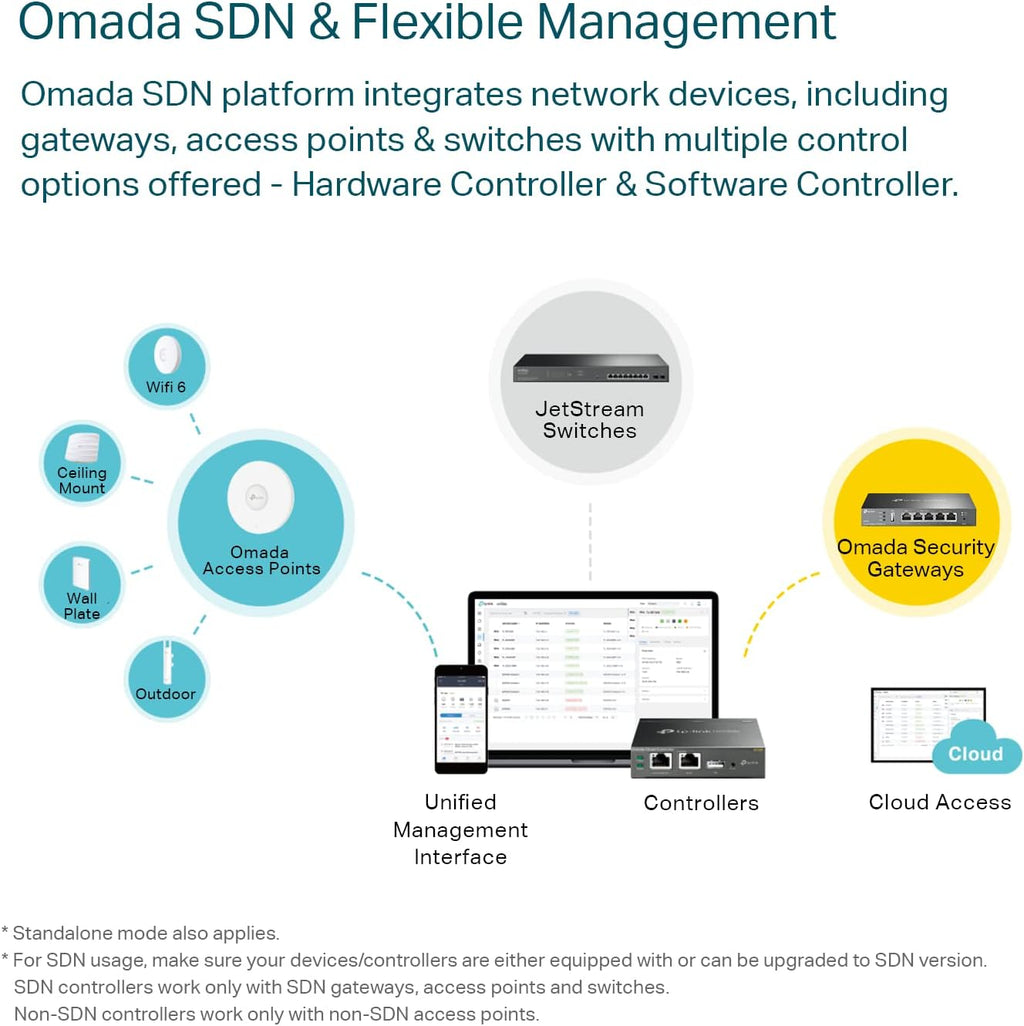

- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

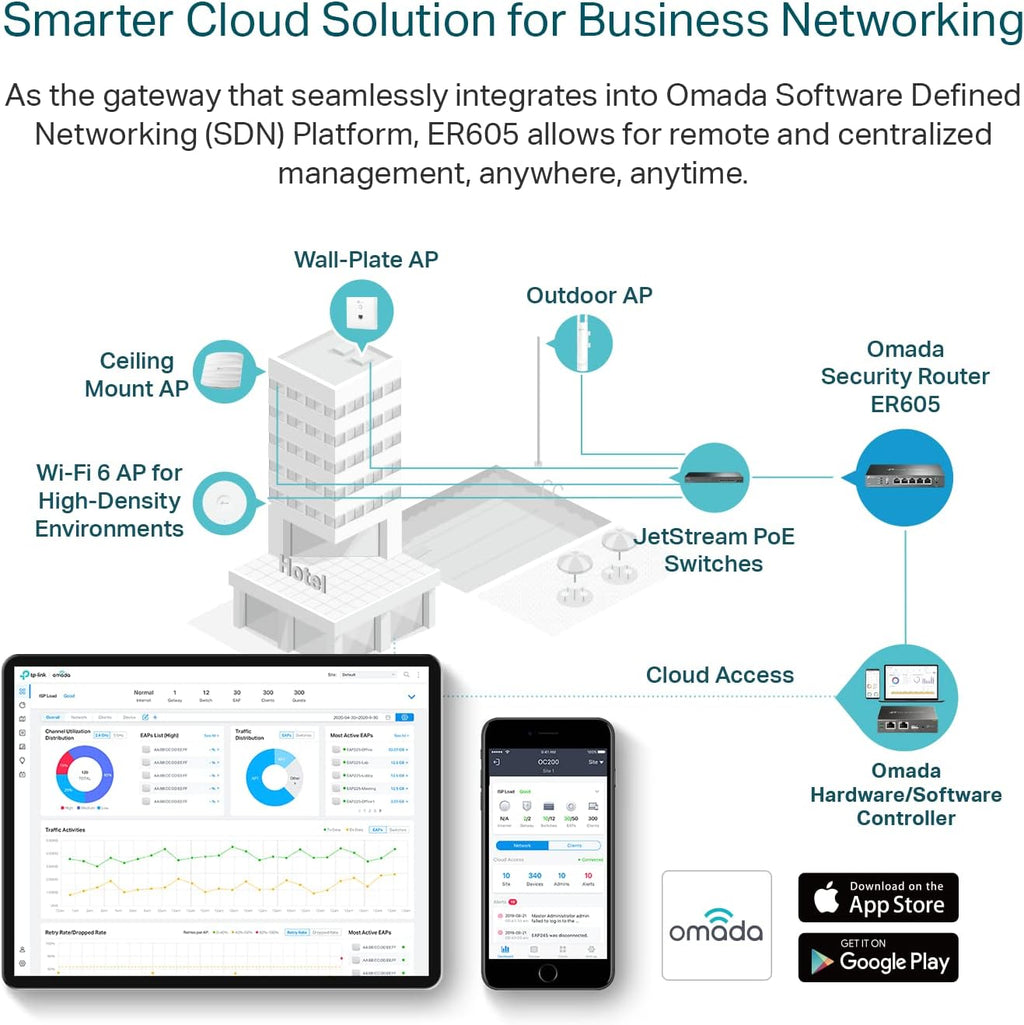

- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

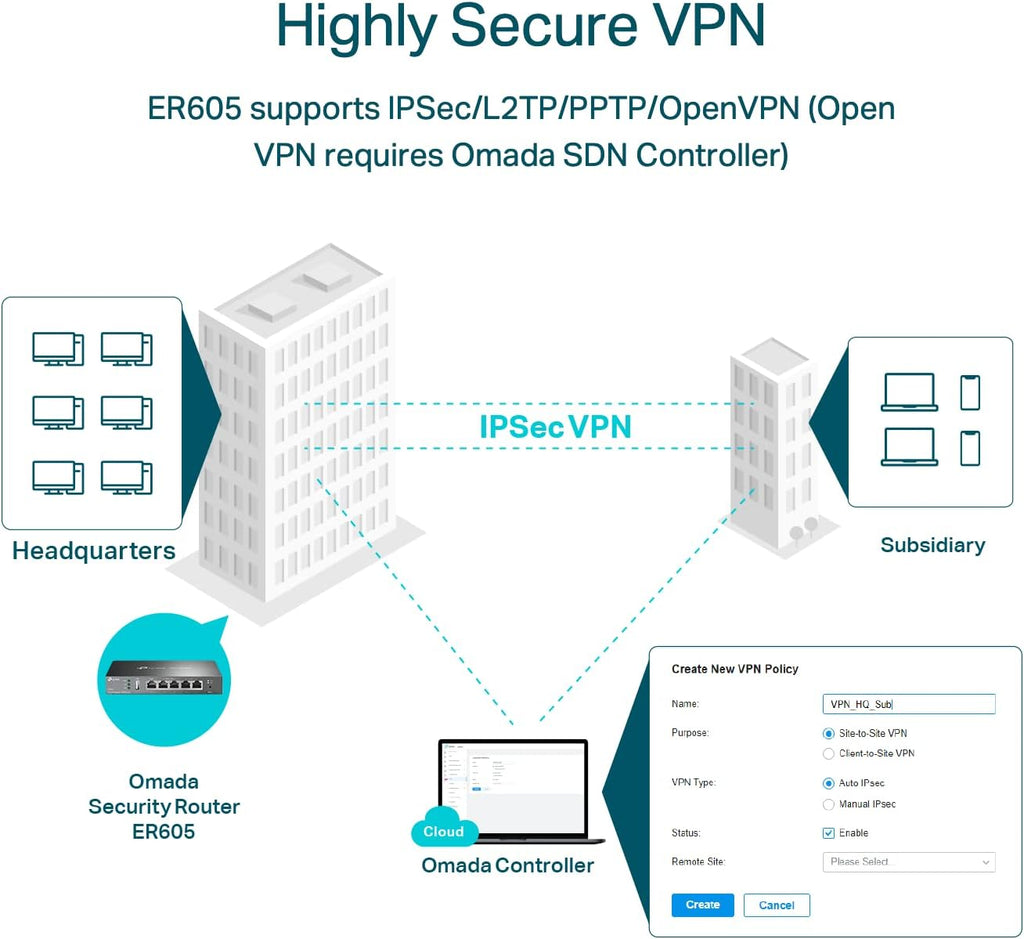

- Highly Secure VPN: Supports up to 20x LAN-to-LAN IPsec, 16x OpenVPN, 16x L2TP, and 16x PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Product Descriptions
Specifications
| HARDWARE FEATURES | |

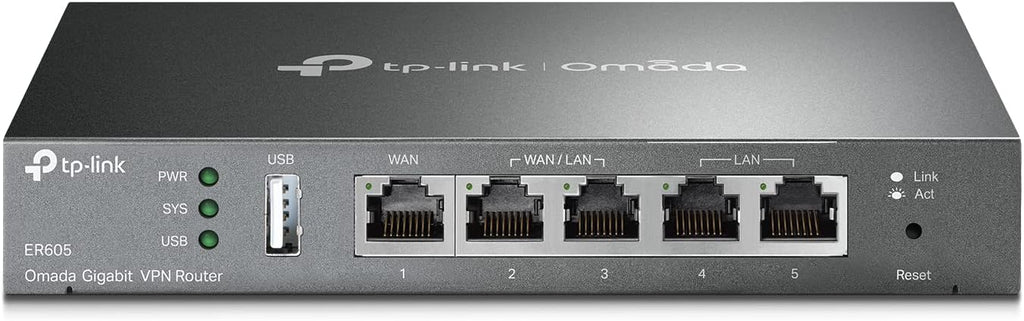

| Interface | 1 Fixed Gigabit WAN Port 1 Fixed Gigabit LAN Port 3 Changeable Gigabit WAN/LAN Ports |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |
| Power Supply | External 9V/0.9A DC Adapter |
| Flash | SPI 16MB |
| DRAM | 128 MB |
| led | PWR, SYS, WAN, LAN |

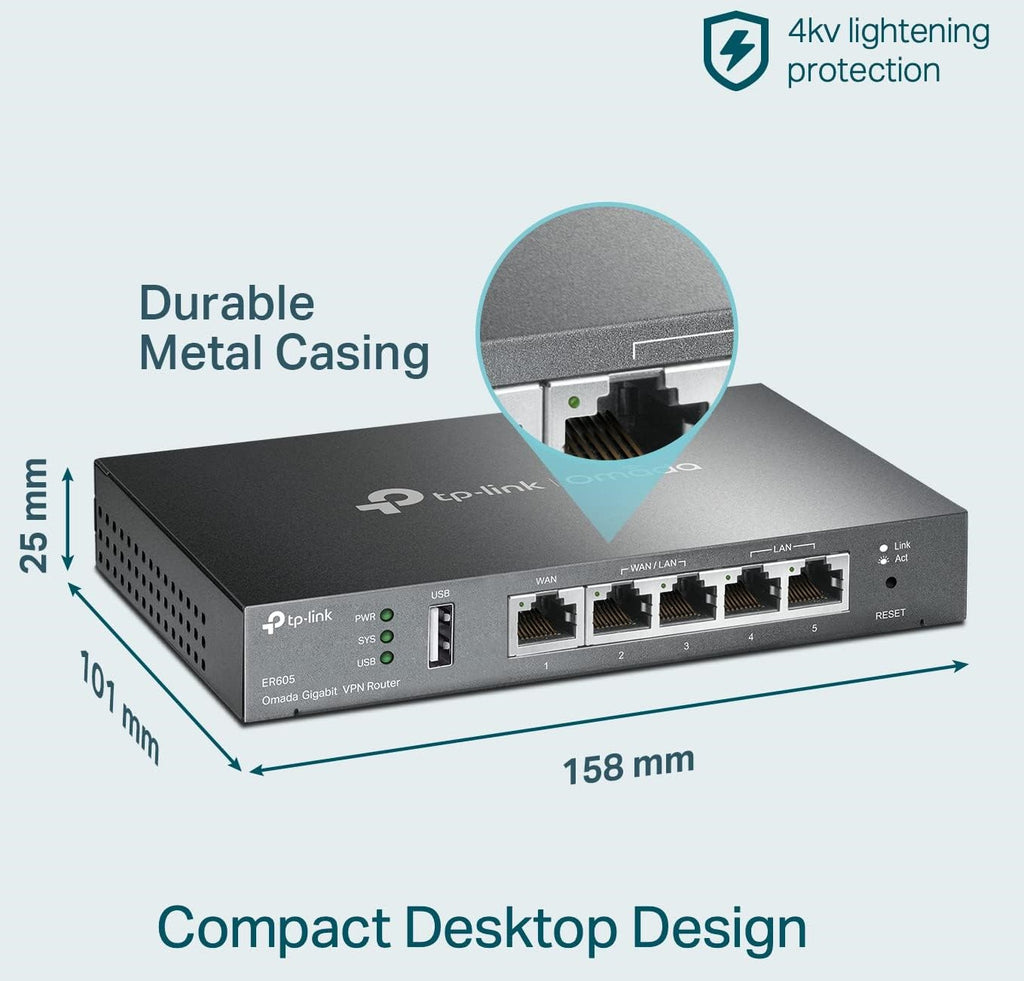

| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| PERFORMANCE | |
| Concurrent Session | 25,000 |
| IPsec VPN Throughput | 41.5Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static/Dynamic IP PPPoE PPTP L2TP |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| IP/Port/Protocol/Domain Name Filtering | Static Routing Policy Routing |
| Bandwidth Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG DoS Defense, Ping of Death Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 20 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2* MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller |
| PPTP VPN | PPTP VPN Server 10 PPTP VPN Clients 16 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 10 L2TP VPN Clients 16 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server 10 OpenVPN Clients 16 OpenVPN Tunnels |
| SECURITY | |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User/Voucher/SMS/Radius) External Radius Sever External Portal Sever |
| MANAGMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Time Setting Diagnostic Firmware Upgrade Factory Defaults/Reboot Backup&Restore System Log Remote Management Statistics Controller Settings SNMP |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Gigabti VPN Router ER605 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
