Description
Highlights
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)* 3 , Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.

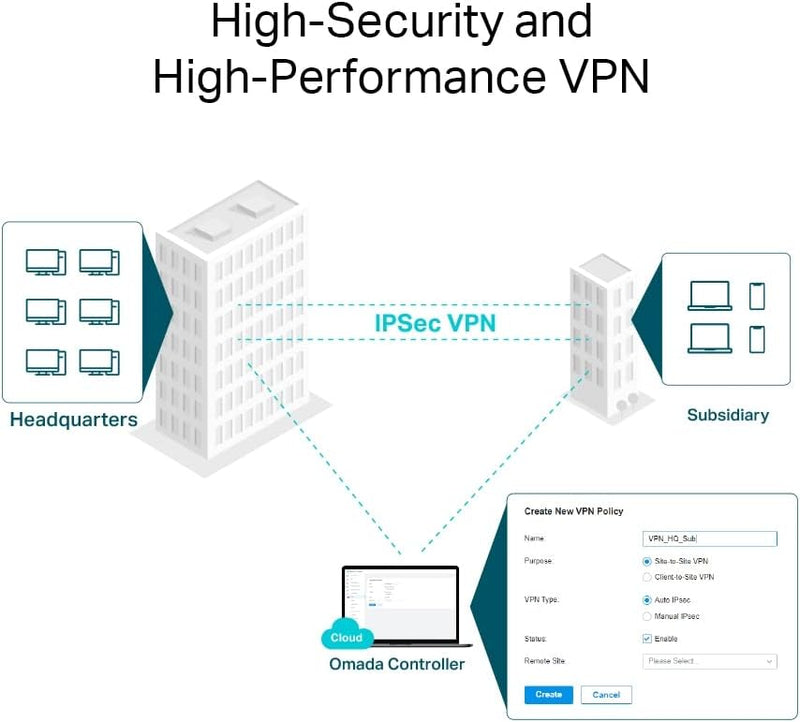

- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
- Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |

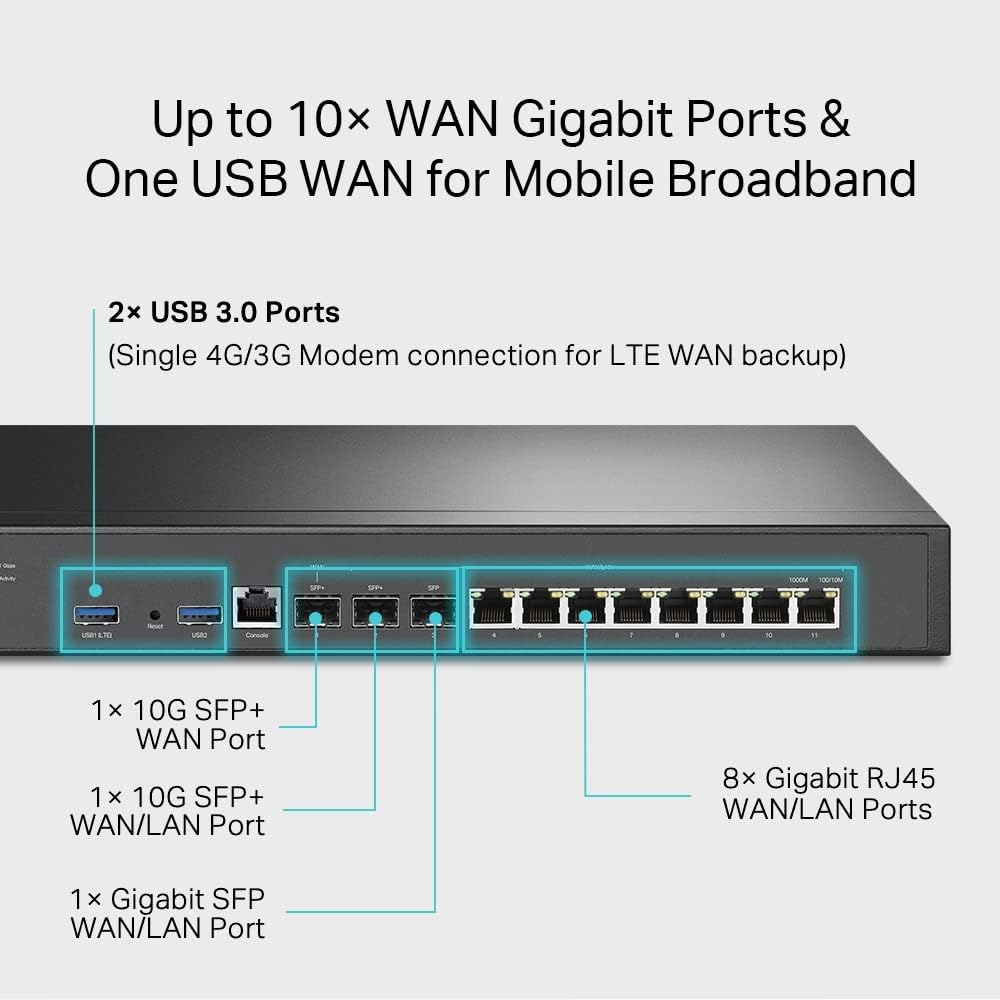

| Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Ports • 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Button | Reset Button |
| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4GBDDR4 |
| led | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 4.9 × 1.9 × 0.9 in. (124.6 × 48.7 × 22.8 mm) |
| Max Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| Performance | |
| Concurrent Session | 2,300,000 |
| New Sessions/Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT(L2TP) | • Upload: 4230.62 Mbps • Download: 4169.53 Mbps |
| NAT(PPTP) | • Upload: 3933.86 Mbps • Download: 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps • Download: 1030 Mbps |
| IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps |
| SSL VPN Throughput | 1511.10Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | •DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing* 5 , Failover) • Online Detection |
| NAT | • One-to-One NAT* 5 • Multi-Net NAT • Virtual Server • Port Triggering* 5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defense, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | • SSL VPN Server • SSL VPN Client • 500 OpenVPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)* 6 • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)* 6 • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10)* 6 • 110 OpenVPN Tunnels |
| SECURITY | |
| Filtering | • WEB Group Filtering* 5 • URL Filtering • Web Security* 5 |
| ARP Inspection | • Sending GARP Packets* 5 • ARP Scanning* 5 • IP-MAC Binding* 5 |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* 2 • Hotspot (Local User / Voucher* 2 / SMS* 2 / Radius* 2 ) • External Radius Sever • External Portal Sever* 2 • Facebook Check-In* 2 • Instagram Follow* 2 |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 • Power Cord • Rack-Mount Kit • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
