Description
Highlights

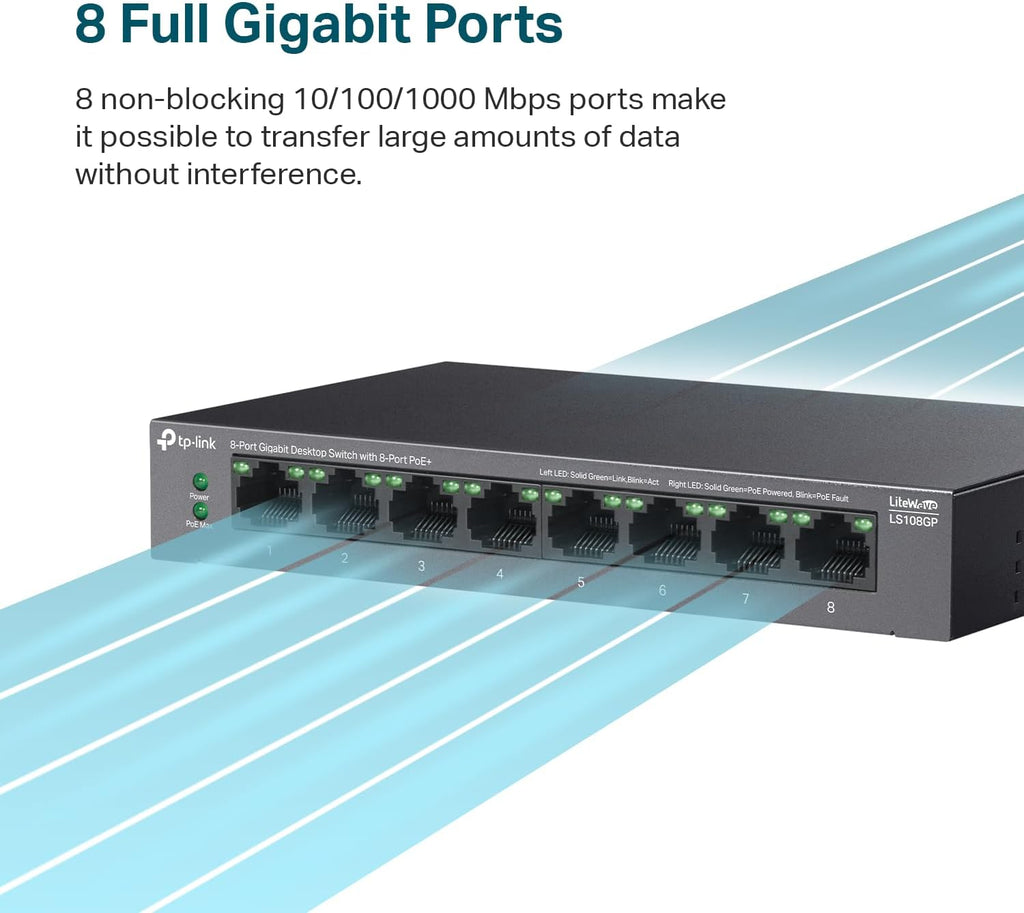

- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.

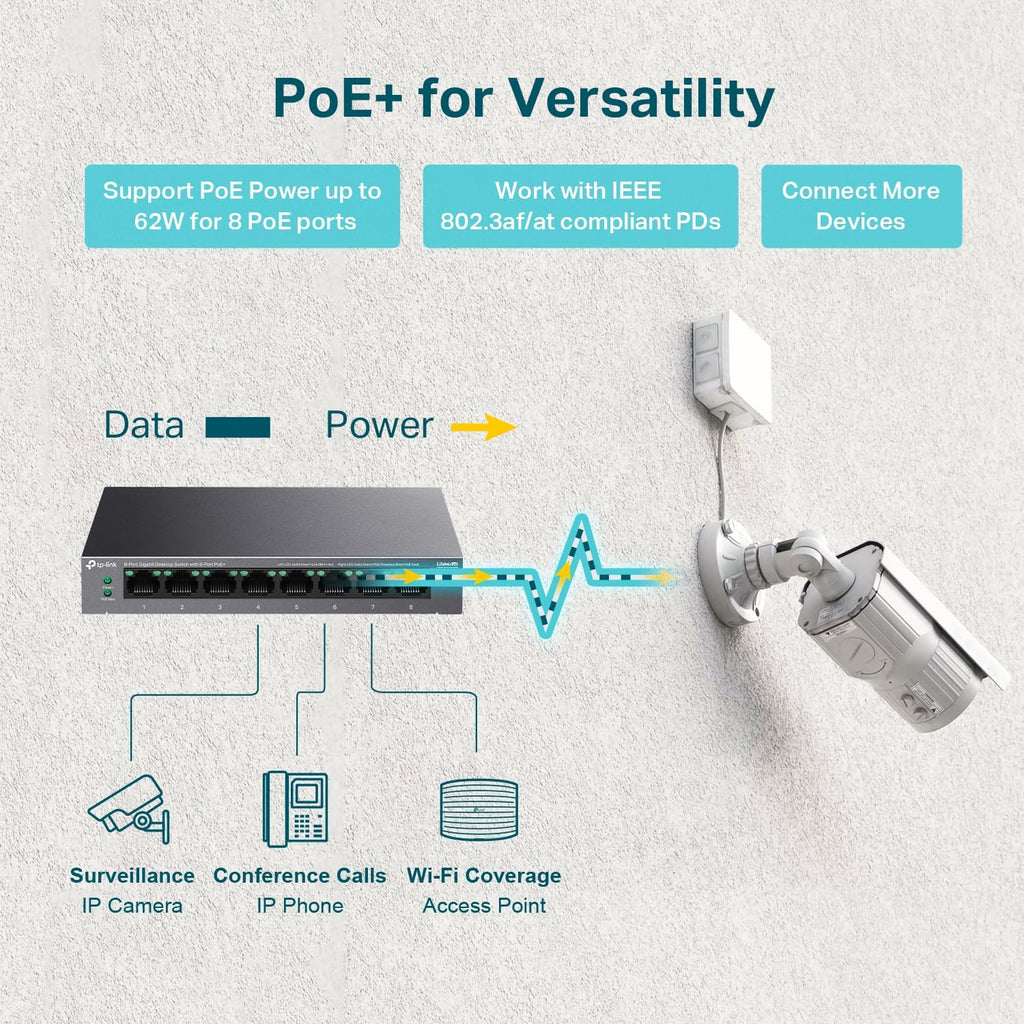

- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

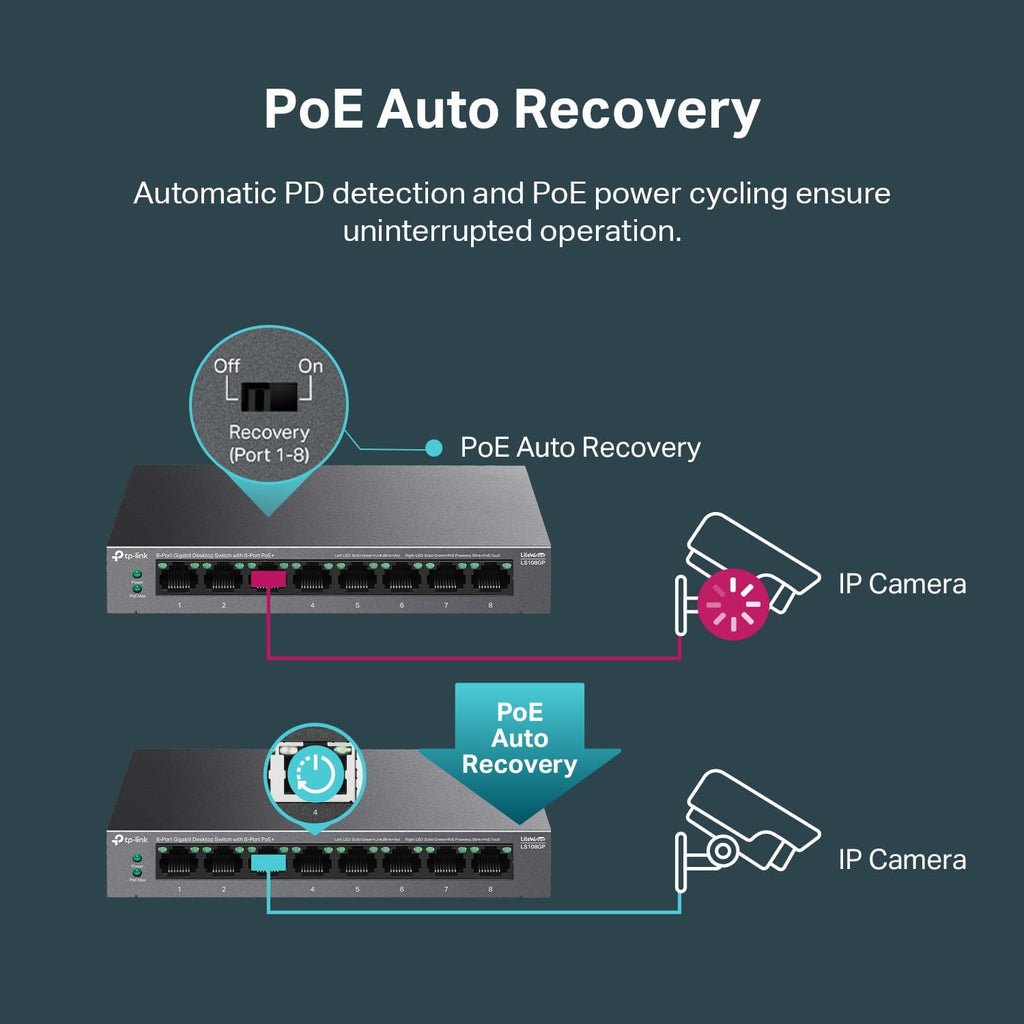

- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- 5 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |
| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
|---|---|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Budget: 62 W |
| Dimensions ( W x D x H ) | 6.2×3.9×1.0 in (158×99×25 mm) |
| Max Power Consumption | • 5.53 W (220 V/50 Hz. no PD connected) • 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Max Heat Dissipation | • 18.81 BTU/h (220 V/50 Hz. no PD connected) • 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • LS108GP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Warranty | 5 Years TP-Link Local Manufacturer Warranty |
