Description
Highlights
- Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
- Wireless N speeds up to 300Mbps
- Integrated antennas provide stable wireless connections

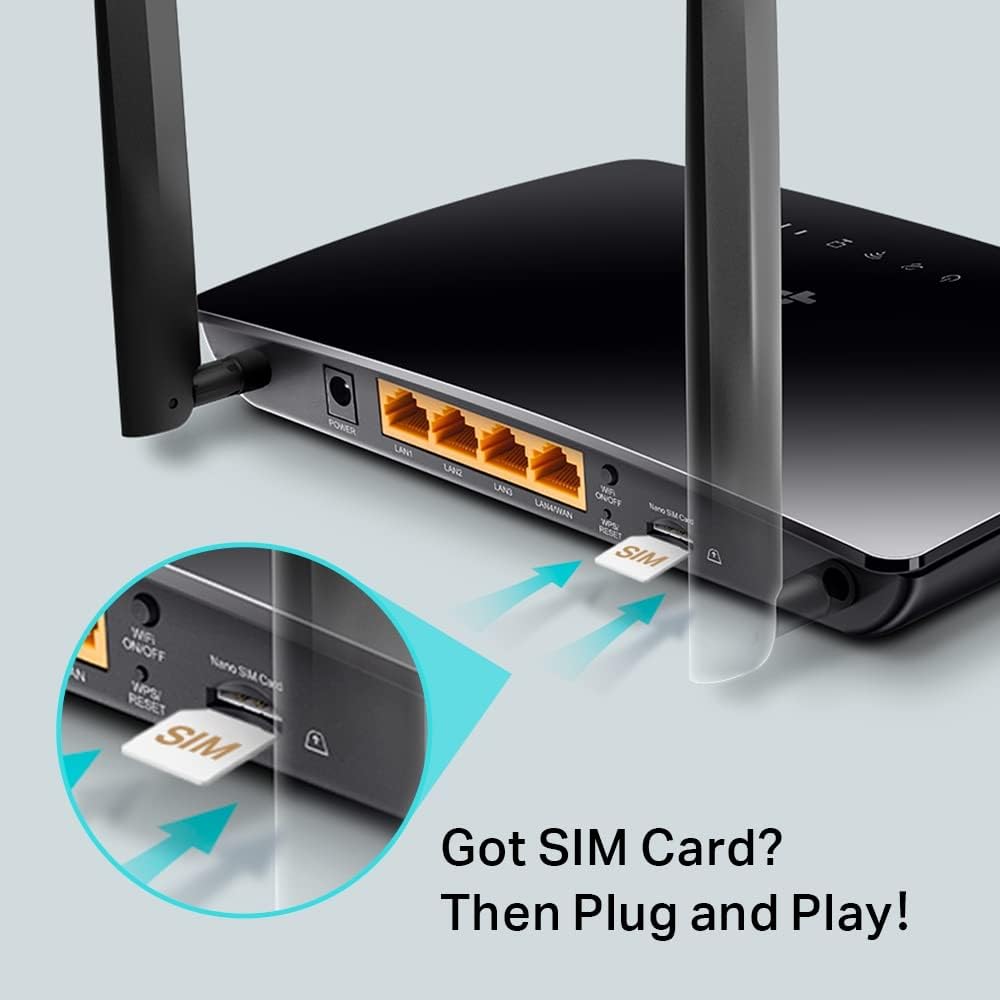

- Requires no configuration - just insert a SIM card and turn it on to enjoy high speed internet access

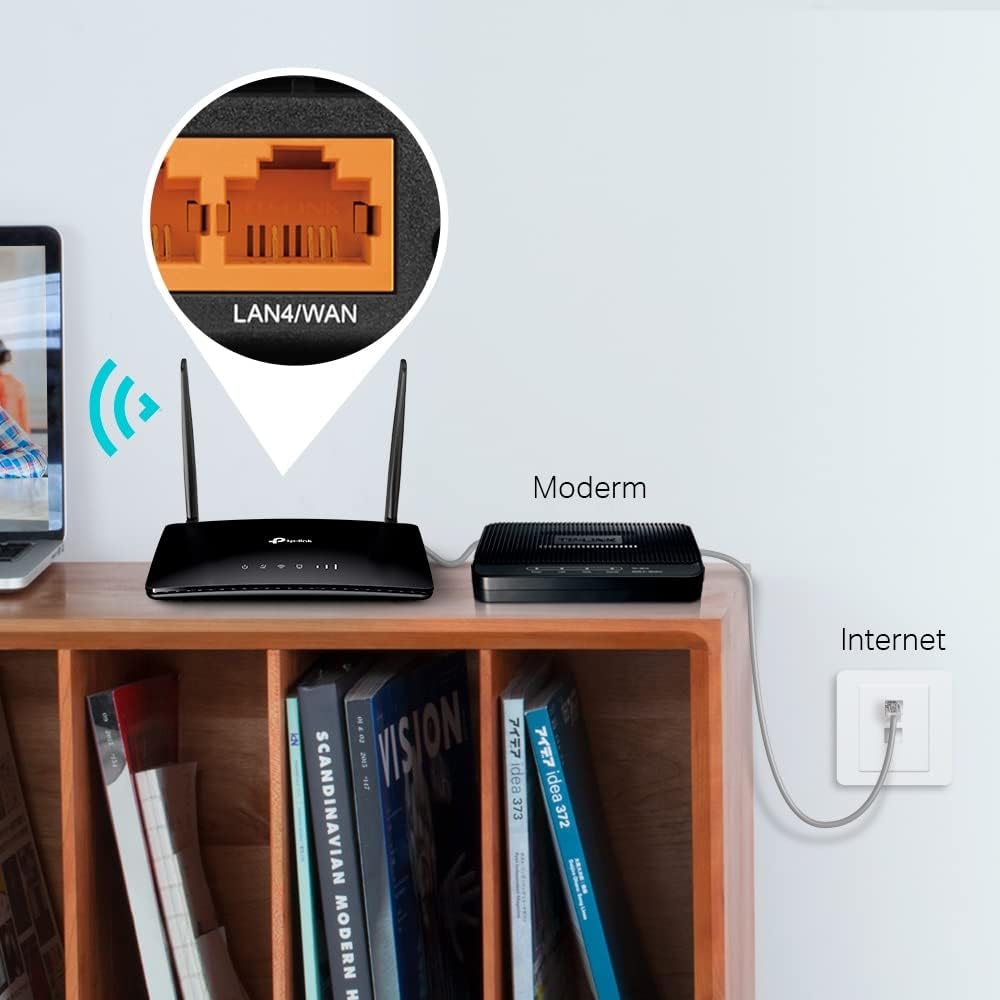

- LAN/WAN port provides options and flexibility, allowing you to choose your connection type
- Works with Maxis, Digi, Celcom, Umobile, Yes and Unifi Mobile
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |

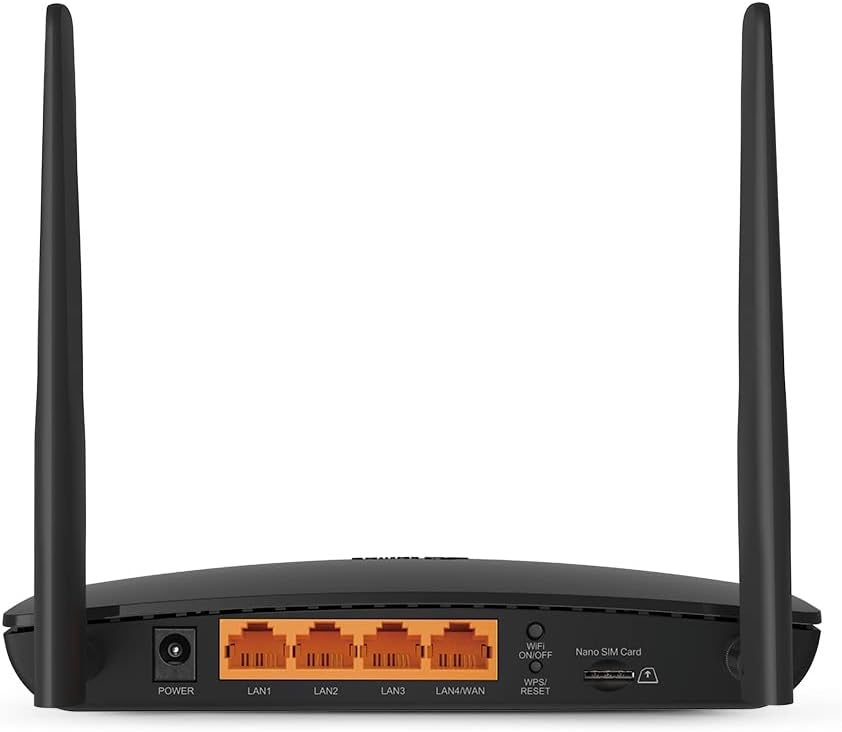

| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| External Power Supply(EU) | 9V/0.85A |
| External Power Supply(APAC) | 12V/1A |
| Dimensions ( W x D x H ) | 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| Antenna Type | V3/APAC: 2 Internal 4G LTE Antennas V4/V2/V1: 2 Detachable 4G LTE Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Transmit Power | CE: <20dBm(2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type (V2) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Network Type (V3) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
| Network Type(APAC V3) | 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz) |
| SOFTWARE FEATURES | |
| Quality of Service | Not Available |
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns,NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| VPN | PPTP VPN, IPSec VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4GHz guest network x 1 |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents |

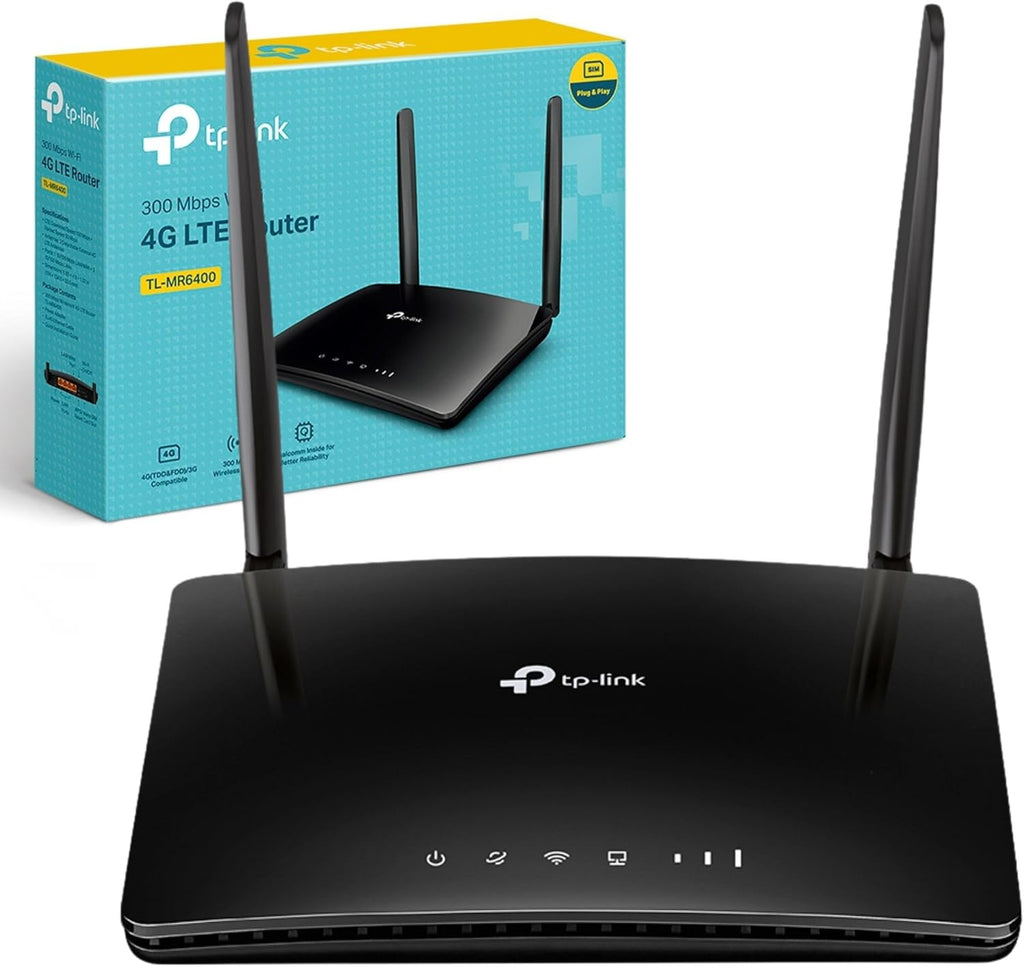

300Mbps Wireless N 4G LTE Router, TL-MR6400 APAC RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Micro SIM Card |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
