Description
Highlights
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power depends on requirements
- Convenient wall-mounting design
- Plug-and-Play, no configuration required
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |

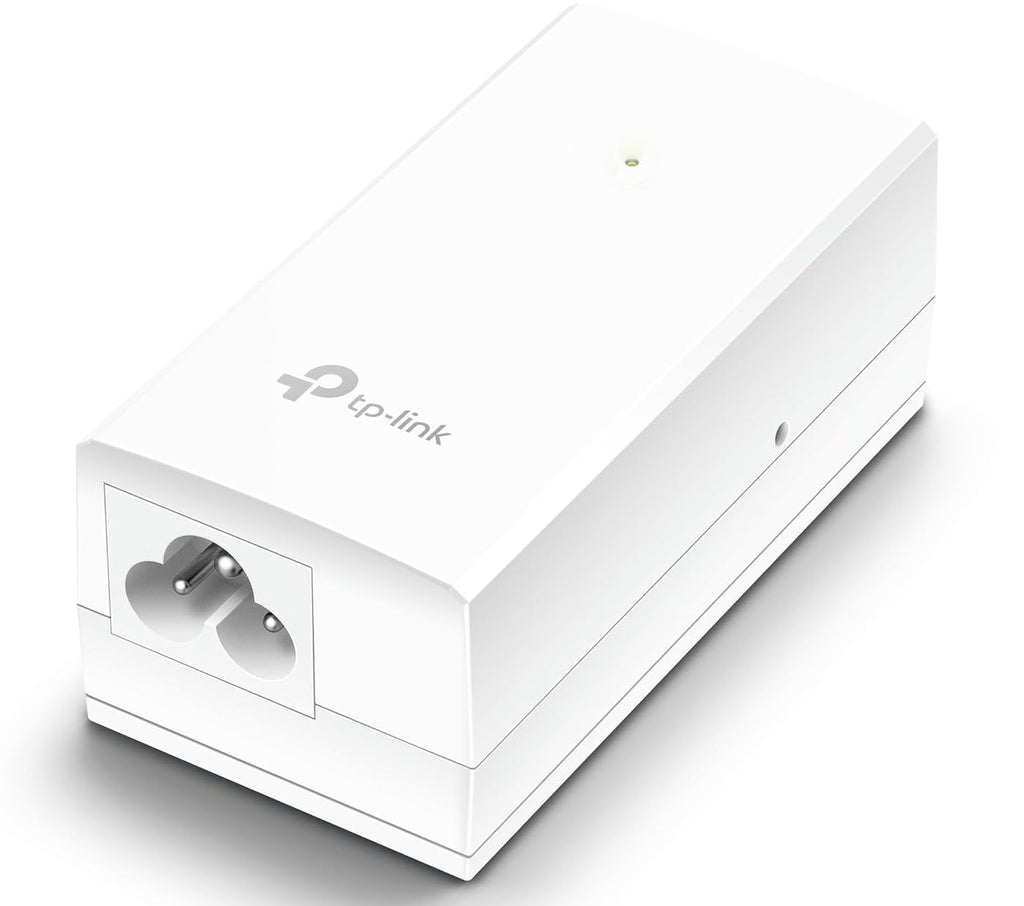

| Interface | 2 x 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 100~240V / 50~60Hz AC Power Input Port |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 12W (Max. 24VDC) |
| LED Indicator | Power(PWR) |
| Dimensions ( W x D x H ) | 3.4 x 1.7 x 1.4 in. (85.8mm x 43.9mm x 35mm) |
| OTHER | |
| Certification | FCC, RoHS |
| Package Contents | 24V, 12W Passive PoE Adapter TL-POE2412G Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
