Description
Highlights
- Up to 4 WAN ports equipped with advanced load balance to guarantee maximum bandwidth and backup capabilities
- Portal Authentication enables efficient access management
- Marshals bandwidth resource to specific clients based on their unique application environments
- TL-R470T+ - Smaller case for cost-effective solution in the small office or Internet cafes network
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
What This Product Does
The TL-R470T+ load balance broadband router is a wise choice for small business. It brings you high return on investment with low overhead. Featuring three changeable WAN/LAN ports, TL-R470T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R470T+ integrates multiple load balancing strategies, advanced QoS and strong firewall to provide you with consistent network uptime and reliable Ethernet connectivity. Moreover, it is easy to manage the TL-R470T+ via a web-based utility, which makes building and managing your network more convenient.
Three Changeable WAN/LAN Ports
The TL-R470T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/WEB ¬filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec and PPTP which are not well compatible with NAT, TL-R470T+ offers administrators one-click enable of ALG choices corresponding to the above five applications.
Efficient Access Management
Portal authencation enables administrators to only allow users with legal accounts that have passed authentication to access the Internet. Cooperating with IP-based Bandwidth Control, it is capable of confining bandwidth usage of certain accounts.
Safety Minded Enterprise Investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature's more violent elements.
Specifications
| HARDWARE SPECIFICATIONS | |
|---|---|
| standards and protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
| Connection interface |
1 Fixed 10/100Mbps WAN port 1 Fixed 10/100Mbps LAN port 3 Changeable Ethernet WAN/LAN port |
| Network cable |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
| button | Reset button |

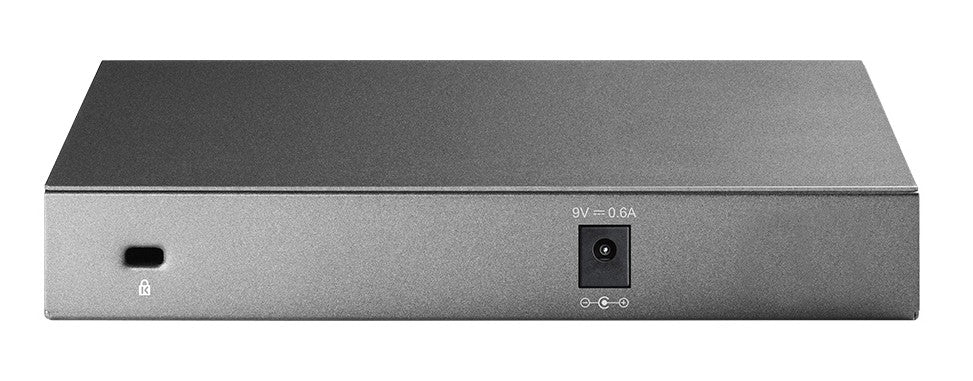

| power supply | External 9V/0.6A DC transformer |
| flash memory | 16MB |
| DRAM | 128MB |
| LED light | PWR, SYS, WAN, LAN, WAN/LAN |
| Dimensions (length x width x height) | 158 × 101 × 25 millimeters (mm) |
| PRODUCT PERFORMANCE | |
|---|---|
| Number of simultaneous connections | 10000 |
| BASIC SKILLS | |
|---|---|
| WAN connection type | Fixed/Floating IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| Copy MAC address | Edit WAN/LAN MAC address |
| DHCP | DHCP server/client, DHCP address reservation |
| exchange settings | Rate limit, port settings, port VLAN |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/URL/WEB filtering |
| IGMP | IGMP proxy/IGMP snooping |
| guide | Virtual server, port triggering, DMZ |
| load balancing | Rule routing, connection redundancy |
| routing | fixed routing |
| safety | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defense, Ping of Death, IP/MAC Binding |
| Traffic management | Bandwidth management, connection limit |
| MANAGEMENT FUNCTIONS | |
|---|---|
| Serve | Dynamic DNS, UPnP |
| maintain | Time settings, daylight saving time, SNMP, diagnostics, firmware update, reset to factory defaults/restart, backup/restore settings, system logs, remote management, statistics |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
TL-R470T+ Power Transformer RJ-45 Ethernet Route Quick Installation Manual |
| system requirement | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| environment |
Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90% Non-condensing storage humidity: 5%~90% No condensation |
