Extend AC1200 Wi-Fi to Every Room Using Existing Electrical System
AV1000 Gigabit Powerline ac Wi-Fi Kit
TL-WPA7517 KIT
Description
TL-WPA7517 KIT
AV1000 Gigabit Powerline ac Wi-Fi Kit
- Homeplug AV2 Standard Compliant: Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters‡
- Dual Band 802.11ac WiFi: AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home†
- Wi-Fi Auto-Sync: Simply copy your router's Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move
- Gigabit Ethernet Port: Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
- Plug, Pair and Play: Quickly set up a secured Powerline network
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage◇

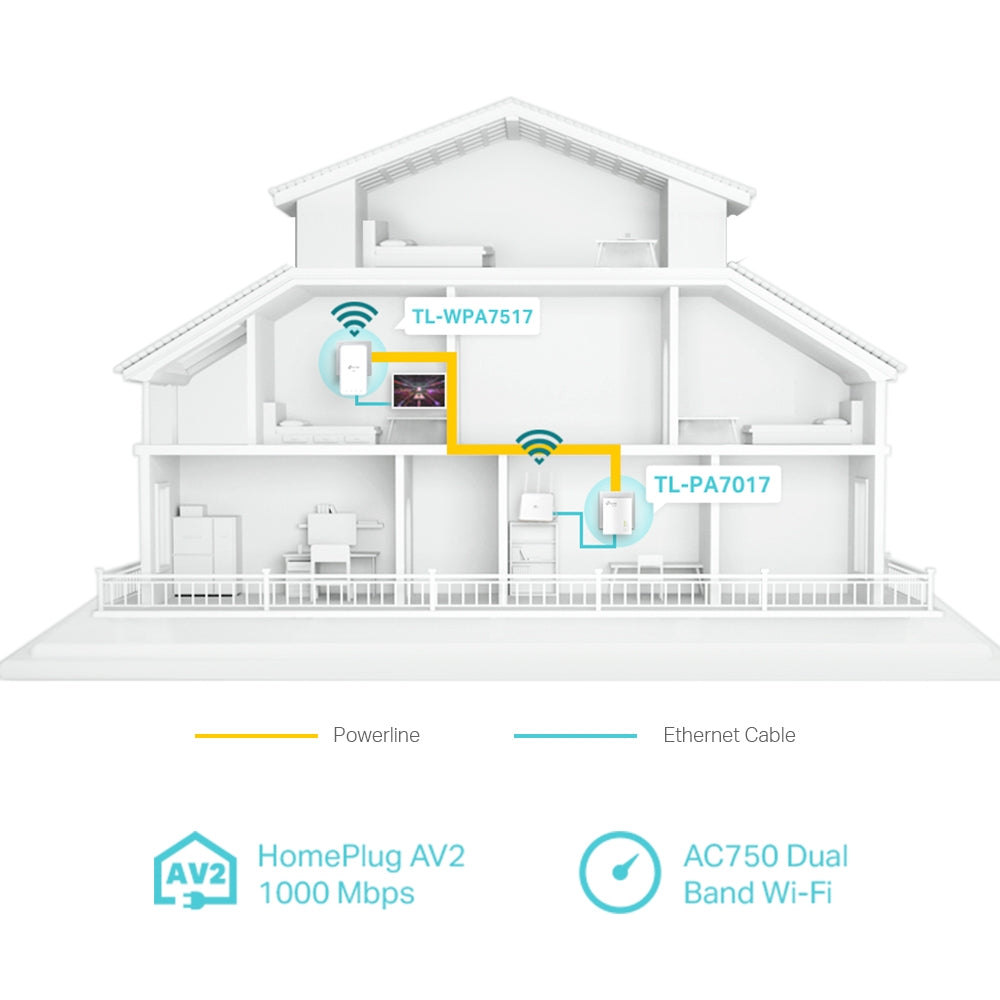

Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
- > No need for drilling or wire installation
- > Network passes through walls and floors
- > Expand coverage by adding more extenders
- > Powerline adapters must be deployed in sets of two or more and be connected to the same service panel
-
HomePlug AV2
1000Mbps
-
AC1200 Dual
Band Wi-Fi
- Powerline
- Ethernet Cable
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.‡
InternetRouterTL-PA7017TL-WPA7517
HOMEPLUG
AV1000
Up tp 300 Meters
AV1000
AC1200 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.†
- 867Mbps
on 5GHz - 300Mbps
on 2.4GHz
- Phone
- Pad
- Laptop
- Smart Camera
- Smart Plug
- Smart Blub
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.◇
-
EasyMesh Devices
(Router + Wi-Fi Extender)
-
Traditional Router
with Extender Wi-Fi
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home§
-
One WiFi Name
No more switching WiFi network names
One Tap for a Unified Network

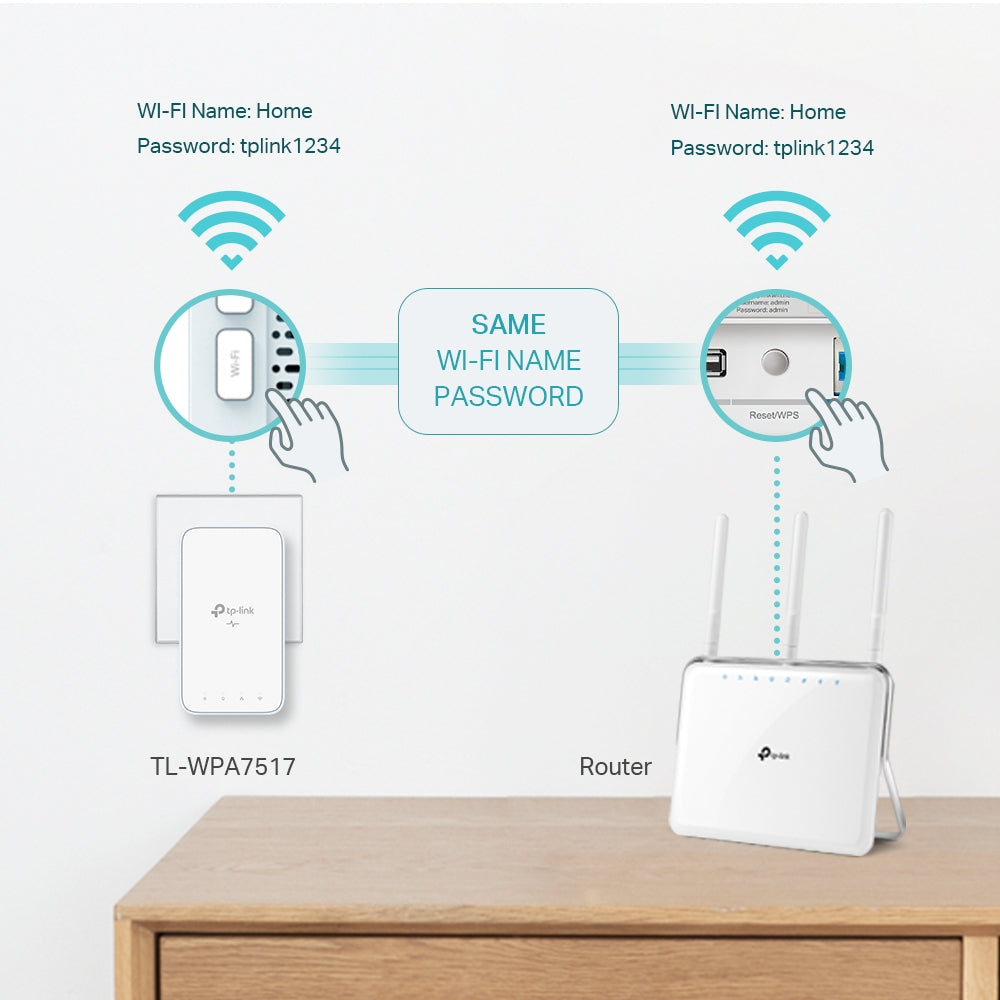

One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
AUTO-SYNC
WI-FI SETTINGSAdd one
WI-FI SETTINGSAdd one

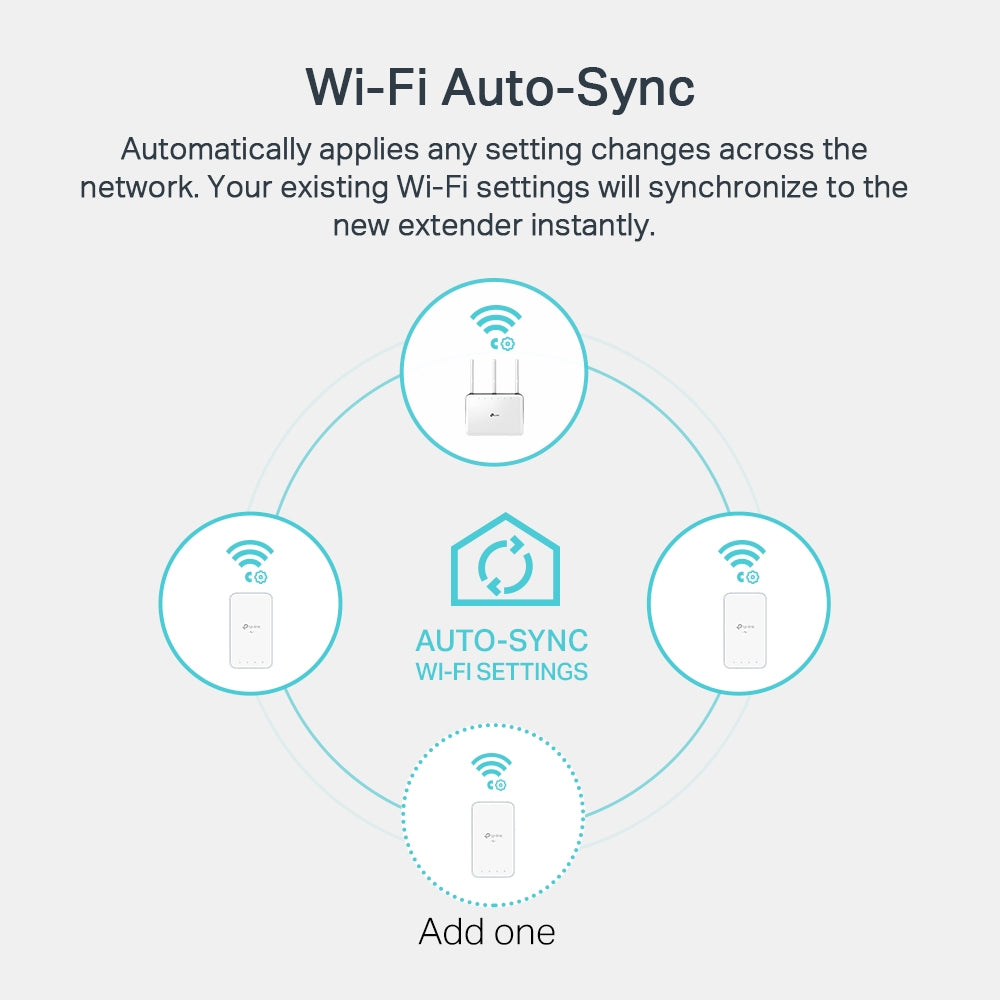

Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
WI-FI Name: Home
Password: tplink1234WI-FI Name: Home
Password: tplink1234SAME
WI-FI NAME
PASSWORDTL-WPA7517Router
Password: tplink1234WI-FI Name: Home
Password: tplink1234SAME
WI-FI NAME
PASSWORDTL-WPA7517Router
Plug and Play, No Configuration Required
-
1
Connect the TL-PA7017
to your router. -
2
Plug the TL-WPA7517 into a wall socket
in the room you need network. -
3
Let’s enjoy the wired or wireless
internet service.
Tip: Press the “Pair” button on each adapter to create a more secure network.

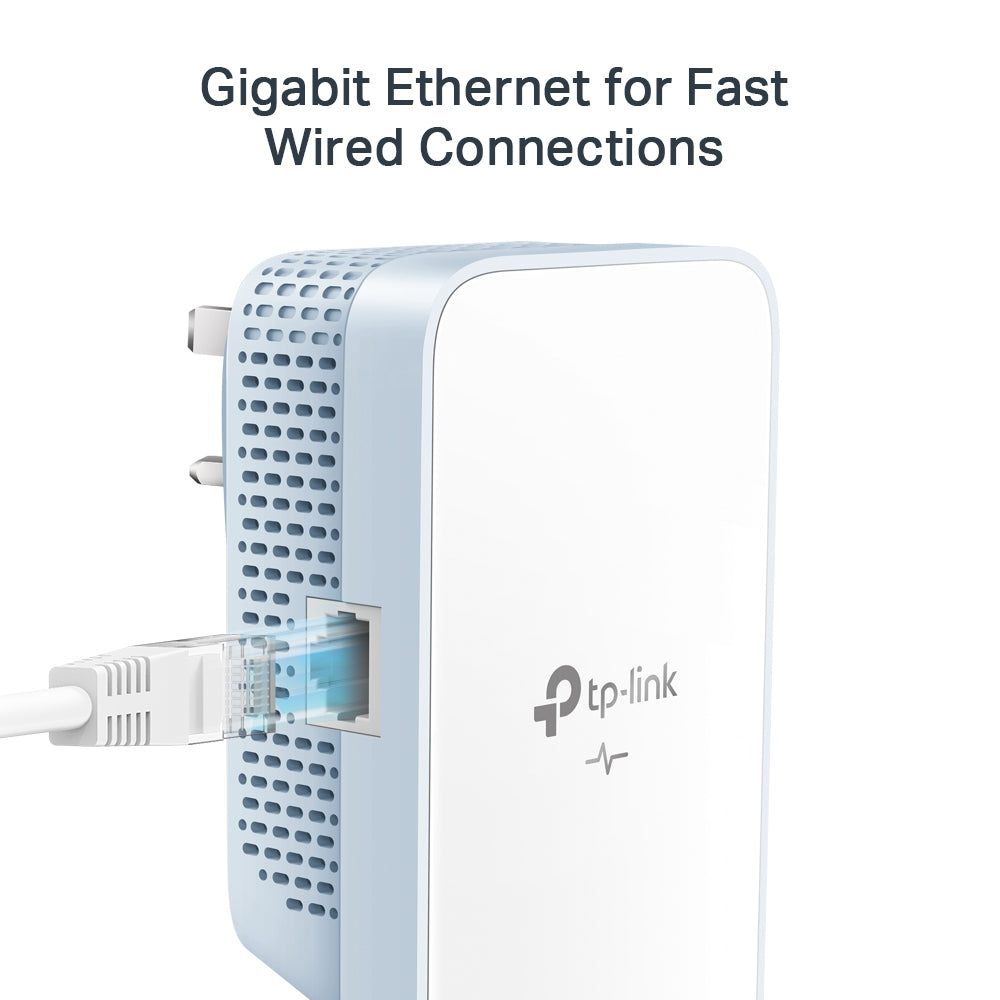

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.
Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
Scan the QR code to download TP-Link tpPLC app.
Appearance
Convenient AC PlugGigabit Ethernet PortsPair ButtonLED On/Off ButtonWi-Fi Button65 mm28.5 mm52 mm69.5 mm35 mm124.1 mm
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage per ft2 are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
‡Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline adapters separated between two or more service panels.
◇TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors.
§Smart Roaming is designed for devices that support the 802.11k/v standard.
*The Power Saving feature takes effect when your appliances are disconnected or turned off. Actual power saving data will vary in different network conditions and environments.
Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
