描述
| Product image |  |
|---|---|

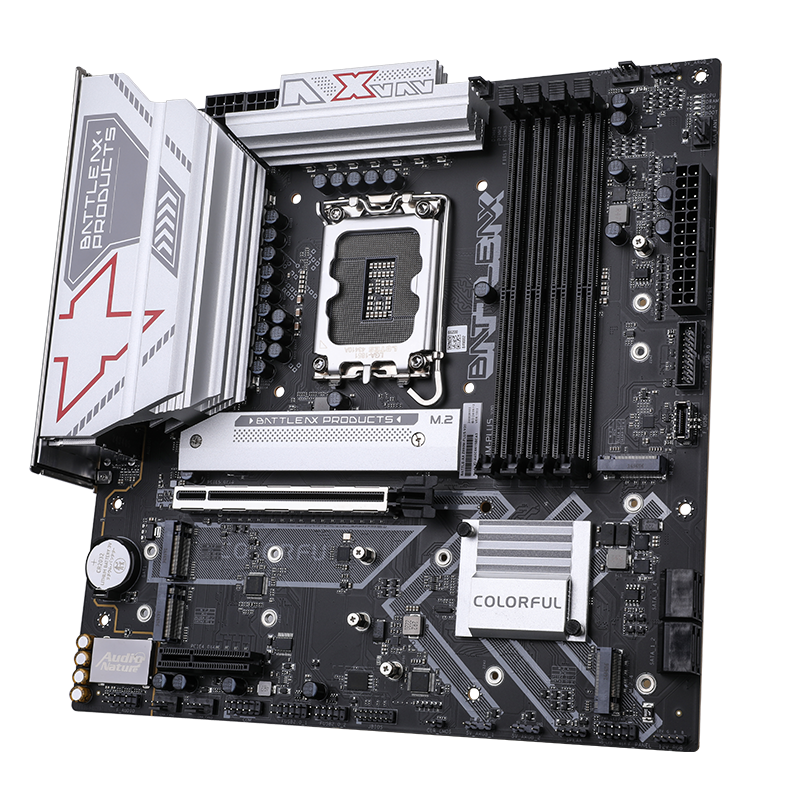

| Model | BATTLE-AX Z890M-PLUS V20 |
| Product Series | BATTLE-AX Series |
| Chipset | Intel Z890 |
| Processor | Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB) - Support DDR5-8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory - Support Intel® Extreme Memory Profile (XMP) memory technology - Support dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 5 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices - M.2_1 slot: support 2242/2260/2280 M.2 SSD (PCIe 5.0 x4, CPU channel) - M.2_2 slot: support 2242/2280/22110 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_3 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_4 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_5 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Board I/O | Rear I/O: - 4×USB 3.2 Gen 1 5Gbps Type-A interfaces - 2×USB 3.2 Gen 2 10Gbps Type-A interfaces - 1×USB 3.2 Gen 2 10Gbps Type-C interface - 1×USB 3.2 Gen 2x2 20Gbps Type-C interface - 1×DP 1.4 interface, Supports up to 8K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 3×Audio interfaces On board: - 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces - 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 10Gbps Type-C interface - 1×CPU fan pin - 3×System fan pins - 1×Water cooling pump pin - 3×5V 3-pin ARGB pins - 1×12V 4-pin RGB pin - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin - 1×COM port pin - 1×Clear CMOS jumper - 1×BIOS burner pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 245 x 245 mm |
