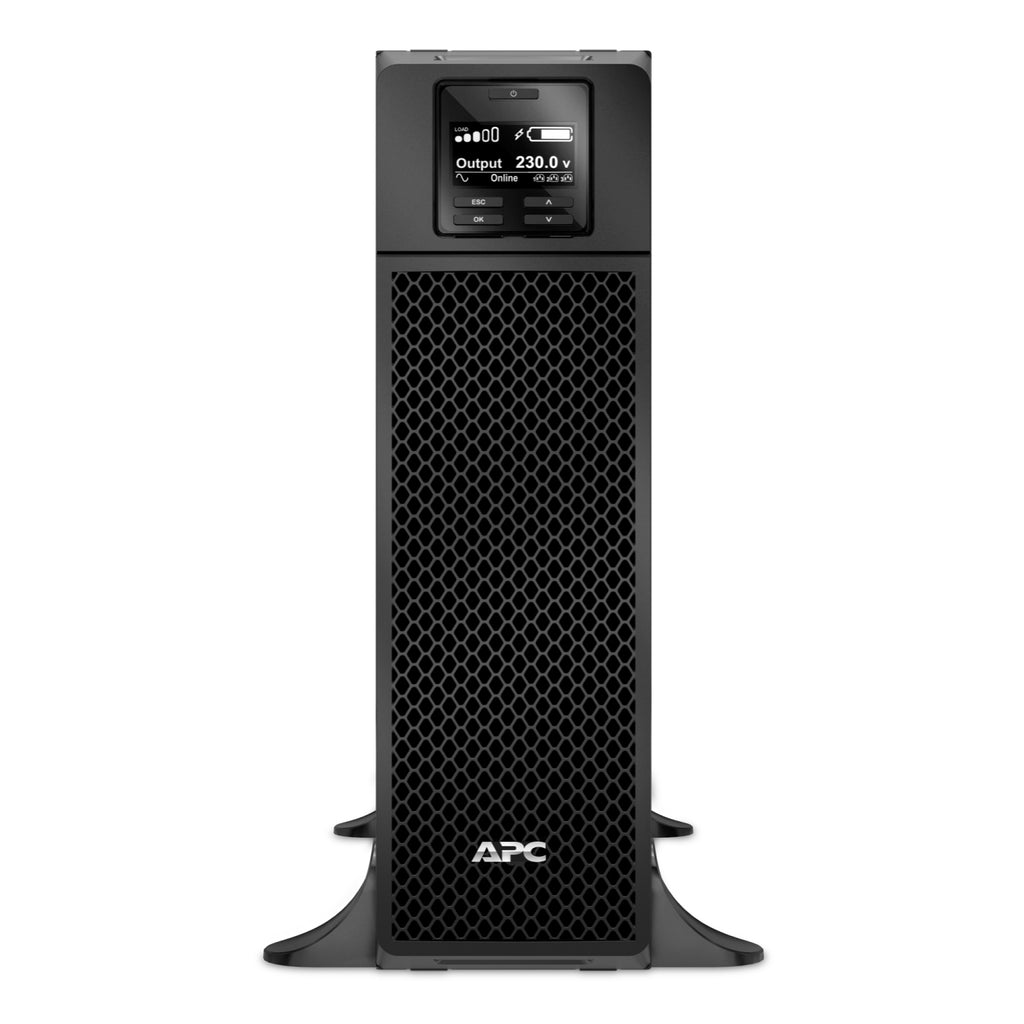

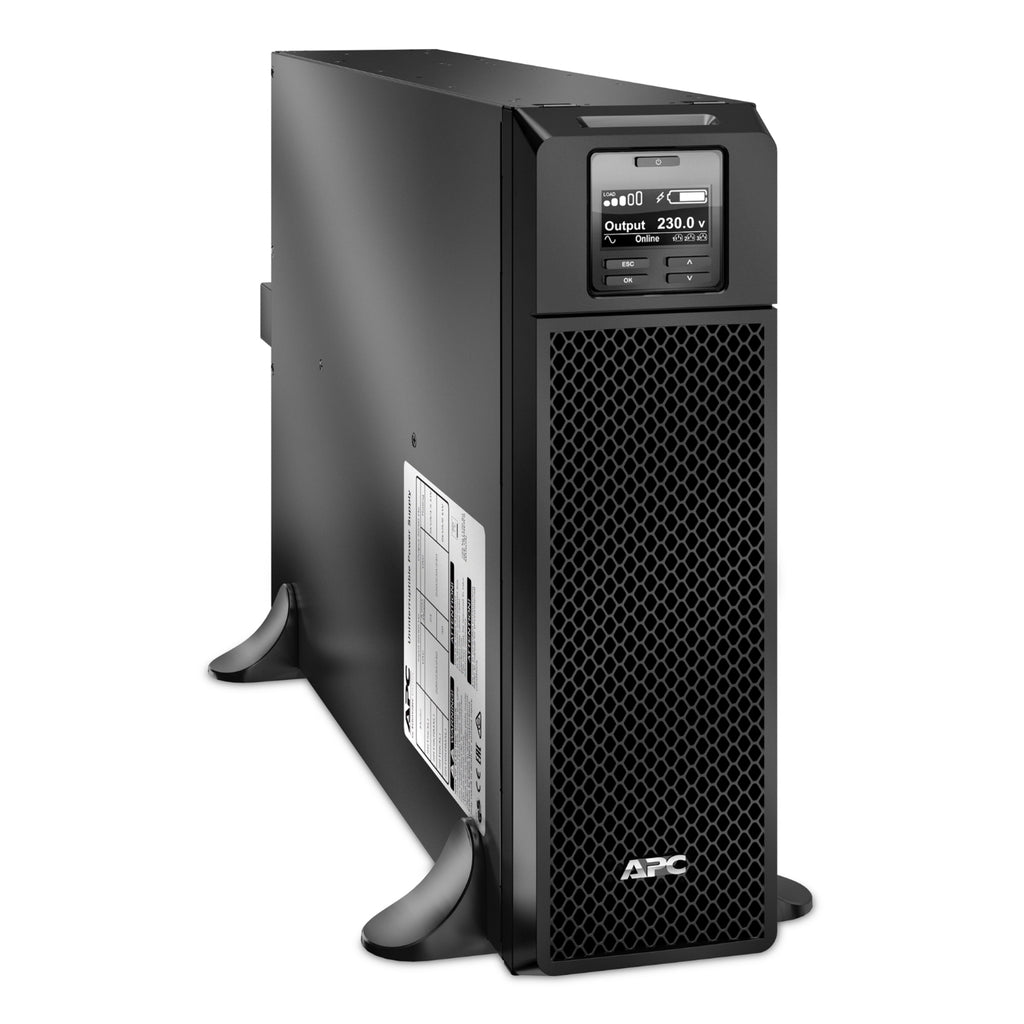

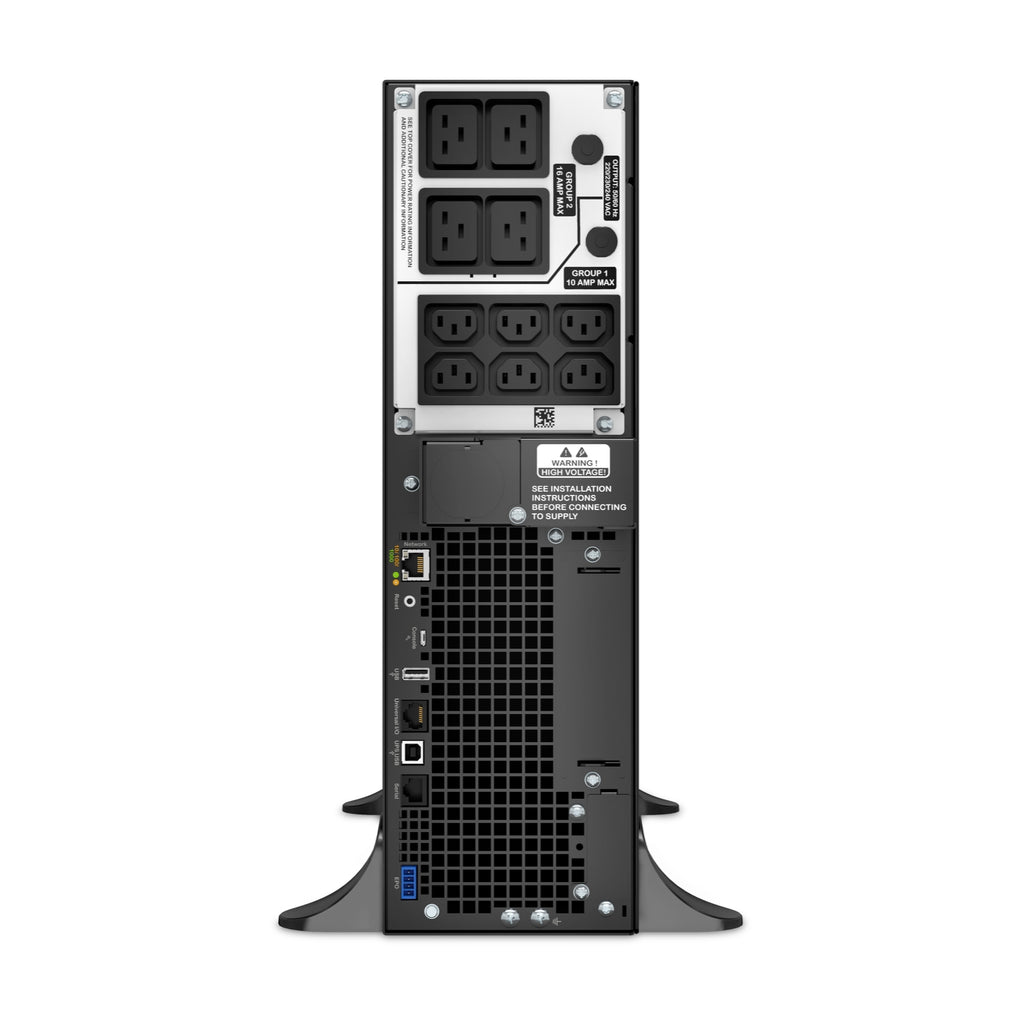

![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_d9cf2c9d-e569-40ac-8037-6407e5f43f1a_{width}x.jpg?v=1713504939)
![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_8c91f5e0-afa2-41aa-a04c-199dfe88de1e_{width}x.jpg?v=1713504967)
![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_b09a3e18-bbfb-40de-814a-68f8c8e1ddc5_{width}x.jpg?v=1713505005)
![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_d9cf2c9d-e569-40ac-8037-6407e5f43f1a_1024x.jpg?v=1713504939)
![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_8c91f5e0-afa2-41aa-a04c-199dfe88de1e_1024x.jpg?v=1713504967)
![[請詢價] APC Smart-UPS On-Line SRT5KXLI -4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model](http://www.jumbo-computer.com/cdn/shop/files/files_b09a3e18-bbfb-40de-814a-68f8c8e1ddc5_1024x.jpg?v=1713505005)
描述
Specifications
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
|---|---|
| Lead time | 通常貨源充足 |
|
Run time for load
WMin-max: 450-4500 W
|
3min 59s |
|---|---|
|
|
|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 伏 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| 额定功率 [W] | 4500 W |
| 额定功率 [VA] | 5000 VA |
| output connection type | 6 IEC 60320 C13 2 IEC Jumpers 4 IEC 60320 C19 |
| 設備提供 | 軟體隨附的 CD 通訊纜線 說明文件 CD 安裝指南 可拆式支撐腳 溫度探測 USB 纜線 保證書 Web/SNMP 管理卡 |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| 电池类型 | 封的電池 |
| 預安裝的電池 | 2 |
| 空電池槽 | 0 |
| 典型充電時間 | 1.5 小时 |
| RBC™ 數量 | 1 |
| 电源电压 | 192V |
| 電池充電功率（瓦特） | 560 W rated |
| 电池使用寿命 | 3…5 年 |
| Venturi Pipe | APCRBC140 |
| 可延伸運轉時間 | 1 |
| 拓樸 | 在線雙變換式 |
|---|---|
| product web sub-family | High density |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| 顏色 | 黑色 |
|---|---|
| 高度 | 43.2 cm |
| 寬度 | 13 cm |
| 深度 | 71.94 cm |
| 產品重量 | 54.43 kg |
| 安装位置 | 正面 |
| Mounting preference | No preference |
| 安裝類型 | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| 網絡頻率 | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 硬接線 3-線 （1PH+N+G） |
| 滿載時的效率 | 100...275 V adjustable (half load) |
| Maximum configurable power in VA | 5000 VA |
|---|---|
| 最大可配置功率 (W) | 4500 W |
| 輸出頻率（與市電同步） | 50/60 Hz +/- 3 Hz 與市電同步 |
| Wave type | 正弦波 |
| 谐波失真 | 小於 2% |
| 波峰系数 | 3 : 1 |
| bypass type | 內部旁路（自動與手動） |
| 產品証明 | CE EAC IRAM RCM VDE |
|---|---|
| 标识 | CE標志 |
| 標準 | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| 工作環境溫度 | 0…40 °C |
|---|---|
| 相對濕度 | 0…95 % 非凝结 |
| 運行高度 | 0...10000 ft |
| 存儲環境溫度 | -15…45 °C |
| 相對貯藏濕度 | 0…95 % 非凝结 |
| 存储高度 | 0.00…15240.00 m |
| 声响级别 | 55 dBA |
| 热消散 | 931 Btu/h |
| IP防護等級 | IP20 |
| 空闲槽 | 1 |
|---|---|
| 預安裝的 SmartSlot™ 卡 | Network management card 3 with environmental monitoring |
| alarm | Audible and visible alarms : prioritized by severity |
| 緊急關機 (EPO) | 是的 |
| 突波吸收能力 | 480 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 33 cm |
| Package 1 Width | 61 cm |
| Package 1 Length | 96 cm |
| Package 1 Weight | 63.6 kg |
| 保養 | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
