Features
VA Panel
Make sure the intensity and purity of colors when gaming.

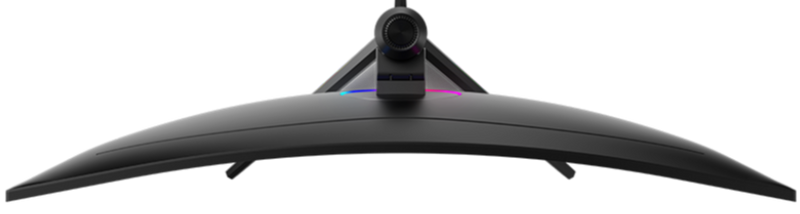

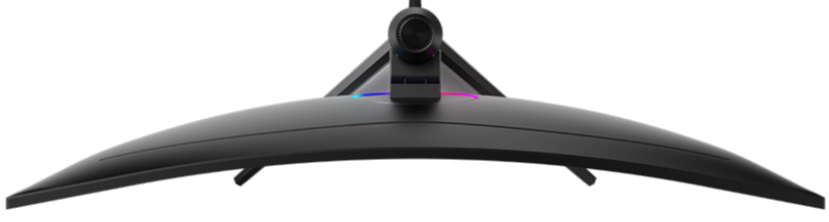

1500R
Immerse in a captivating experience with a 1500R curvature rate.
180Hz High Refresh Rate
Experience smooth gaming with a blazing- fast refresh rate, providing you with the upper hand in fast-moving games.
HDR Ready
Enhance eye-catching details through adjustments in contrast and shadows.
Console Mode
Optimized for seamless compatibility with gaming consoles such as PS5 and Xbox Series X/S.
Frameless design
With the narrow bezel, the monitor won't distract you in the heat of the moment.
Make sure the intensity and purity of colors when gaming.
1500R
Immerse in a captivating experience with a 1500R curvature rate.
180Hz High Refresh Rate
Experience smooth gaming with a blazing- fast refresh rate, providing you with the upper hand in fast-moving games.
HDR Ready
Enhance eye-catching details through adjustments in contrast and shadows.
Console Mode
Optimized for seamless compatibility with gaming consoles such as PS5 and Xbox Series X/S.
Frameless design
With the narrow bezel, the monitor won't distract you in the heat of the moment.
SPECIFICATIONS
Type / Size 34" (86.36 cm)
Active Display Area (mm) 797.22(H) x 333.72(V)
Curvature Curv e 1500R
Panel Type VA
Resolution 3440x1440 (UWQHD)
Pixel pitch 0.23175(H) x 0.23175(V)
Aspect Ratio 21:9
Brightness (nits) 300 (Ty p.)
Contrast Ratio 3000:1 (Ty p.)
DCR (Dynamic Contrast
Ratio) 100000000:1
Signal Frequency 68.47~268.2KHz(H) / 48~180Hz(V)
Refresh Rate 180Hz
Response Time 1ms(MPRT)
Dynamic Refresh Rate Adaptive-Sync
Activated Range 48~180Hz
HDR Support HDR Ready
Video interface 1 x Display Port 1.4a
2 x HDMI™ 2.0b(UWQHD@100Hz)
USB ports N/A
Audio interface 1 x Headphone out
View Angles 178°(H) / 178°(V)
ADOBE RGB / DCI-P3 /
sRGB 93% / 95% / 119%
Surface Treatment Anti-glare
Display Colors 1.07B , 10 bits (8 bits + FRC)
Power type External Adaptor 19V 3.42A
Power Input 100~240V, 50/60Hz
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Pivot) -5° ~ 5°
Adjustment (Height) 0 ~ 90 mm
Kensington Lock Y es
VESA Mounting 75 x 75 mm
Dimension (W x D x H) 808.60 x 269.97 x 513.97mm
808.60 x 119.67 x 363.95 mm (without stand)
Carton Dimension
(W x D x H)
WW carton: 948 x 210 x 487mm
Outer: 963 x 225 x 509mm
Weight (NW / GW) 6.95kg / 10.05kg
5.4kg(without stand)
Frameless Design Y es
PIP/PBP Function: Y es
Note
Display Port: 3440 x 1440 (Up to 180Hz)
HDMI 2.0: 3440 x 1440 (Up to 100Hz)
Adobe RGB, DCI-P3 and sRGB follow CIE1976 Standard
CONNECTIONS
1. 2 x HDMI™ 2.0b(UWQHD@100Hz)
2. Display Port 1.4a
3. Earphone out
4. DC-in
5. Kensington Lock
