| Radiator |
| Radiator Dimensions |
397 x 120 x 27 mm (L x W x H) |
| Radiator Material |
Aluminum |
|

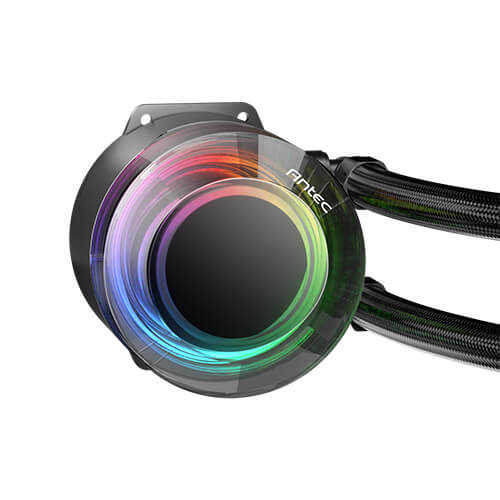

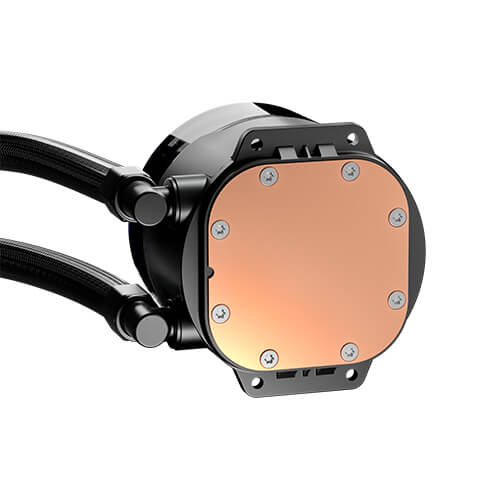

| Pump |
| Dimensions |
Φ67*48.5 mm |
| Rating Voltage |
DC 12 V |
| Minimum Startup Voltage |
≥5.0 V |
| Fan Speed |
2800±10% RPM |
| Rated Current |
0.25±20% A |
| Consumed Power |
3.0 W |
| Flow rate |
≥1300 mL/min |
| Water Pressure |
1.4 m |
| Operation Temperature |
-10°C ~ +60°C |
| Noise Level |
≤28 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
PUMP: 3-pin | LED: 3-pin |
|
| Fan |
| Dimensions |
120 x 120 x 25 mm |
| Bearing Type |
Hydraulic Bearing |
| LED Type |
Addressable RGB |
| Fan Speed |
800±200~1800±10% RPM |
| Airflow |
71.5 CFM (max.) |
| Air Pressure |
2.45 mmH₂O (max.) |
| Fan Noise Level |
31 dB(A) |
| Lifespan |
40,000 hours |
| Connector |
PH 2.0 7-pin (PWM+ARGB) |
| Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage |
FAN: DC 10.8-13.2 V | LED: DC 4.5-5.5 V |
| Rated Current |
FAN : 0.20-0.25 A | LED : 0.32 A |
|
| Socket Compatibility CPU |
Intel: LGA 115X/1200/1700/20XX/1851
AMD: AM3/AM4/AM5/TR4 |
| TDP |
≤ 280W |
| Warranty |
3 years |
| UPC# |
0-761345-40055-8 |
|
