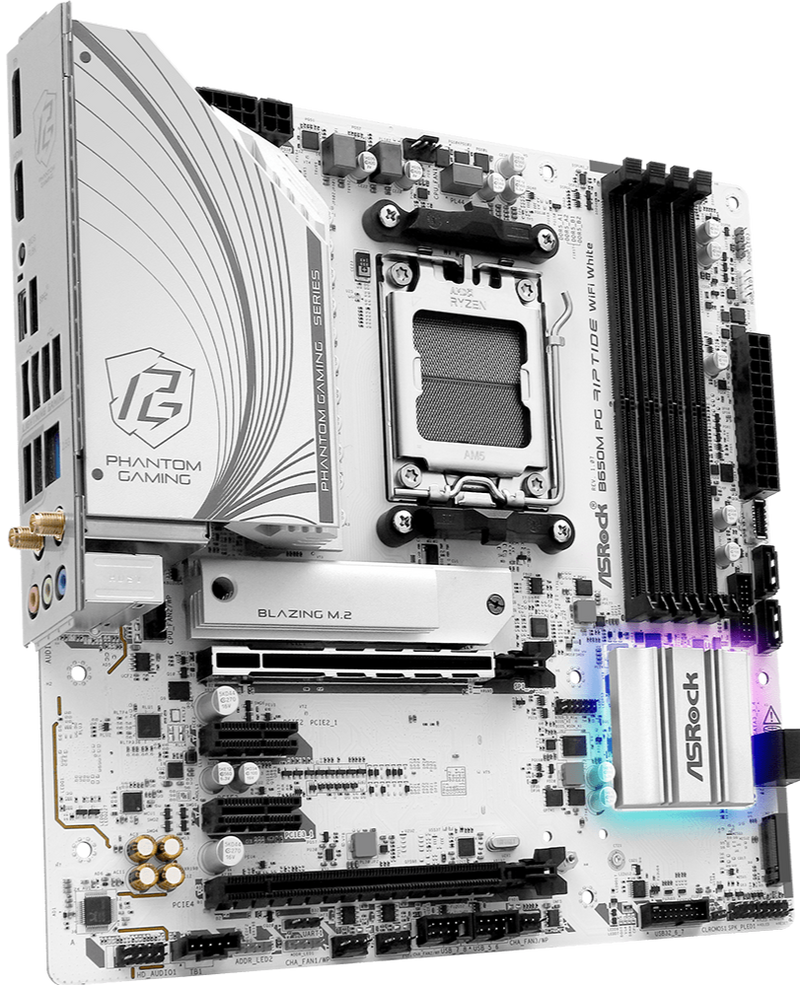

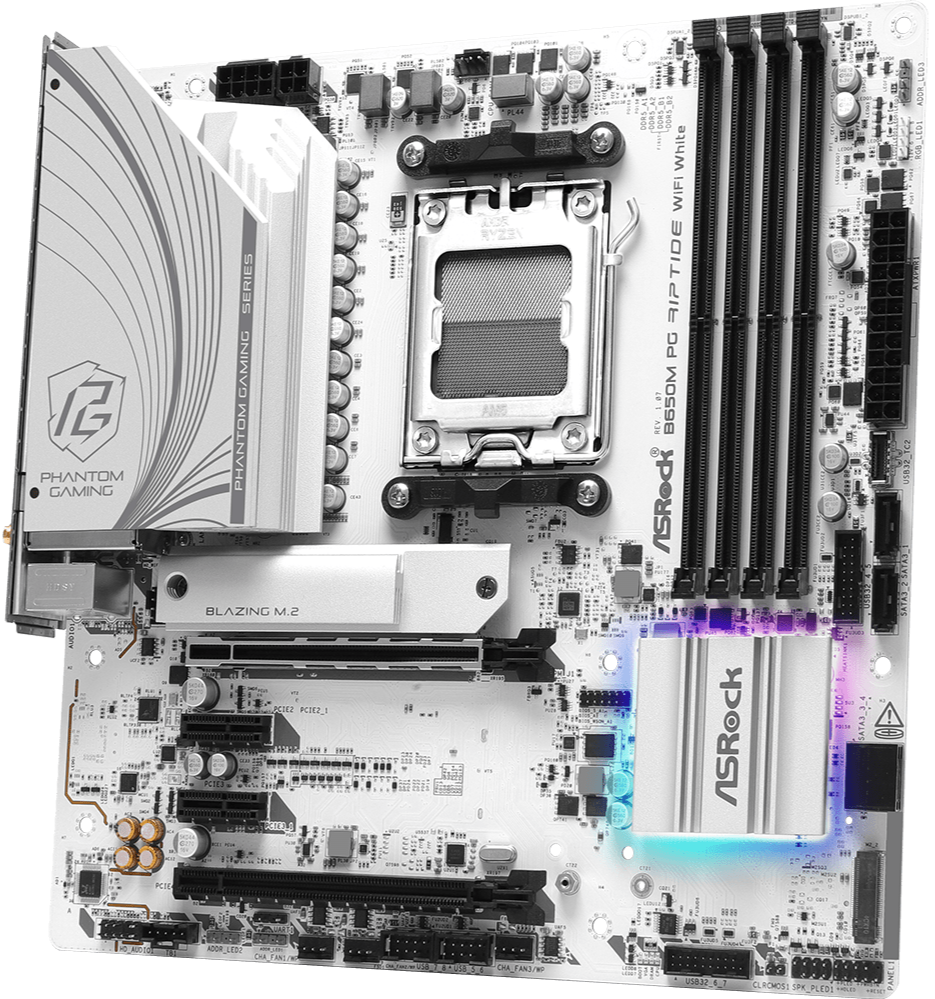

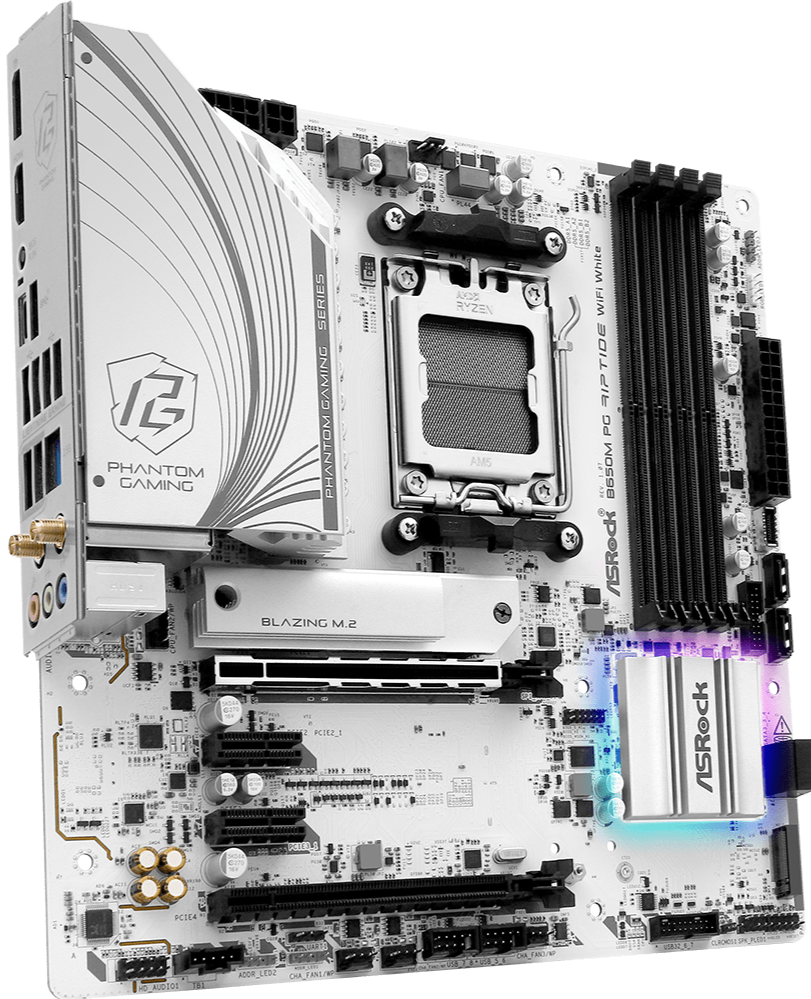

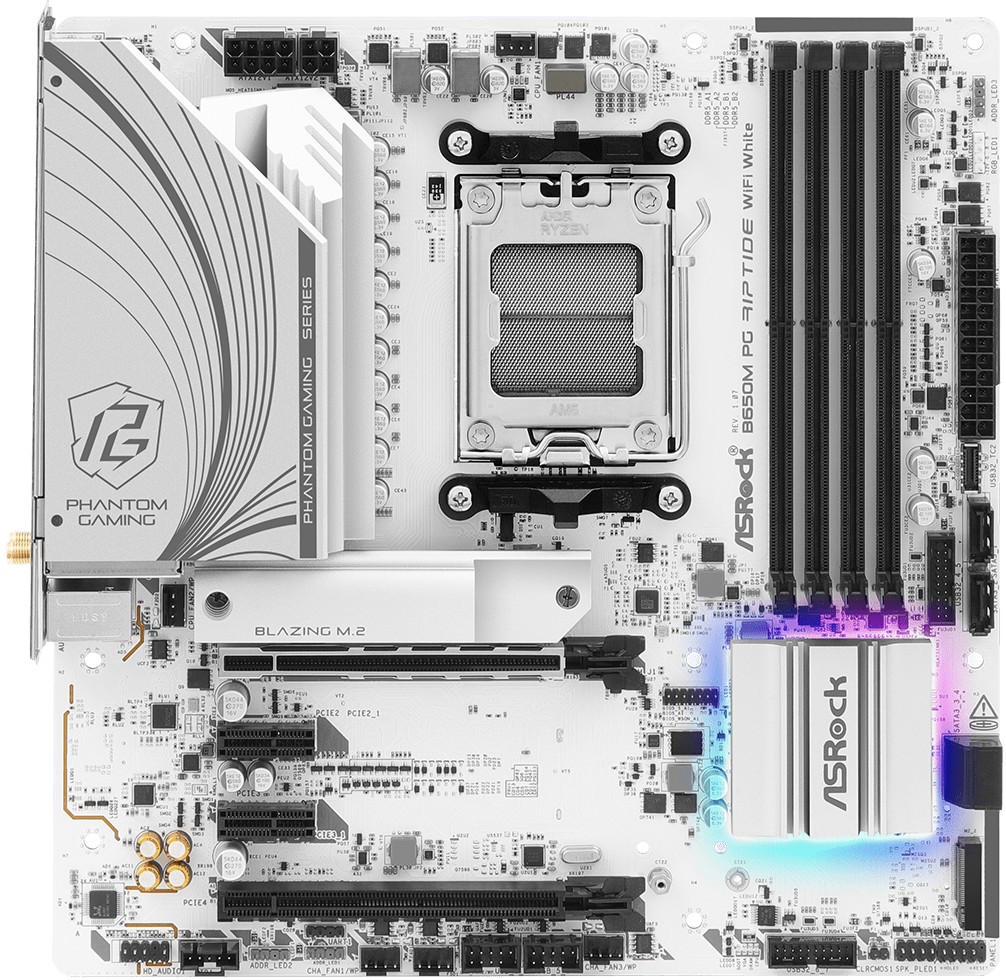

ASRock B650M PG Riptide WiFi White DDR5,Socket AM5 mATX Motherboard 白色主機板

Model

Brand	ASRock
Model	B650M PG RIPTIDE WIFI White

Supported CPU

CPU Socket Type	AM5
CPU Type	Supports AMD Ryzen 7000 Series Processors

Chipsets

Chipset	AMD B650

Memory

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered
Memory Feature	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

Expansion Slots

PCI Express 4.0 x16	1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
PCI Express x1	2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* * Supports NVMe SSD as boot disks

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10

Onboard Audio

Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
Wireless LAN	802.11ax Wi-Fi 6E Module

Rear Panel Ports

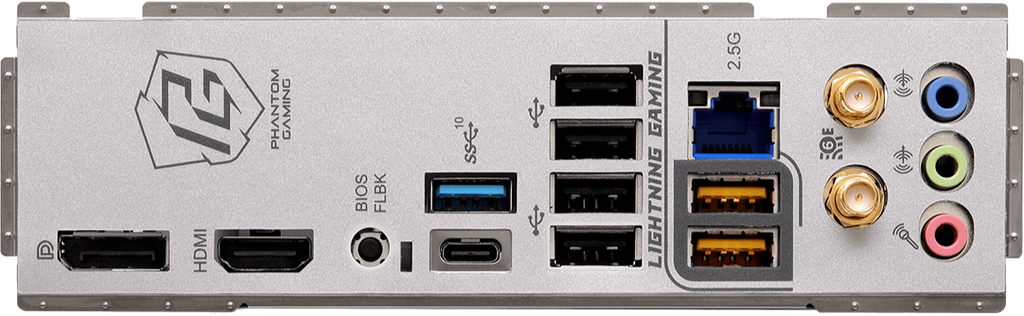

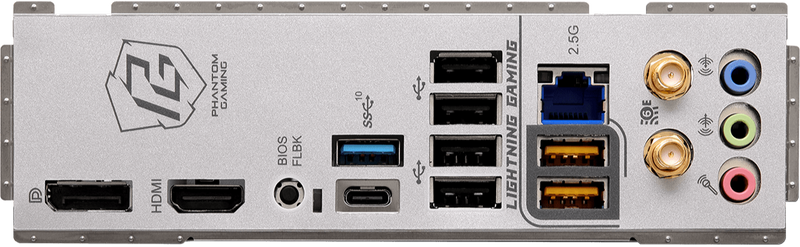

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.) 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors

Onboard USB

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header

Other Connectors

1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x 4 pin 12V Power Connector

Windows 11 Compatibility

Windows 11	Supported

Features

Features	Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

Packaging

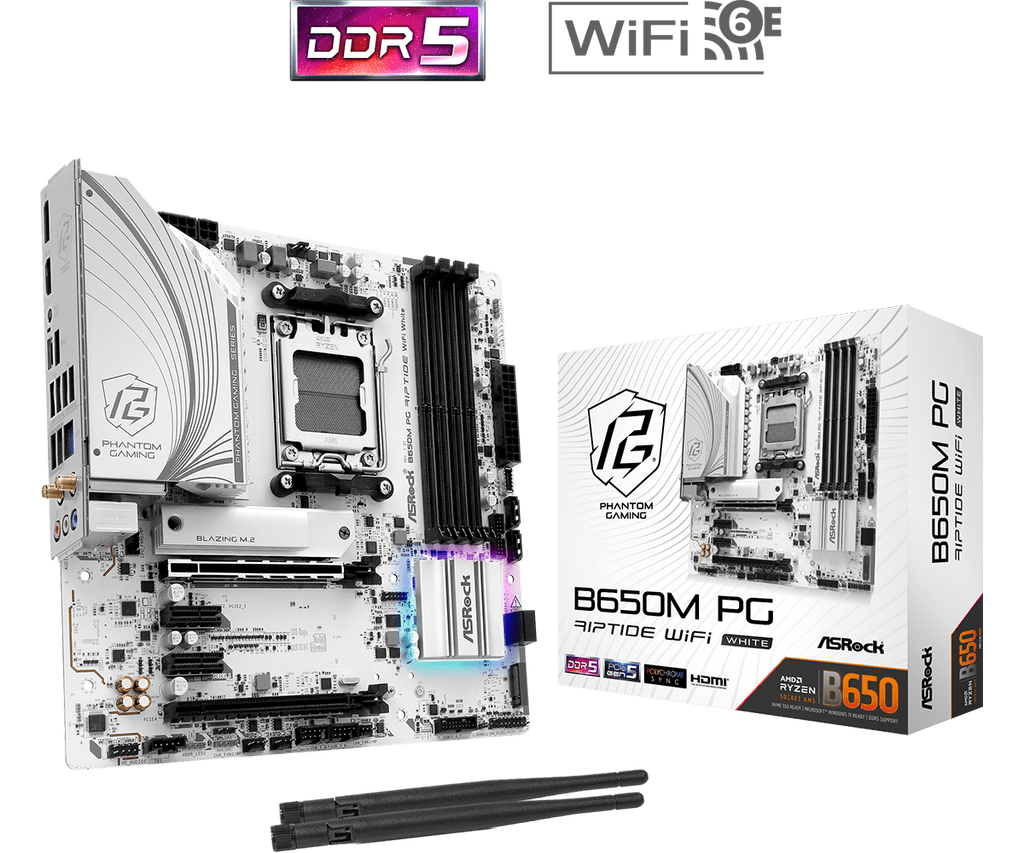

Package Contents	1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
