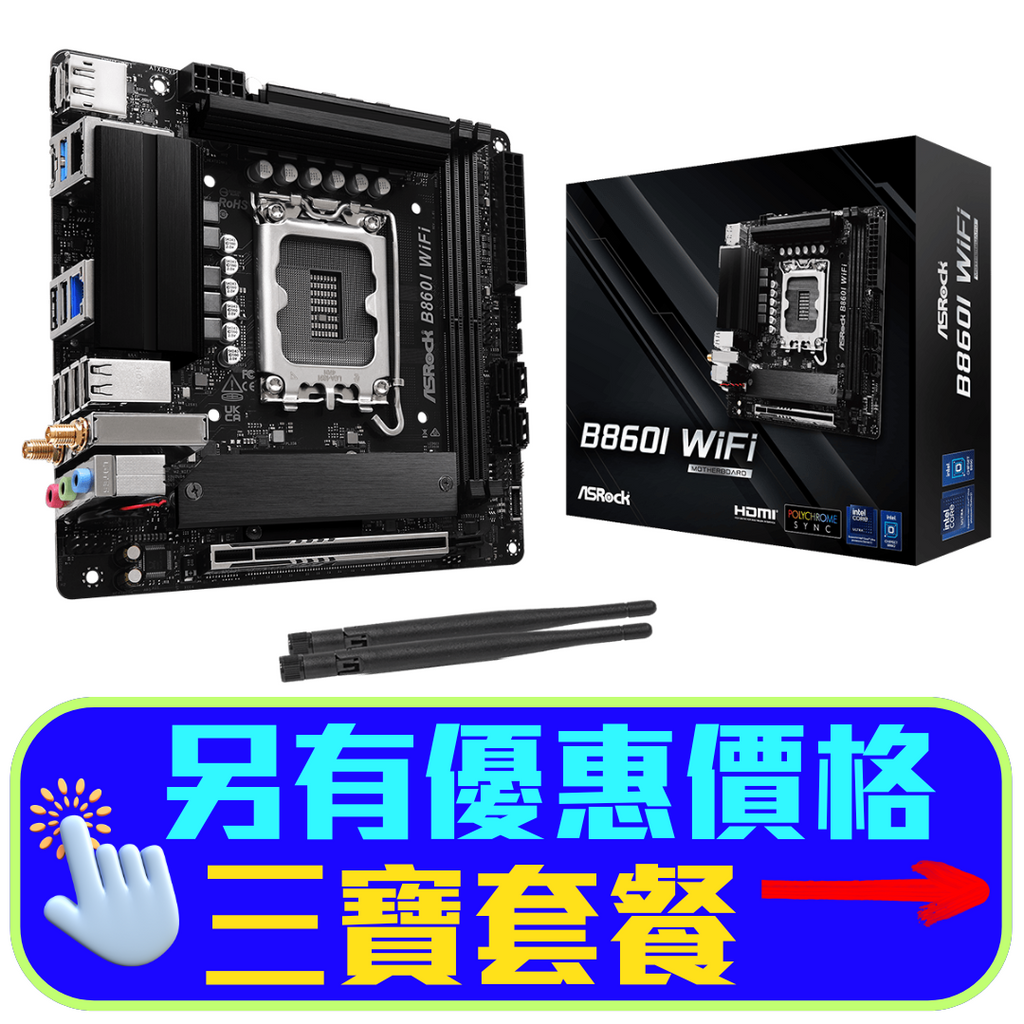

ASRock B860I WiFi DDR5,LGA 1851 Mini-ITX Motherboard

• Exclusive Features
  Excellent Productivity-
  PCIe Gen5 (Graphics, M.2)
  - Dual-channel DDR5Rock
  -solid durability-
  8+1+1+1+1 phase power supply, VCore+GT SPS+VCCSAUltra
  -fast connectivity-
  2.5 Gigabit LAN, 802.11axe Wi-Fi 6E moduleEZ
  Update
  - ASRock Auto Driver Installer
• processor
  - Supports Intel ^® Core™ Ultra Processor (Series 2) (LGA1851)
  - Supports Intel ^® Hybrid Technology
  - Supports Intel ^® Turbo Boost Max 3.0 Technology
  - Supports Intel ^® Thermal Velocity Boost (TVB)
  - Supports Intel ^® Adaptive Boost Technology (ABT)
  - Embedded NPU for dedicated AI acceleration
• chip
  - Intel ^® B860
• Memory
  - Dual-channel DDR5 memory technology
  - 2 x DDR5 slots
  - Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC) *
  - Supports Clocked Unbuffered DIMM (CUDIMM)
  - Max. system memory capacity: 128GB
  - Supports Intel ^® Extreme Memory Profile (XMP) 3.0 technologyx



  * 1DPC 1R up to 8933+ MHz (OC), 6400 MHz native. 1DPC 2R up to 6800+ MHz (OC), 6400 MHz native.
• BIOS
  - 256Mb AMI UEFI Legal BIOS, supports graphical interface
• Built-in display
  - Intel ^® Xe LPG Graphics Architecture-
  1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, maximum resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DCS (compression technology), supports HDCP 2.3, maximum resolution up to 8K 60Hz / 5K 120Hz



  * Only processors with built-in GPU capabilities support Intel ^® UHD Graphics built-in visual enhancements and display output.
• Sound
  - 7.1 channel high definition audio (Realtek ALC897 audio codec)
  - Nahimic Audio
• network
  1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  - Supports Dragon 2.5 Gigabit LAN Software
  - Fully intelligent automatic bandwidth optimization
  - Visual friendly UI interface
  - Visual network usage statistics
  - Built-in bandwidth optimization for gaming, browsing and streaming modes
  - User-defined priority control

  1 x Gigabit LAN 10/100/1000 Mb/s (Intel ^® I219V)

Wireless network- 802.11axe Wi-Fi 6E module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports dual-band 2x2 and extended 6GHz band *
- Dual antennas support 2 (transmit) x 2 (receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO

* The Wi-Fi 6E module only supports Microsoft ^® Windows ^® 11 operating system. The availability of the 6GHz band will depend on the regulatory status of each country and region. This feature will be enabled via Windows ^® Update and Software Update (in supported countries).
6E function requires a 6GHz compatible routerExpansion SlotCPU:
- 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode *
Chipset:
- 1 x vertical M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module

* Support NVMe SSD bootstoreCPU:
- 1 x Blazing M.2 slot (M2_1, Key M), supports 2280-type PCIe Gen5x4 (128 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 slot (M2_2, Key M), supports 2280-type PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s ports

* Support Intel ^® Volume Management Device (VMD)
Support NVMe SSD bootRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSBCPU:
- 1 x USB 3.2 Gen2x2 Type-C (rear)
Chipset:
- 1 x USB 3.2 Gen2 Type-C (front)
- 1 x USB 3.2 Gen2 Type-A (rear)
- 4 x USB 3.2 Gen1 (2 front, 2 rear)
- 6 x USB 2.0 (2 front, 4 rear)

* All USB supports ESD protectionConnectors- 1 x addressable LED header *
- 1 x CPU fan connector (4-pin) (Smart fan speed control) **
- 1 x chassis fan connector (4-pin) (Smart fan speed control) **
- 1 x AIO pump fan connector (4-pin) (Smart fan speed control) ***
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (High-density power port)
- 1 x Front panel audio port
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
- 1 x Front Type C USB 3.2 Gen2 header (10 Gb/s)

* Supports up to 5V/3A, 15W LED strip

** CPU_FAN and CHA_FAN1 support fan power up to 2A (24W).

*** AIO_PUMP supports fan power up to 3A (36W).
AIO_PUMP can automatically detect 3-pin or 4-pin fans.Back panel input/output interface- 2 x Antenna Ports-
1 x HDMI Port-
1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port-
2 x USB 3.2 Gen1
Ports- 4 x USB 2.0 Ports-
2 x RJ-45 LAN Ports-
HD Audio Jack: Line-in/ Front Speaker/ MicrophoneSoftware and UEFISoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5 Gigabit LAN Software
- ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorite UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

* These apps can be downloaded from ASRock APP Shop.appendix- 1 x I/O shield-
2 x SATA data cables-
2 x ASRock WiFi 2.4/5/6 GHz antennas-
2 x M.2 slot screwsSpecification- Mini-ITX form factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cmoperating system- Support Microsoft ^® Windows 11 64-bit
