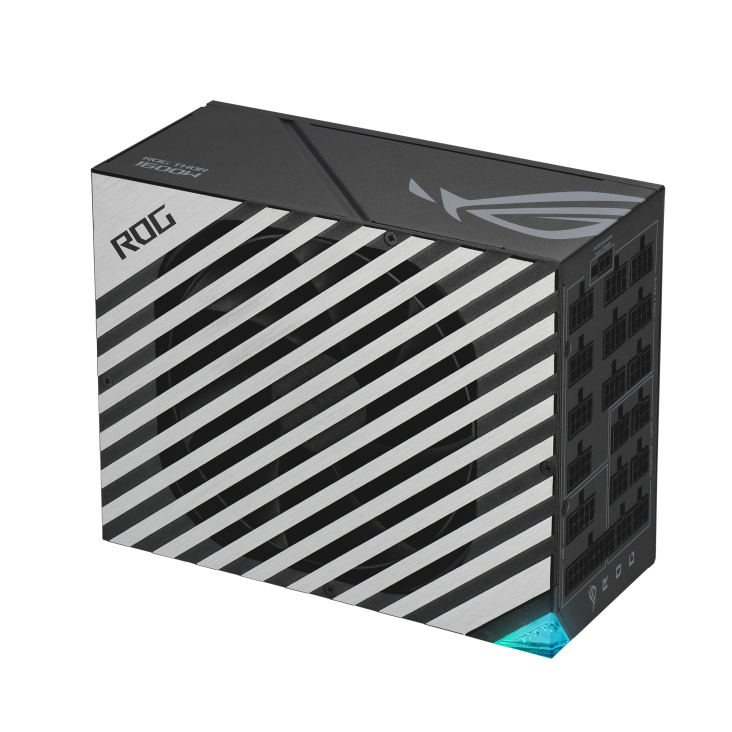

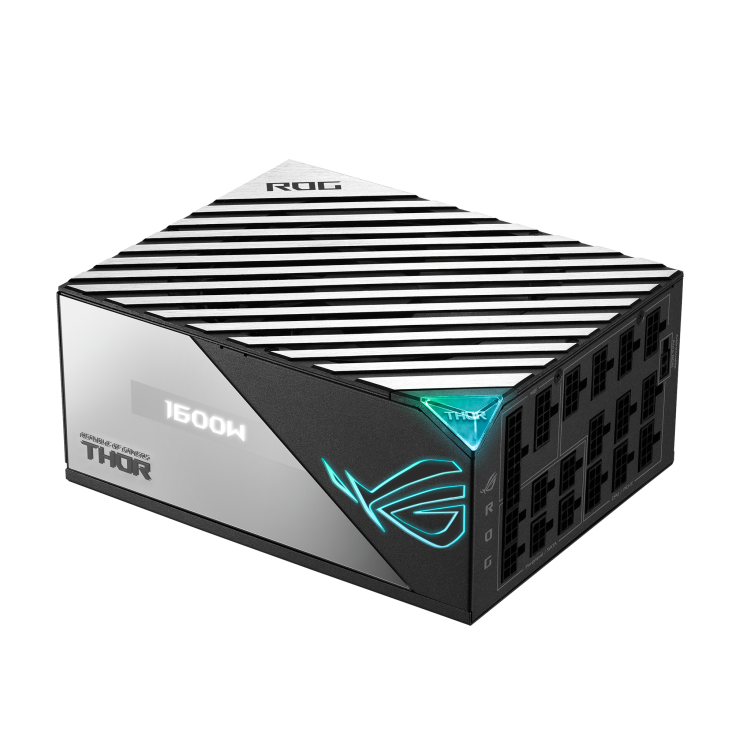

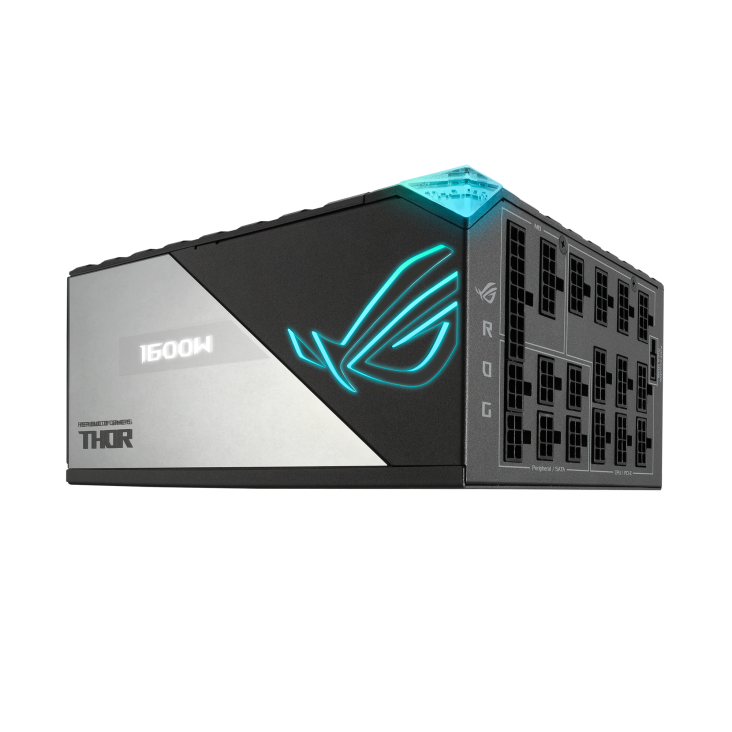

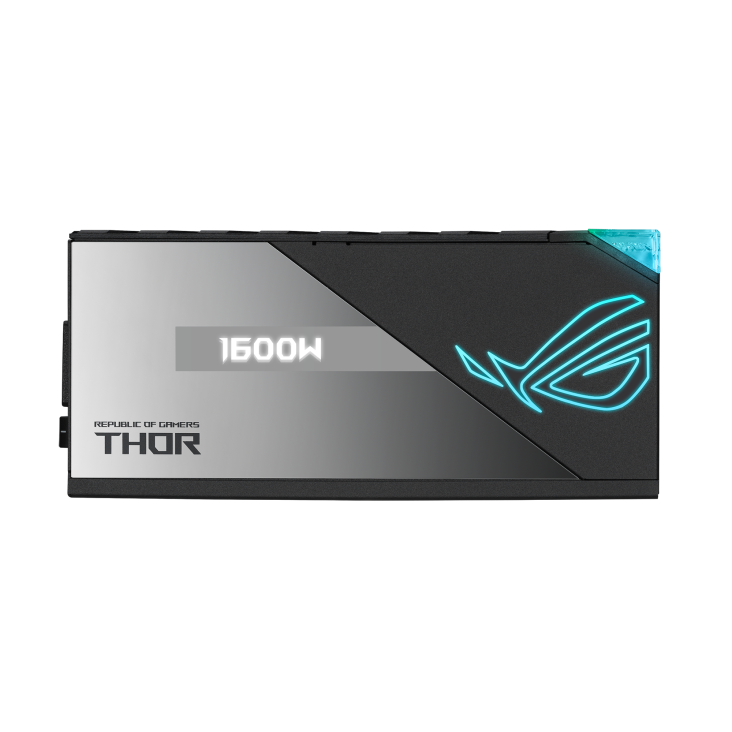

ASUS ROG-THOR-1600T-GAMING
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Titanium
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 133.3A 0.3A 3A
Combined Load
100W 100W 1600W 3.6W 15W
Total Output
1600W (115V-240V). 1300W (100V-115V)

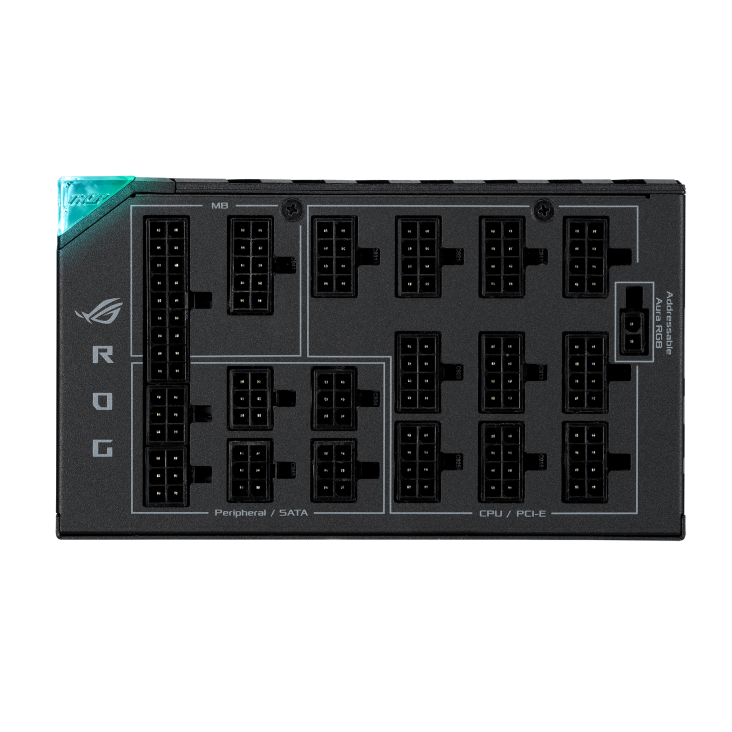

Connectors
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6
Package Contents
Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) 16-pin PCI-E Cable x 1 (675mm) PCI-E 1-to-1 Cable x 6 (675mm) PCI-E 1-to-2 Cable x 2 (675+75mm) SATA 1-to-4 Cable x 3 (400+120+120+120mm) Peripheral 1-to-2 Cable x3 (450+120mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1
Weight
2.69kg (single PSU)
AURA SYNC
ARGB
0dB Fan Button
No
Cybenetics Noise Level Certification
A++
