描述
主要特點
- 強大效能：採用第 4 代 Intel Xeon 可擴充處理器，專為從雲端到網路，再到智慧邊緣的強大資料基礎設施而設計
- 支援 AI 和 HPC 工作負載：最高支援 8 個雙插槽主動或被動式 GPU、NVIDIA NVLink® 橋接器和 NVIDIA Bluefield DPU 以提升效能
- 節能系統設計：獨立的 CPU 和 GPU 氣流通道可實現最佳散熱效能，並支援多達四個 3000W Titanium 備援電源，確保運作不間斷
- 散熱解決方案：專為基於 CPU TDP 的增強型氣冷而設計，適用於多種工作負載
- 縱向擴展的儲存和擴充設計：前面板共有 8 個托架，結合三模 NVMe/SATA/SAS 硬碟和 11 個 PCIe 5.0 插槽，可因應更高的頻寬和系統升級需求
- 彈性網路模組設計：後面板可選購 OCP 3.0 模組和 PCIe 5.0 插槽，以實現更快的連線速度
- 增強型 IT 基礎設施管理：ASUS ASMB11-iKVM 遠端控制，搭配 ASPEED AST2600、ASUS Control Center IT 管理軟體和硬體層級信任根解決方案
-
Processor / System Bus
2 x Socket
4th Intel® Xeon® Processor Scalable Family (Up to 350W)
5th Intel® Xeon® Processor Scalable Family (Up to 350W) -
Memory
Total Slots:
32 (8 channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 3TB per CPU socket
Memory Type:
4th: DDR5 4400 RDIMM/ 3DS RDIMM (2DPC)
5th: DDR5 4400 RDIMM/ 3DS RDIMM (2DPC)
Memory Size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
* Refer to support page for more information -
Expansion Slots
8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards
SKU-1 (3PCIe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
1 x PCIe slot (Gen5 x8 link) for NIC
SKU-2 (2PCIe + 2NVMe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
SKU-3 (1PCIe + 1OCP3.0 + 2NVMe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x OCP3.0 NIC socket (Gen5 x16 link) -
Storage
Optional Kits:
-Broadcom MegaRAID 9560-16i
-Broadcom MegaRAID 9540-8i
-ASUS PIKE II 3008 8-port HBA Card
-ASUS PIKE II 3108 8-port HW RAID Card
-
Drive Bays
8 x 3.5"/2.5" Front Hot-swap Storage Bays
(Backplane supports up to 8 x NVMe*/SATA/SAS**)
*NVMe support on selected SKUs
**SAS support requires an optional HBA/RAID card
1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link) -
Networking
2 x 10GbE LAN ports (RJ45, X710-AT2)
or 2 x Gigabit LAN ports (RJ45, I350-AM2)
1 x Management Port -
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/gpu -

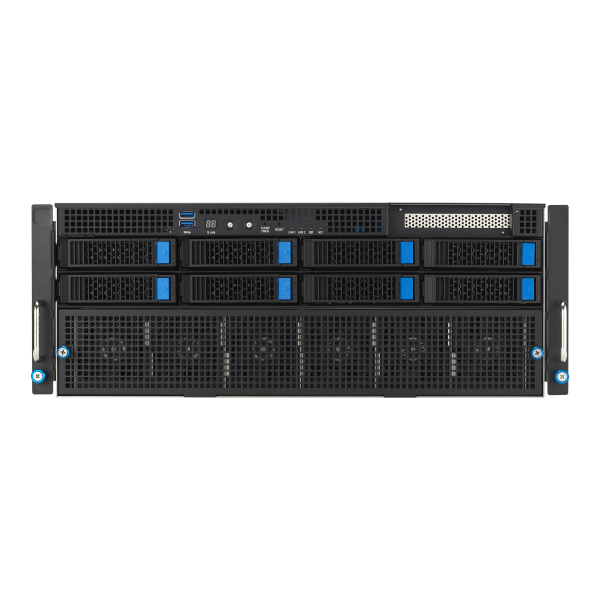

Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
-

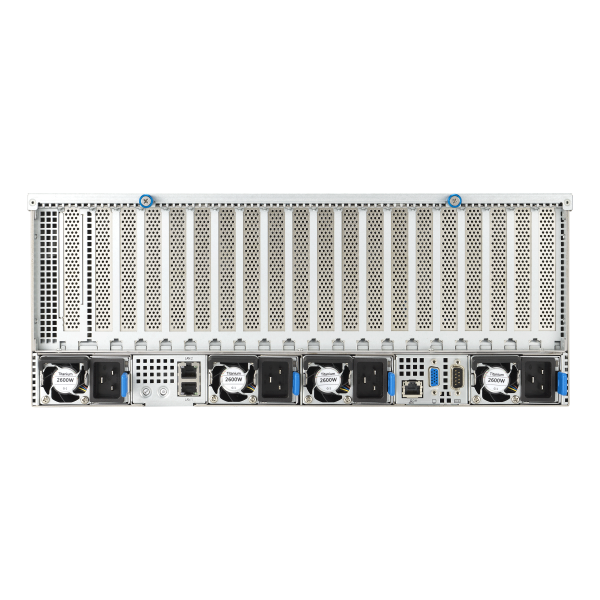

Rear I/O Ports
1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45) -
Switch/LED
Front :
1 x Power Button w/LED
1 x Location Button w/LED
1 x Message LED
1 x Q-Code/Port 80 LED
1 x Clear CMOS Switch
1 x Reset Switch
1 x M.2 LED
Rear :
1 x Power Button w/LED
1 x Location Button w/LED -
OS Support
Please find the latest OS support from https://servers.asus.com/support/os -
Management Solution
ASUS Control Center Enterprise (in-band)
ASMB11-iKVM for (out-of-band/BMC AST2600) -
Regulatory Compliance
BSMI, CB, CE, FCC(Class A), RCM -
Dimensions
800mm x 440mm x 174.5 mm -
Form Factor
4U -
Weight
Net Weight: 27 Kg.
Gross Weight: 52 Kg. -
Power Supply
2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
2+1 Redundant 3000W 80 PLUS Titanium Power Supply
Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz -
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
