描述
-
Processor / System Bus
1 x Socket SP3 (LGA 4094) Option 1
AMD EPYC™ 7002 Series
AMD EPYC™ 7003 Series
-
Memory
Total Slots : 16 (8-channel)
Capacity : Maximum up to 2048GB RDIMM
Memory Type :
Single Channel DDR4 3200/2933/2666 RDIMM
Single Channel 3200/2933/2666 LRDIMM
Single Channel 3200/2933/2666 LR-DIMM 3DS
Memory Size :
* Refer to support page for more information -
Expansion Slots
Slot Location 1 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied
Slot Location 4 : PCI-E x8 (Gen3 X8 Link), Auto turn off if slot 3 is occupied
Slot Location 5 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x24 -
Form Factor
EEB (12"x13", 305mm x 330mm) -
Storage
SATA Controller :
CPU Integrated
4 x SATA3 6Gb/s ports
12 x SATA3 6Gb/s ports
SATA Controller :
CPU Integrated
1 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode -
Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN -
Graphic
Aspeed AST2500 with 64MB VRAM -
On Board I/O
1 x USB 3.0 pin header
1 x USB 3.0 ports
1 x Micro SD Card Slot
1 x Serial Port Header
1 x VGA Header
8 x Fan Header , 4pin
1 x TPM header
1 x Chassis Intruder -

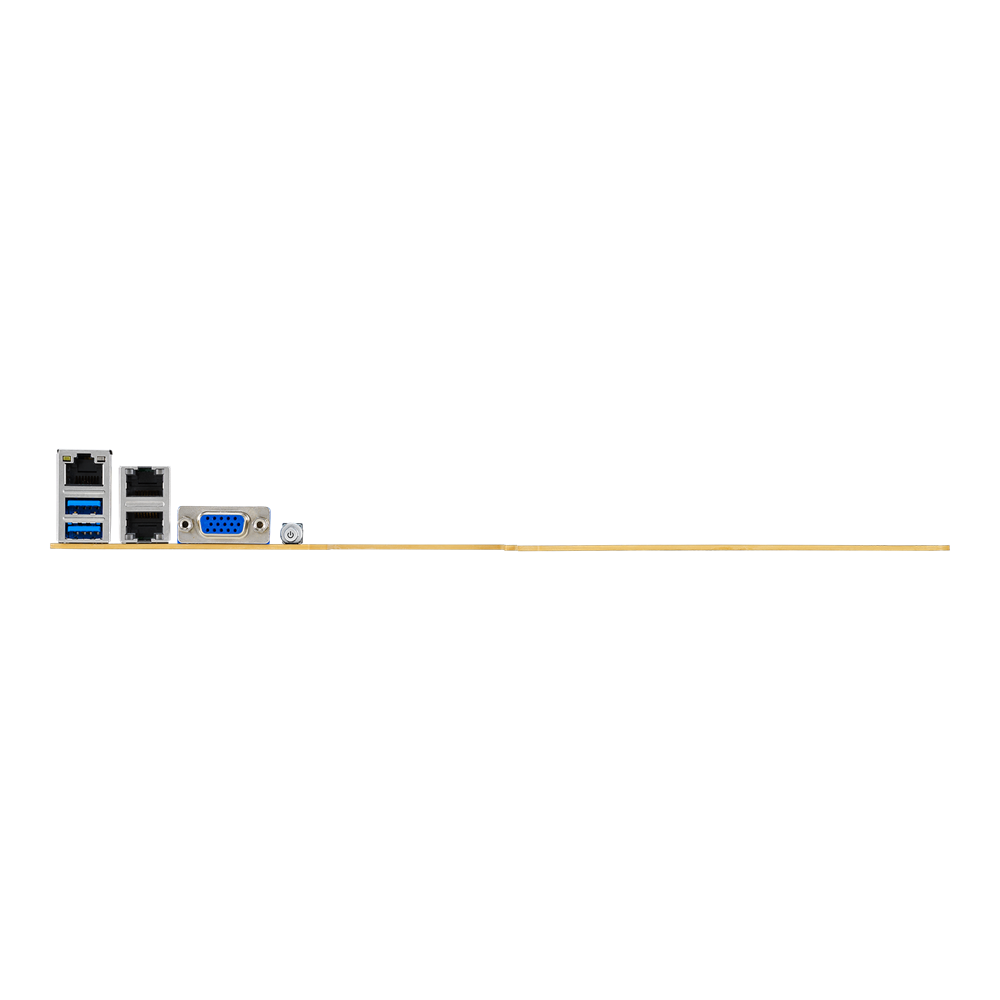

Back I/O Ports
2 x USB3.0 ports
1 x VGAport
2 x RJ 45 GbELANports
1 x RJ 45 Mgmt LAN port -
Management Solution
ASUS Control Center Enterprise (in-band)
ASMB9-iKVM (out-of-band/BMC AST2500) -
Weight
Net Weight : 1.385 Kg
Gross Weight : 2.505 Kg -
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) -
Note
*Slot location 5~6 could support PCIe Gen4 expansion cards.
