ASUS
價格:
HK$3,580.00

描述

  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Pentium® Processors
    Intel® Xeon® E processors

  • Core Logic

    Intel® C252 Chipset

  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200/2933/2666 UDIMM
    Memory Size :
    32GB, 16GB, 8GB, 4GB
    * Refer to support page for more information

  • Expansion Slots

    Total Slot : 2
    Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
    Slot Location 6 : PCI-E x16 (Gen4 X16 Link)

  • Form Factor

    U ATX (9.6"x9.6", 244mm x 244mm)

  • Storage

    Storage Controller :
    6 x SATA3 6Gb/s ports
    1 x M.2 connector (2280/2260/2242)
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • On Board I/O

    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    2 x USB3.2 Gen2 ports
    1 x USB3.2 Gen1 header
    1 x USB 2.0 pin header
    6 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    1 x Serial Port Header
    1 x M.2 Connector
    1 x VGA Header
    1 x Onboard header for optional management card

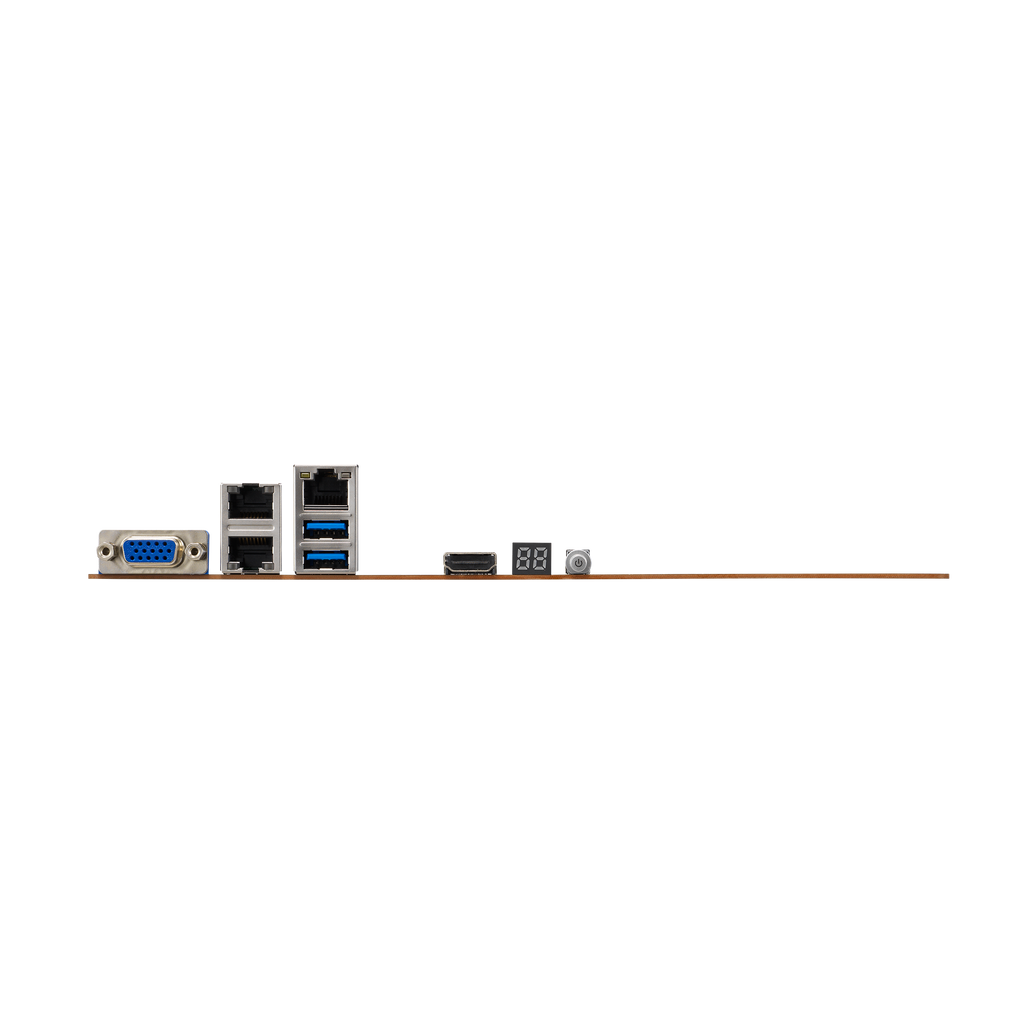

  • Back I/O Ports

    2 x USB 3.2 Gen 2
    1 x VGA Port (VGA from BMC)
    1 x HDMI Port (useable only with iGPU)
    2 x GbE LAN + 1 x Mgmt LAN

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    Optional ASMB10-iKVM for KVM-over-Internet

  • Weight

    Gift Box (1-in-1)
    Net Weight : 0.76 KG
    Gross Weight : 1.3 KG

    Bulk Pack (10-in-1)
    Net Weight : 6.9 KG
    Gross Weight : 9.5 KG

  • Environment

    Operation temperature: 10℃ ~ 50℃*
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)

    *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

  • Accessories

    Gift Box (1-in-1)
    2 x Support CD
    1 x I/O shield
    6 x SATA 6G cables
    4 x Plate for LGA1200
    Bulk Pack (10-in-1)
    2 x Support CD
    1 x I/O shield
    1 x Plate for LGA1200

  • Monitoring

    CPU Temperature
    Fan RPM

  • Note

    *1.VGA from BMC
    *2.HDMI (useable only with iGPU)
