描述
Model

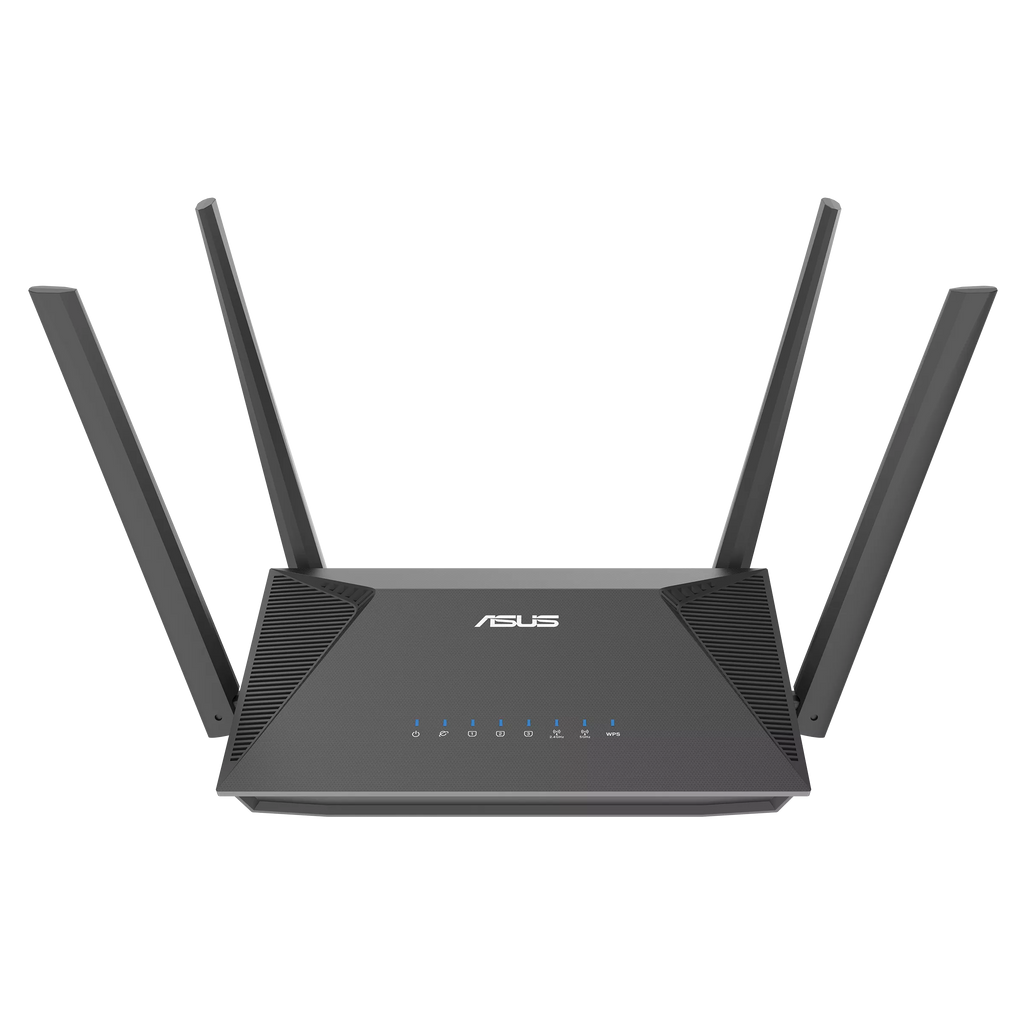

RT-AX52
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
5GHz 2x2
Processor
1.3GHz dual-core processor
Memory
128 MB Flash
256 MB RAM
256 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
Operating Mode
Access Point, AiMesh Node, Repeater, Router
I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
WAN x 1
LAN x 3
2.4G x 1
5G x 1
WPS x 1
WAN x 1
LAN x 3
2.4G x 1
5G x 1
WPS x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current
DC Output : 12 V with max. 1 A current
Package Content
．RT-AX52
．RJ45 Ethernet Cable
．Power Adapter
．Quick Start Guide
．Warranty Card
．RJ45 Ethernet Cable
．Power Adapter
．Quick Start Guide
．Warranty Card
Product Weight (g)
298g
Product Dimensions
192 x 126.3 x 47.5 mm (WxDxH)
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Security
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
WPS
SSH
Firewall
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS
Dual WAN
Port triggering
DMZ
DDNS
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
Diagnosis tools
Feedback System
System Log
