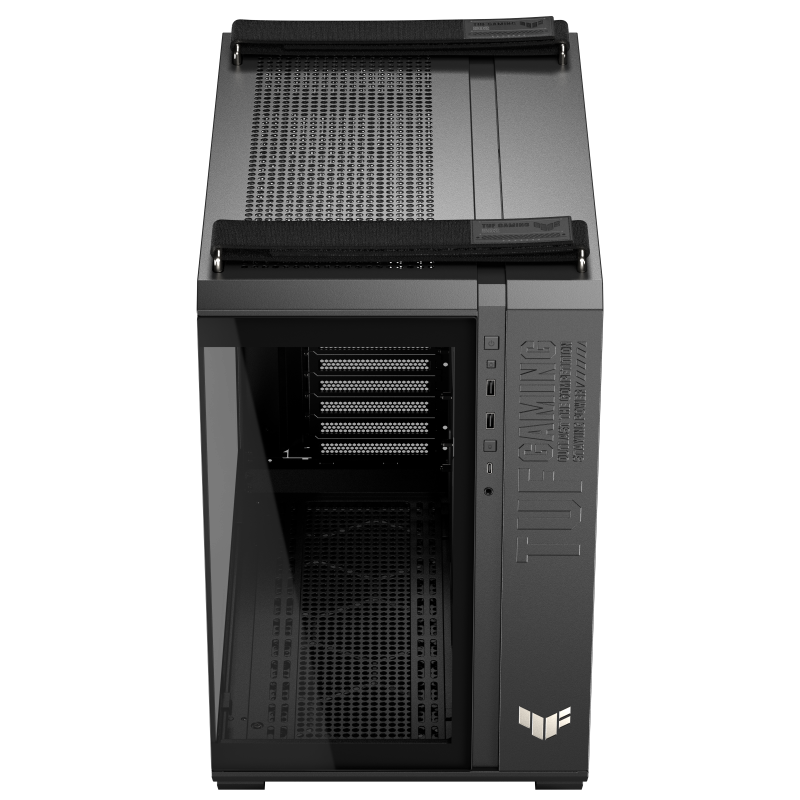

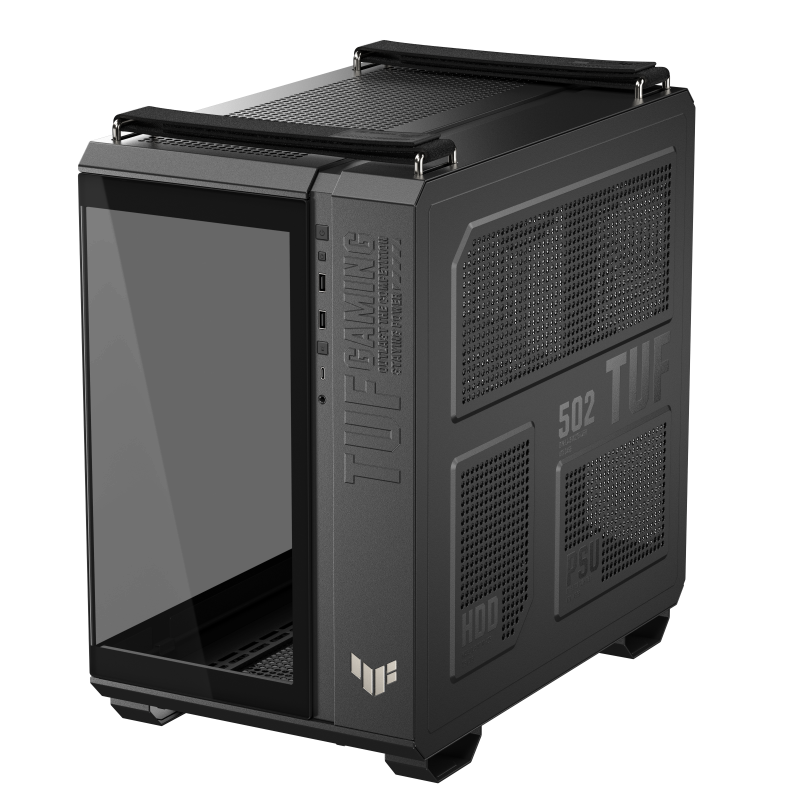

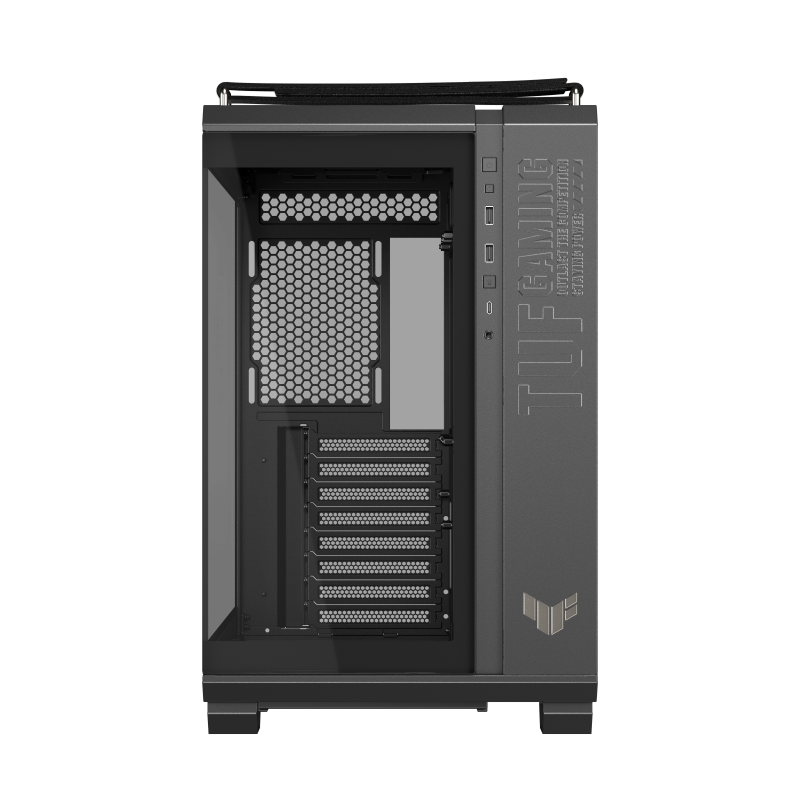

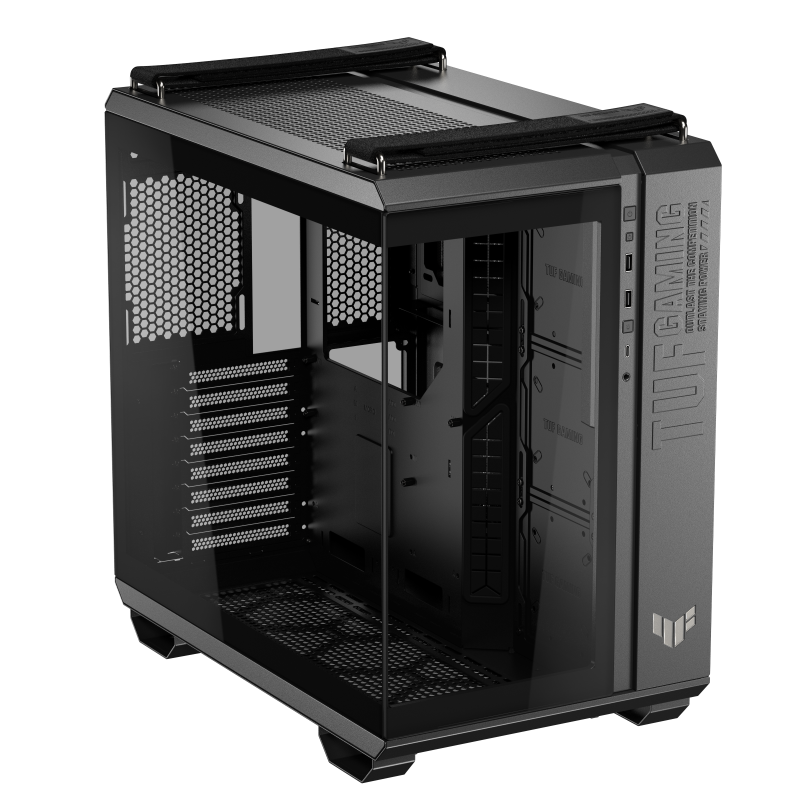

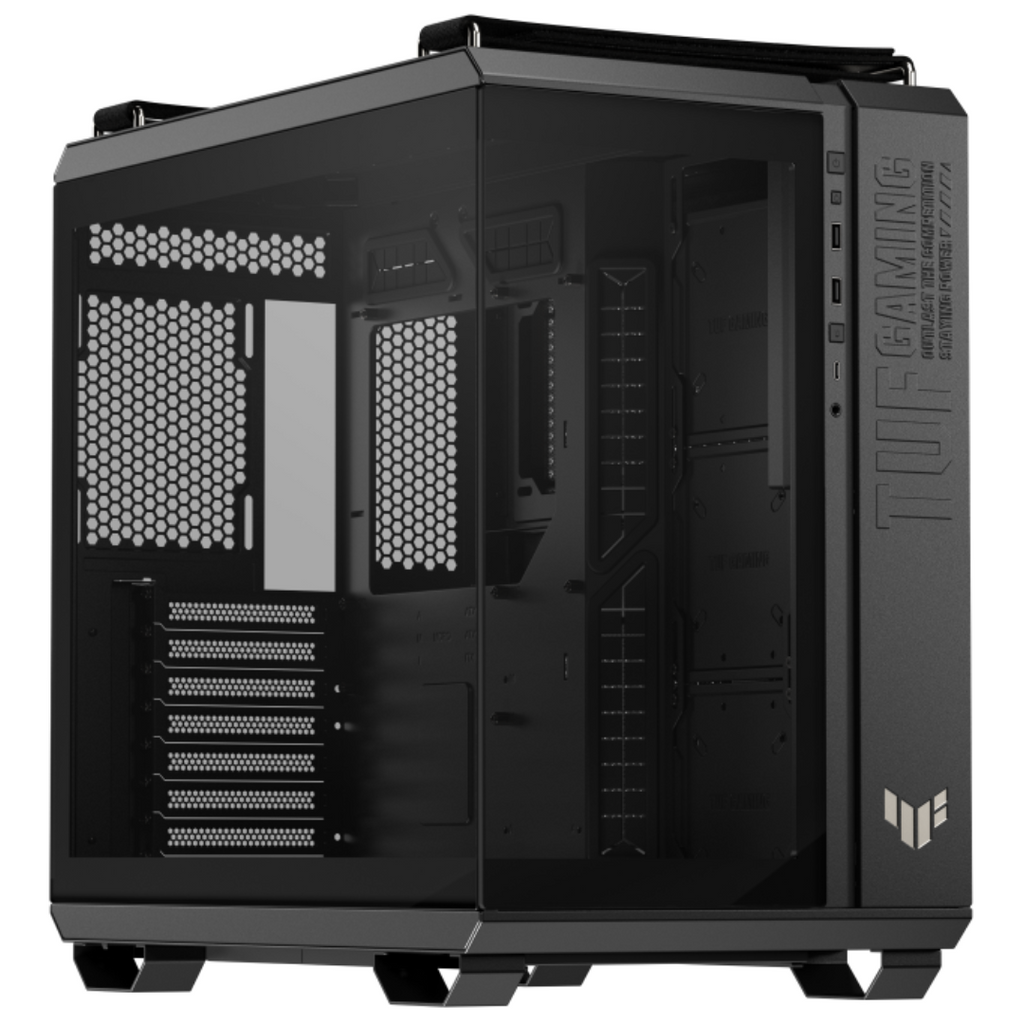

SUS TUF Gaming GT502 Horizon is a modular dual-chamber case with a panoramic design that can support up to three 360mm radiators or up to 13 120mm fans to achieve excellent cooling performance.

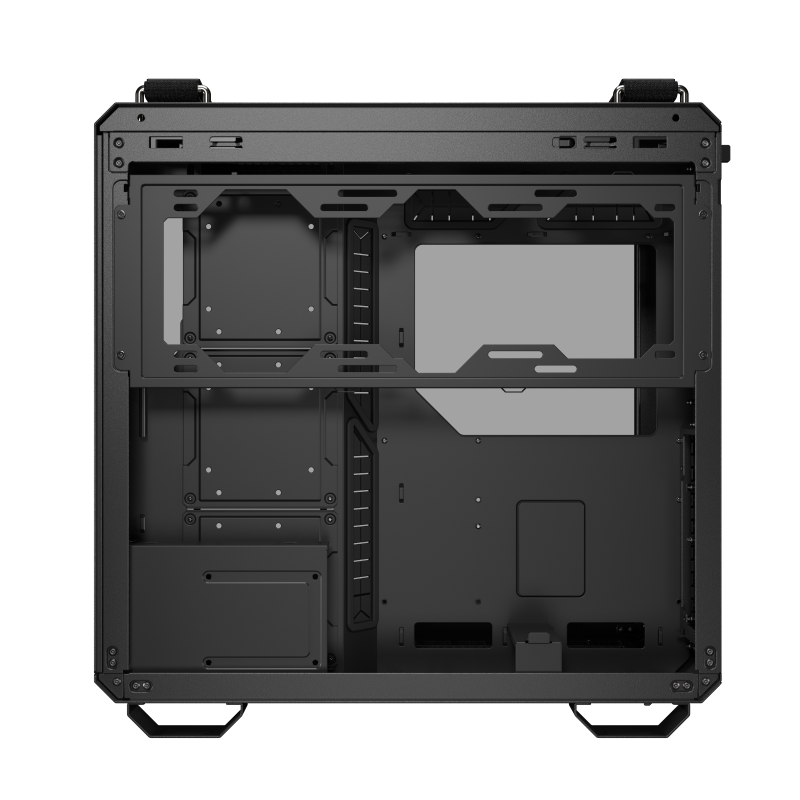

- Dual-cabinet design: The interior of the GT502 Horizon Unbounded Edition is divided into two independent cabin designs to establish separate heat dissipation areas for the CPU and graphics card.
- Unbounded panoramic design: The front panel and side panels are made of tempered glass and are tinted to provide a completely unobstructed view of the main cavity.
- Front-panel high-speed USB Type-C®: The front panel of the GT502 Horizon Unlimited Edition is equipped with a USB 10 Gbps Type-C port for high-speed data transfer.
- Tool-less side panel design: Simply press the button hidden behind the case to easily remove the side panel.
- Fully modular design: Most panels and installation components are removable, simplifying the hardware installation process.
Model
TUF Gaming GT502 Horizon
Case Size
Mid Tower
Motherboard Support
ATX
Micro-ATX
Mini-ITX
Micro-ATX
Mini-ITX
Drive Bays
4 x 2.5"/3.5" Combo Bay
Expansion Slots
8
3 (additional vertical)
3 (additional vertical)
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2x2 Type C
LED Control Button
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2x2 Type C
LED Control Button
Tempered Glass
Front Side
Left Side
Left Side
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
Maximum CPU Cooler Height
163 mm
Maximum GPU Length
400 mm
Maximum PSU Length
200 mm
Removable Dust Filters
Top
Bottom
Right
Bottom
Right
Dimensions
285 x 450 x 446 mm
Weight
11Kg
