描述
Model

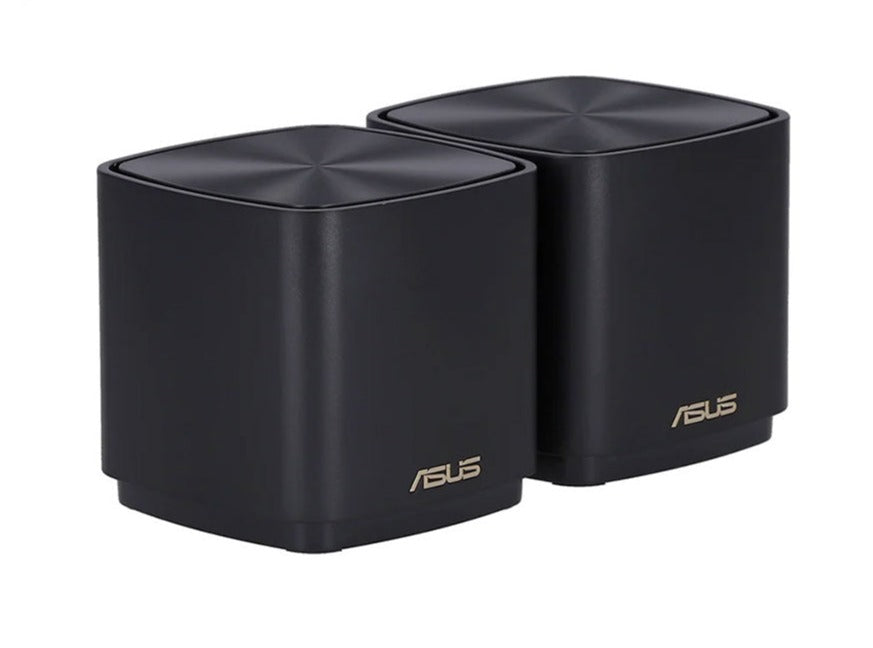

ASUS ZenWiFi XD4S
Model Name
XD4S (B-2-PK)
Network Standard
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna
Internal dual-band antenna x 2
Transmit / Receive
MIMO technology
2.4GHz 2x2
5GHz 2x2
2.4GHz 2x2
5GHz 2x2
Memory
128 MB Flash, 256 MB RAM
Boosts Speed
MIMO technology
Operating Frequency
2.4 G Hz / 5 GHz
I/O Ports
RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
"AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current"
DC Output : 12 V with max. 1.5 A current"
Package Content
‧XD4S
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty card
‧Screw pack
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty card
‧Screw pack
Product Weight (g)
307 g
Product Dimensions
90 x 90 x 85 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule
Customized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
Support Guest Network
• Maximum Guest Network Rule : 6
Guest Network Connection Time Limit
• Maximum Guest Network Rule : 6
Guest Network Connection Time Limit
Security
WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
SSH
Firewall
WPS
Let's Encrypt
SSH
Firewall
AiProtection
AiProtection Classic
• Malicious Site Blocking
• Infected Device Prevention and Blocking
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
• Bandwidth Limiter
Traditional QoS
• Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traditional QoS
• Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port Forwarding
Port Triggering
DMZ
DDNS
Port Forwarding
Port Triggering
DMZ
DDNS
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
Diagnosis Tools
Feedback System
System Log
