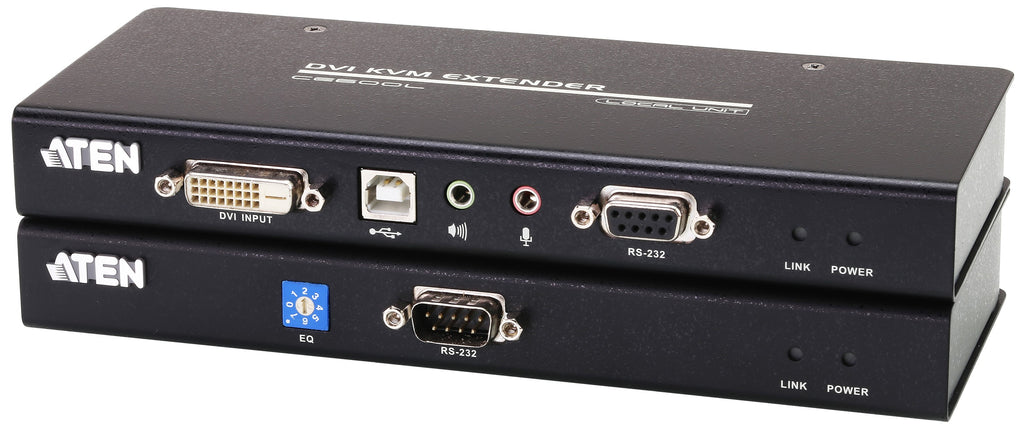

Features
- Local and Remote Units connect at distances up to 60 m using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console (up to 60 m)
- Features ATEN technology that allows A/V transmission over one cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
- Audio Enabled – supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports Wide Screen formats
- Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
- Hot pluggable
- Rack mountable
- Easy to install – no software required – connecting cables to the devices is all it takes
- Firmware upgrade

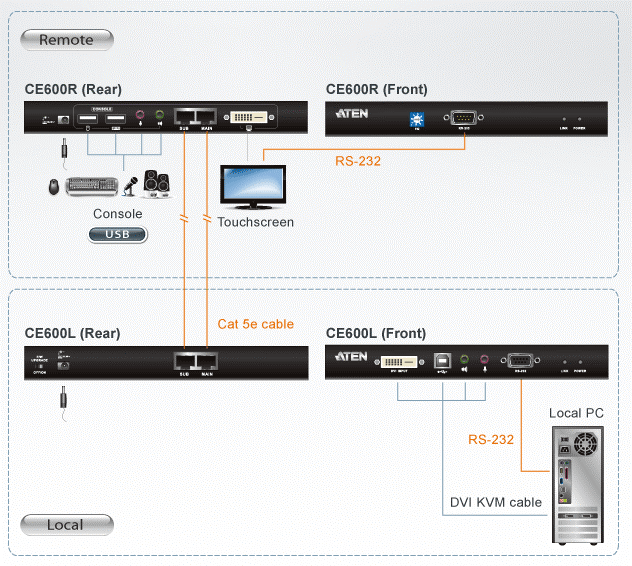

Diagram Description
Specifications

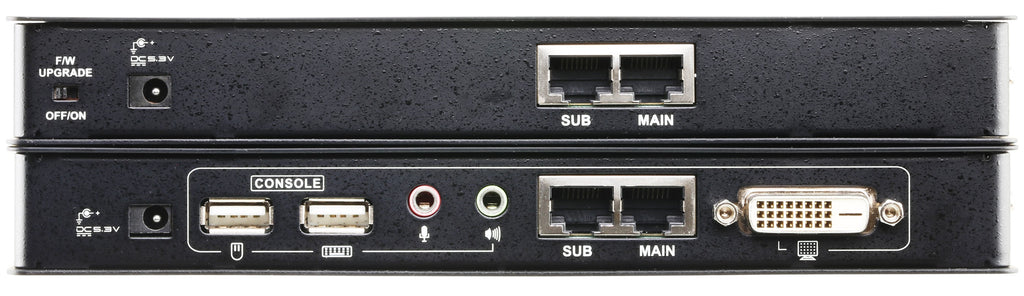

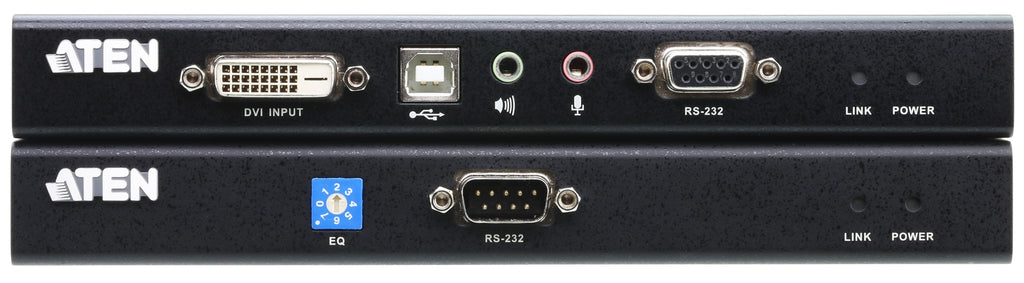

| Function | CE600L | CE600R |
| Connectors | ||
| Console Ports | N/A | 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x USB Type B Female (White) |
N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack | 1 x DC Jack |
| Sub / Main | 2 x RJ-45 Female (Black) | 2 x RJ-45 Female (Black) |
| LEDs | ||
| Link | 1 (Green) | 1 (Green) |
| Power | 1 (Green) | 1 (Green) |
| Switches | ||
| EQ Switch | N/A | 1 x 8-position switch |
| Firmware Upgrade | 1 x Slide Switch | N/A |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m); |
1920 x 1200 @ 60Hz (30 m); 1024 x 768 @ 60Hz (60 m); |
| Power Consumption | DC5.3V:1.92W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC5.3V:1.69W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.48 kg ( 1.06 lb ) | 0.48 kg ( 1.06 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.54 x 2.50 cm (7.95 x 3.36 x 0.98 in.) |
20.20 x 8.50 x 2.50 cm (7.95 x 3.35 x 0.98 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
