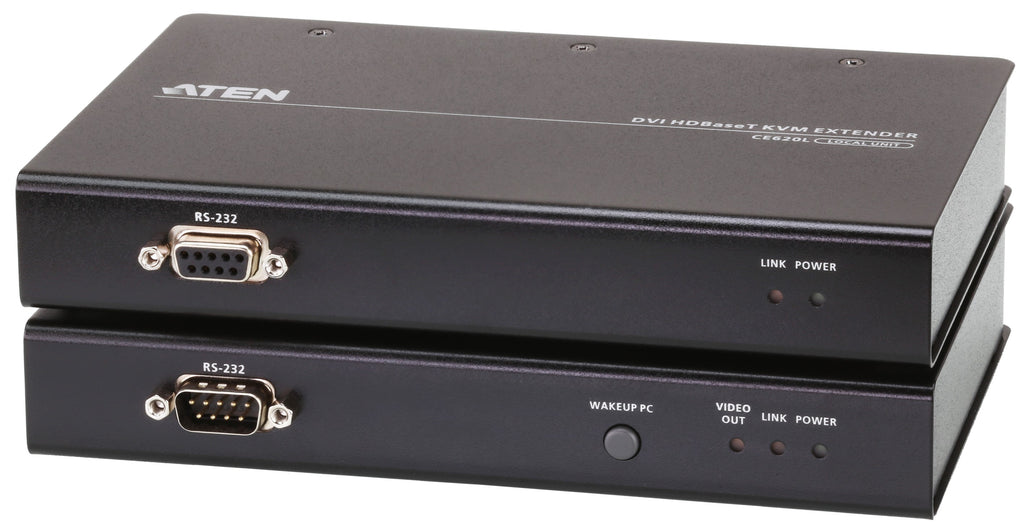

Features
- HDBaseT™ 2.0 connectivity technology
• Extends video, audio, USB and RS-232 signals via a single Ethernet cable
• EDID Buffer for smooth power-up and the highest quality display
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions - Long distance superior video quality
• HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
• HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m - Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
- 3 USB 2.0 ports for keyboard/mouse and peripherals
- Supports 2-channel PCM digital audio — ensuring audio transmissions
- Supports PC function via pushbutton or hotkey
- Built-in 8KV/15KV ESD (Contact voltage 8KV; Air voltage 15KV)
Note: The CE620 does not support HDCP.

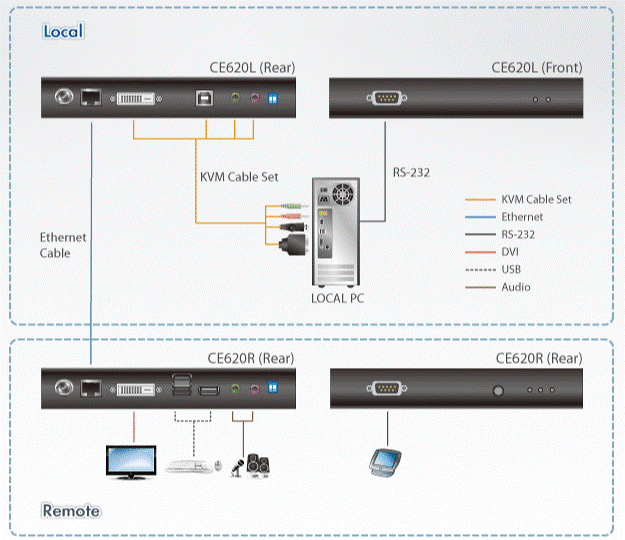

Diagram Description

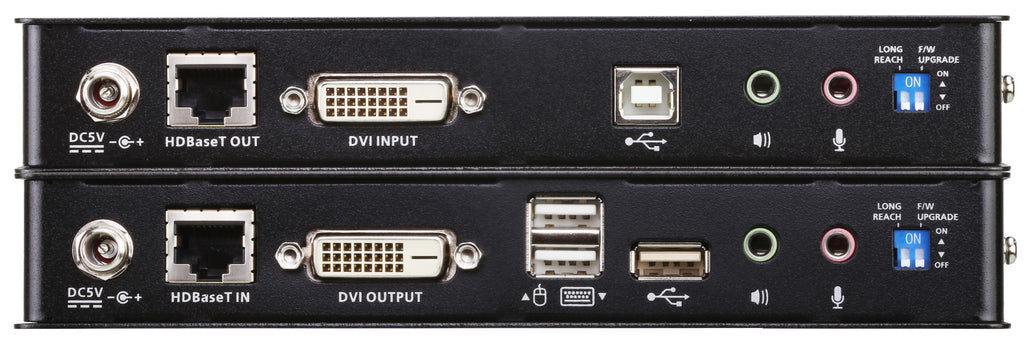

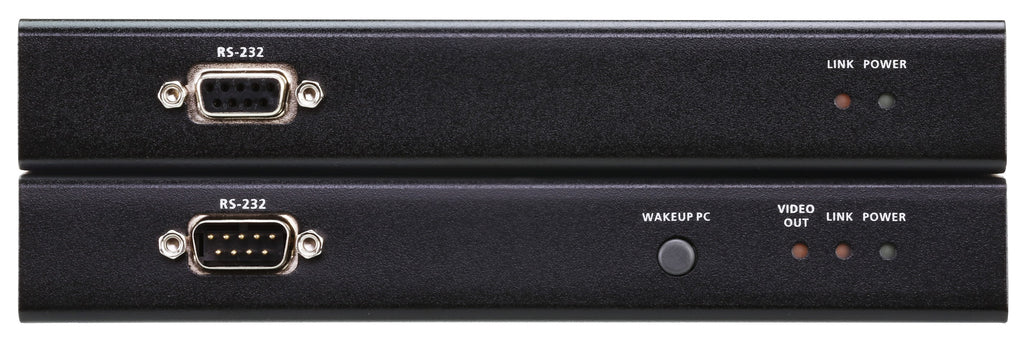

Specifications
| Function | CE620L | CE620R |
| Connectors | ||
| KVM Ports | 1 x DVI-D Female (White) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
N/A |
| Console Ports | N/A | 1 x DVI-D Female (White) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||
| Wakeup button | N/A | 1 x Push button |
| Video | Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1920x1080@150m (Long reach mode enable) |
Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1920x1080@150m (Long reach mode enable) |
| Power Consumption | DC5V:2.68W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC5V:5.02W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.63 kg ( 1.39 lb ) | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 18.20 x 12.28 x 2.87 cm (7.17 x 4.83 x 1.13 in.) |
18.20 x 12.28 x 2.87 cm (7.17 x 4.83 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
