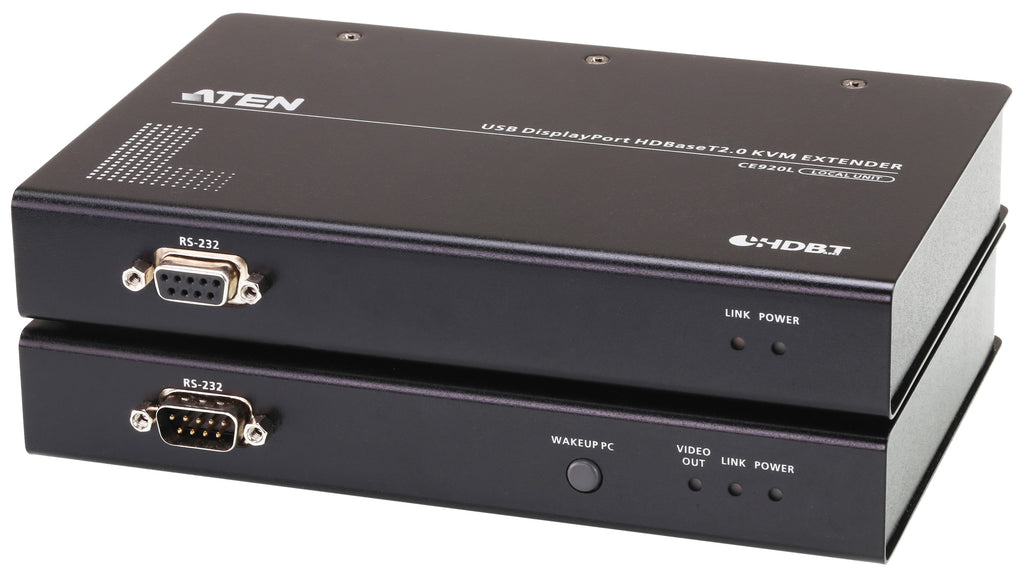

ATEN 4K DP USB HDBaseT 2.0 KVM Audio Extender w/USB2.0 – CE920
● 4K DP up to 100m extension
● Single Cat6 150m extra long distance extension mode
● HDBaseT2.0 transmits I²S/2ch PCM , USB2.0 , RS-232
● Remote Network Bypass
● Signal quality detection and EDID buffering
● Panel buttons and hot keys wake up the computer
ATEN, the world's No. 1 KVM Switch brand , launches the latest 4K DP USB HDBaseT 2.0 KVM Audio Extender – CE920 . As ATEN's first 4K DP KVM Extender , CE920 adopts HDBaseT2.0 technology and can extend 100m with 4K UHD/DCI@30Hz (4:2:0) . In addition to images, it can also transmit extremely low jitter rate I²S (Inter-IC Sound) , high bit rate PCM 2.0 channel and RS-232 control signals at the same time ; it is equipped with a long reach mode (Long Reach Mode) , using a Cat6 cable It can cover a distance of up to 150m ; signal quality detection and EDID buffering are easy to set up and ensure that the sound and video can be displayed with the best effect; it also has panel buttons and hotkeys to wake up the computer remotely ; supports remote Network Bypass Connect to a laptop or other Internet-enabled device. A series of professional and convenient signal processing and extension functions, most suitable for workplace extension applications such as transportation, medical treatment, and factories.
4K DP up to 100m extension
CE920 supports connecting to computers with USB and DP interfaces, the console resolution can reach 4K UHD/DCI@30Hz (4:2:0) , and the extension distance can reach 100m with high-quality Cat6 cable .
Single Cat6 150m extra long distance extension mode
CE920 is equipped with a long reach mode (Long Reach Mode) , which can cover a distance of up to 150m with a single Cat6 cable ; the standard mode can also extend the distance up to 100m .
HDBaseT2.0 transmits I²S/2ch PCM , USB2.0 , RS-232
CE920 is an extender for HDBaseT2.0 . In addition to images, it can also transmit extremely low jitter rate I²S (Inter-IC Sound) and high bit rate PCM 2.0 channels at the same time . The audio track transmission is accurate and completely solves the problem of distortion and Lip-Sync. etc. Equipped with 3 USB2.0 ports , the maximum transmission speed is up to 480Mbps . It supports the connection of USB peripheral products including storage devices, keyboard , mouse , microphone, speakers , etc., making it convenient for users to apply in different situations. It also supports RS-232 control signals and can be connected to touchpad and other serial devices for remote control.
Remote Network Bypass
CE920 is equipped with a Network Bypass function: the local end is connected to devices such as Router or Network Switch , and the remote end can be connected to laptops and other products that require Internet access to meet the needs of different venues and users.
Signal quality detection and EDID buffering
CE920 is equipped with a signal quality detection function that uses lights to display the HDBaseT signal connection status; EDID buffer recording and early push of screen EDID not only make the boot display faster, but also reduce the possibility of "aliasing" of the screen.
Panel buttons and hotkeys wake up the computer
CE920 is equipped with panel buttons and hot keys that can remotely wake up the computer , making it more convenient for users.
Easy to install
A Rack Mount Kit is included with the box , allowing users to install the CE920 on a rack to save space ; for installation and use, just connect the wires and it can be used, without the need for additional tools and software.
