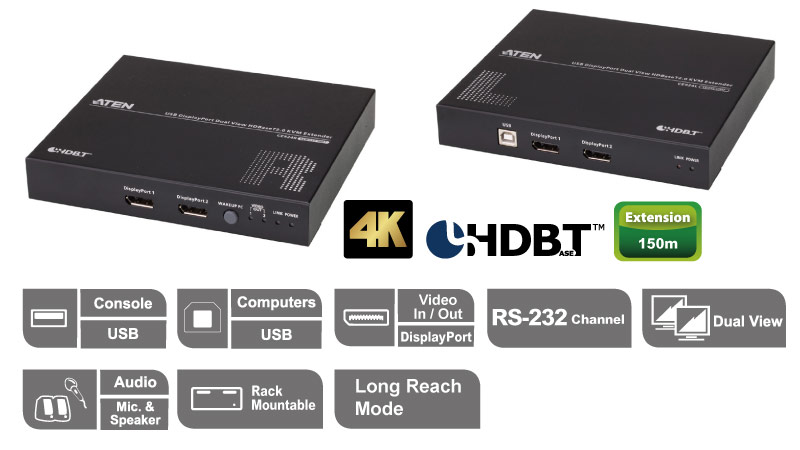

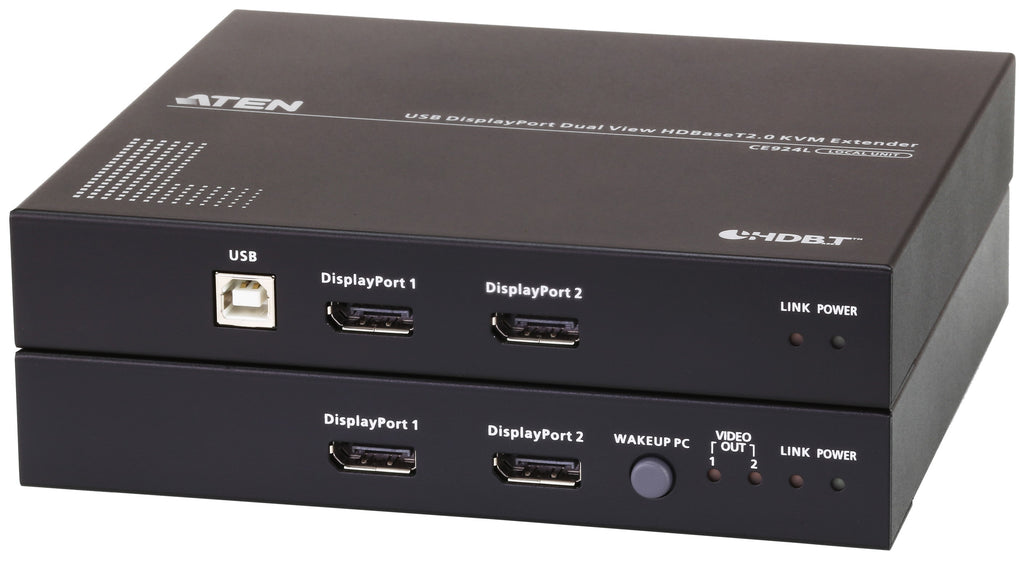

ATEN 4K DisplayPort USB Dual View HDBaseT 2.0 KVM Audio Extender w/USB2.0 – CE924
● DisplayPort 4K ultra -high resolution
● Dual View dual-screen display
● Single Cat6 150m extra long reach mode (Long Reach Mode)
● HDBaseT2.0 transmits PCM , USB2.0 , RS-232
● HDCP compatible ● 4*USB2.0 Hub
● Signal quality detection and EDID buffering
● Panel buttons and hot keys wake up the computer
ATEN, the world's No. 1 KVM Switch brand , launches the latest 4K DisplayPort USB Dual View HDBaseT 2.0 KVM Audio Extender w/USB2.0 – CE924 . As an extender for HDBaseT2.0 , CE924 supports DisplayPort interface 4K high resolution , high bit rate PCM 2.0 channel and RS-232 control signals ; it is equipped with a special long reach mode (Long Reach Mode) , which can be extended to Up to 150m distance ; signal quality detection and EDID buffering are easy to set and ensure that sound and video can be displayed with the best effect; supports Dual View dual-screen display , taking care of users who use 2 sets of video outputs; supports HDCP , and is equipped with panel buttons and Hotkeys can remotely wake up the computer from a remote location . A series of professional and convenient signal processing and extension functions, most suitable for workplace extension applications such as transportation, medical treatment, and factories.
DisplayPort 4K Ultra High Resolution
CE924 supports computers connected to USB and DisplayPort interfaces, and the console resolution can reach 4K@30Hz .
Dual View dual screen display
CE924 supports Dual View dual-screen display and is equipped with two DisplayPort interface inputs / outputs. Users only need to add another Cat6 cable to connect, and CE924 can output images to two display terminals at the same time . Dual View dual-screen display resolution can reach 1080p@100m .
Single Cat6 150m extra long distance extension mode
CE924 is equipped with Long Reach Mode , which can extend up to 150m with a single Cat6 cable .
· Single screen : 1080p@150m; 4K@100m
· Dual screen : 720p@150m; 1080p@100m

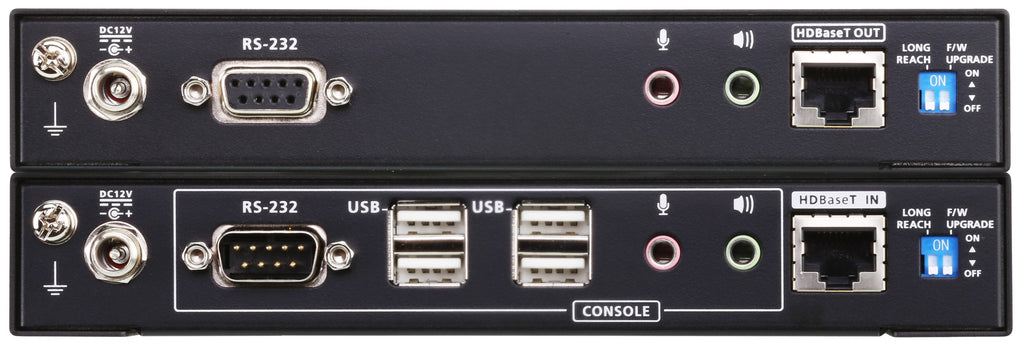

HDBaseT2.0 transmits PCM2.0 , USB2.0 , RS-232
CE924 is equipped with HDBaseT2.0 connection technology and high bit rate PCM 2.0 audio channels , which ensures accurate audio track transmission and completely solves problems such as distortion and Lip-Sync . Equipped with 4 USB2.0 ports , the maximum transmission speed is up to 30Mbps . It supports the connection of USB peripheral products including storage devices, keyboard , mouse , microphone , speakers , etc., making it convenient for users to apply in different situations. It also supports RS-232 control signals and can be connected to touchpad and other serial devices for remote control.
HDCP Compliant
CE924 is HDCP compatible and perfectly adapts to the latest Bluray format audio and video on the market. It is especially suitable for applications that focus on multimedia and audio-visual quality.
Signal quality detection and EDID buffering
CE924 is equipped with a signal quality detection function that uses lights to display the HDBaseT signal connection status; EDID buffering records and early push screen EDID , which not only makes the boot display faster but also reduces the possibility of "aliasing" of the screen.

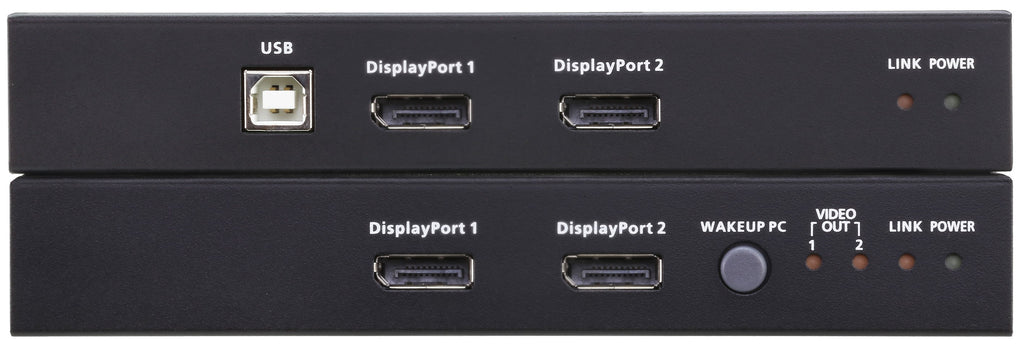

Panel buttons and hotkeys wake up the computer
CE924 is equipped with panel buttons and hot keys that can remotely wake up the computer , making it more convenient for users.
Easy to install
A Rack Mount Kit is included with the box , allowing users to install the CE924 on a rack to save space ; for installation and use, just connect the wires and it can be used, without the need for additional tools and software.
