ATEN upgraded version KVMP Switch!!
Boundless fast cutting + more splits on a single screen for higher performance !!

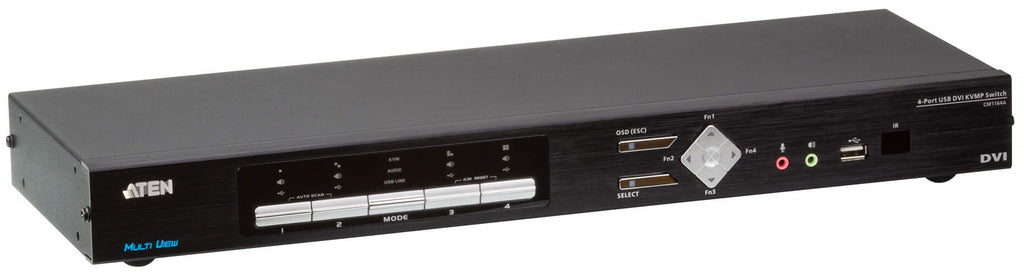

4- port USB DVI multi-window KVMP™ multi-computer switch – CM1164A
● Single screen supports multi-window screen display
● Boundless Switching technology
● 4 -layer daisy chain control up to 16 computers
● Cascade connects 16 splits to a single screen
● Exclusive Video DynaSync technology
● Independent switching of KVM/USB/Audio
● Four switching methods cross-platform support

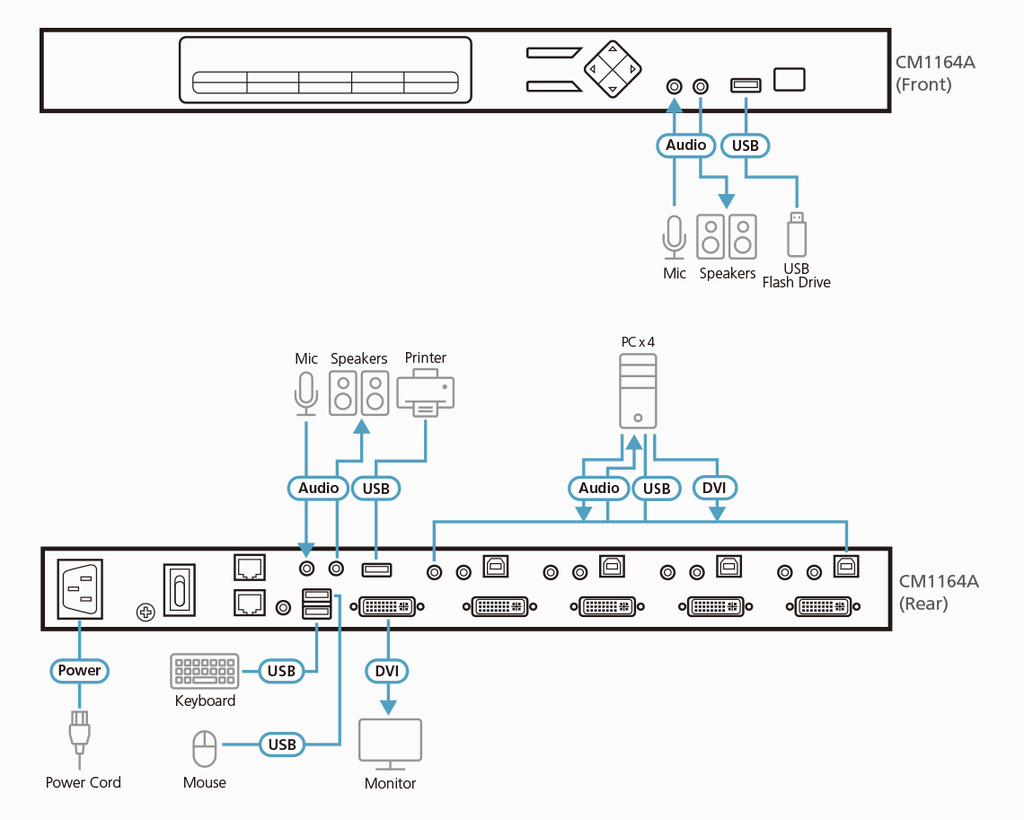

ATEN , the world's number one KVM Switch brand , has recently launched the upgraded version of KVMP Switch CM1164A - a 4- port USB DVI multi-window KVMP™ multi-computer switch . It allows users to easily switch between four DVI computers and share USB peripheral devices through a single console . It provides three flexible display modes - quad-split screen display mode, picture-in-picture display mode and full-screen mode . Supports daisy chain connection to connect up to 4 CM1164A units and control up to 16 computers with one keyboard and mouse . Equipped with exclusive Video DynaSync technology to ensure that the correct display resolution is maintained when switching ports. A new two-layer stacking function has been added to increase the 4 -split screen display to 16 splits ; a Boundless Switching function has been added , allowing users to transfer keyboard and mouse control to the next computer by dragging the mouse to the edge of the screen, which is convenient Fast; RS232 interface is convenient for connecting to high-end central control systems for integrated operation. It is suitable for working environments such as control rooms, monitoring centers, traffic control systems, and weather forecast centers.
● Single screen supports multi-window screen display
The CM1164A with DVI-D interface supports multi-window display through a single screen. One CM1164A can basically manage and control up to 4 image sources , and supports quad screen mode, PiP (Picture in Picture) mode, and PbP (Picture by Picture) mode . , PoP (Picture on Picture) mode . In PiP or PbP multi-window display mode, users can adjust the window size and position of any split window at will, and support resolutions up to 1920 x 1200 @ 60 Hz .
● Boundless Switching technology
CM1164A adopts ATEN Boundless Switching technology . When users switch between keyboard and mouse controls of multiple computers on multiple displays, they only need to pull the mouse to the edge of the display, and the control will automatically switch to the computer next to the display . No need to Press any button for more direct and convenient operation. Installation is also very convenient, no software required, just plug and play .
● 4 -layer daisy chain control up to 16 computers
CM1164A is equipped with an independent DaisyChain Port , which can be connected in up to 4 layers of daisy chain . Users only need to use the keyboard and mouse connected to the first-level CM1164A console to manage and operate up to four CM1164A units , a total of 16 units . computer.
● Cascade connects 16 splits to a single screen
CM1164A supports Cascade cascade connection of up to four additional CM1164A units . Users can monitor the images of up to 16 computer devices at a time on a single screen in 4 x 4 multi-window display mode .
● Exclusive Video DynaSync technology
ATEN's exclusive Video DynaSync technology can help KVM multi-computer switches switch to different video device sources, eliminate image display problems that may occur when the device is turned on , and at the same time optimize the screen display resolution .
● Independent switching of KVM/USB/Audio
To facilitate different applications, users can independently switch the KVM/USB/3.5mm port audio connected to CM1164A .
● Four switching methods cross-platform support

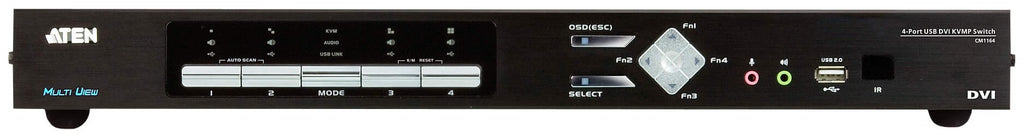

Users can use the CM1164A 's four switching methods: panel buttons / hot keys / mouse wheel /RS232 , which greatly improves the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
