ATEN's latest 4K KVMP Control Center!
4K Dual Display+ borderless fast cutting + multi-screen splitting , high performance and quick control of multiple servers!!
4 -Port USB 4K HDMI Multi-Window KVMP™ Multi-Computer Switch – CM1284
●4K DCI@30Hz Dual Display
● Single screen supports multi-window screen display
● Boundless Switching technology
●4- layer daisy chain control up to 16 computers
●Cascade cascades single screen with 16 splits
● Exclusive Video DynaSync technology
● Independent switching of KVM/USB/Audio
● Four switching methods cross-platform support

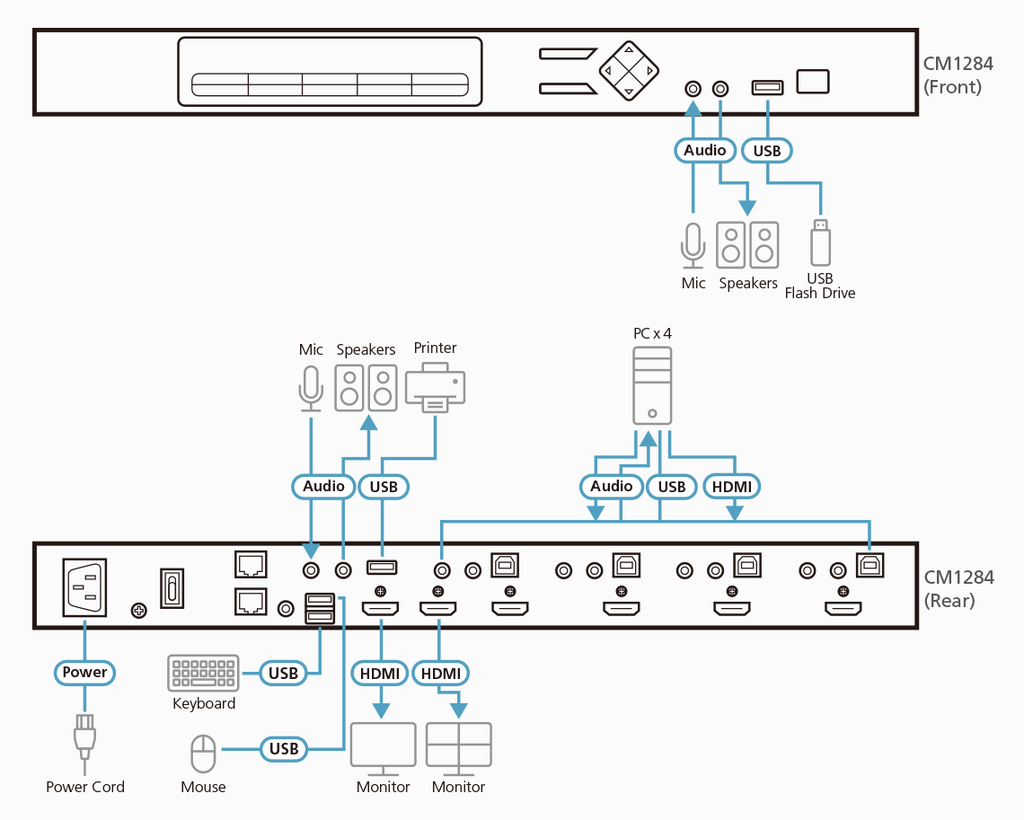

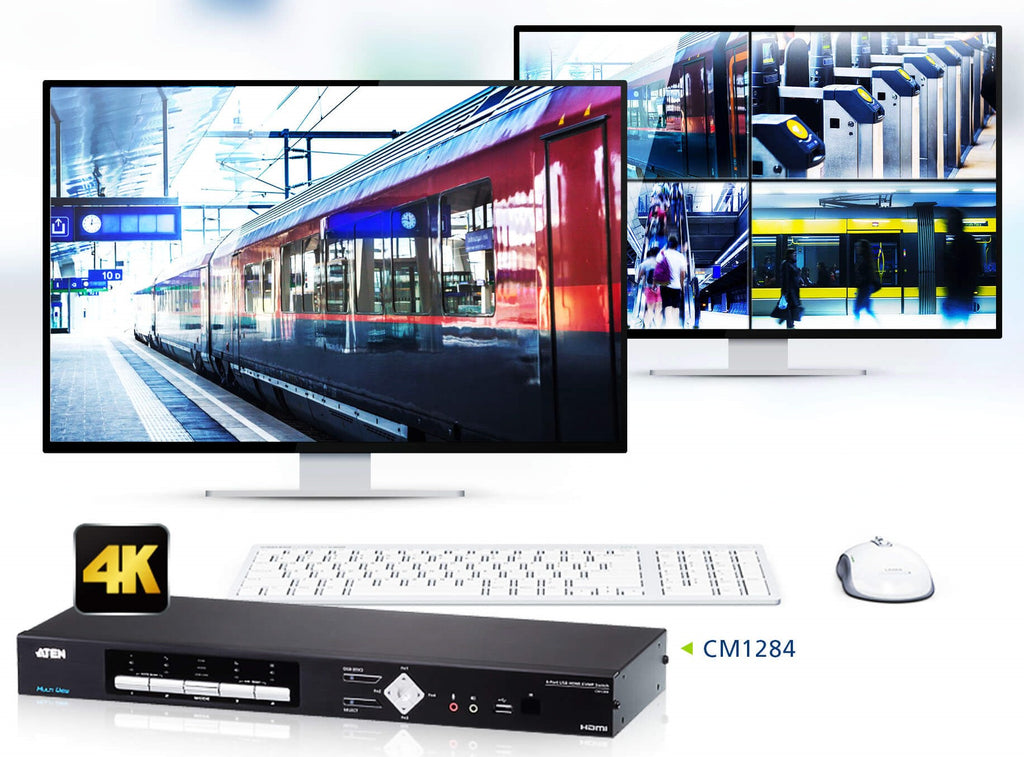

ATEN , the world's No. 1 KVM Switch brand , launches the latest 4K KVMP Control Center CM1284 - 4- port USB 4K HDMI multi-window KVMP™ multi-computer switch . CM1284 supports ultra-high resolution up to 4K DCI@30Hz and is equipped with dual HDMI screen outputs , allowing users to easily switch between 4 HDMI computers and share USB peripherals through a single console . It provides three flexible display modes - Quad Split On-screen display mode, picture-in-picture display mode and full-screen mode . Supports daisy chain connection to connect up to 4 CM1284s and control up to 16 computers with one keyboard and mouse . Equipped with exclusive Video DynaSync technology to ensure that the correct display resolution is maintained when switching ports. A new two-layer stacking function has been added to increase the 4 -split screen display to 16 splits ; a Boundless Switching function has been added , allowing users to transfer keyboard and mouse control to the next computer by dragging the mouse to the edge of the screen, which is convenient Fast; RS232 interface is convenient for connecting to high-end central control systems for integrated operation. It is suitable for working environments such as control rooms, monitoring centers, traffic control systems, and weather forecast centers.
●4K DCI@30Hz Dual Display
Both the CM1284 HDMI input and output ports support ultra-high resolution up to 4K DCI@30Hz , allowing users to enjoy the most authentic audio and video. Equipped with 2 4K HDMI outputs , two screens can be connected to comprehensively improve work efficiency.
● Single screen supports multi-window screen display
The CM1284 with 4K HDMI interface can display multiple . One CM1284 can basically manage and control up to 4 image sources , and supports quad-split screen mode, PiP (Picture in Picture) mode, and PbP (Picture by Picture) mode, PoP (Picture on Picture) mode . In PiP or PbP multi-window display mode, users can adjust the window size and position of any split window at will.
● Boundless Switching technology
CM1284 adopts ATEN Boundless Switching technology . When users switch between keyboard and mouse controls of multiple computers on multiple displays, they only need to pull the mouse to the edge of the display, and the control will automatically switch to the computer next to the display . No need to Press any button for more direct and convenient operation. Installation is also very convenient, no software required, just plug and play .
●4- layer daisy chain control up to 16 computers
CM1284 is equipped with an independent DaisyChain Port , which can be connected in up to 4 layers of daisy chain . Users only need to use the keyboard and mouse connected to the first-level CM1284 console to manage and operate up to four CM1284s , a total of 16 units . computer.
●Cascade cascades single screen with 16 splits
CM1284 supports Cascade cascade connection of up to four additional CM1284s . Users can monitor the images of up to 16 computer devices at a time on a single screen in 4 x 4 multi-window display mode .
● Exclusive Video DynaSync technology
ATEN's exclusive Video DynaSync technology can help KVM multi-computer switches switch to different video device sources, eliminate image display problems that may occur when the device is turned on , and at the same time optimize the screen display resolution .
● Independent switching of KVM/USB/Audio
To facilitate different applications, users can independently switch the KVM/USB/3.5mm port audio connected to CM1284 .
● Four switching methods cross-platform support
Users can use the CM1284 's four switching methods: panel buttons / hot keys / mouse wheel /RS232 , which greatly improves the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
