ATEN ’s new member of high-end 4K HDMI KVMP Switch !
CS1842/CS1844 – 2/4 Port USB3.0 4K HDMI Dual Display KVMP Switch
The operational efficiency of finance / design / control room has been greatly improved!
●4*4K DCI@60Hz Dual Display input
●Console 4K DCI@60Hz Dual Display/ Keyboard / Mouse
●HDMI2.0/HDCP2.2/Video DynaSync
●HD Audio + 3.5mm Audio
●2*USB 3.1/ 5Gbps extremely fast peripheral sharing
● Daisy chain connection of 2 units for up to 4 screen monitoring
● Independent switching of KVM/USB/Audio
● Five switching methods cross-platform support

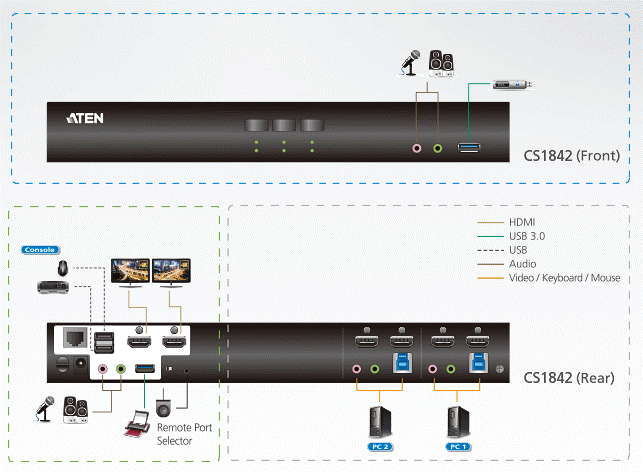

ATEN , the world's No. 1 KVM Switch brand , has continuously innovated over the years, taking into account the application needs of the professional market, and launched the latest high-end 4K HDMI KVMP Switch : CS1842/CS1844 - 2/4 Port USB3.0 4K HDMI Dual Display KVMP Switch . CS1842/CS1844 supports 2/4 computers with 4K Dual Display HDMI output , and uses a set of keyboard , mouse , and 4K Dual Display HDMI screen as console , providing an extremely smooth control experience at 60Hz . HDMI2.0 , HDCP2.2 and Video DynaSync allow CS1842/CS1844 to pass protected audio and video content while ensuring that the screen can be presented at the best resolution; supports embedded HD Audio and 3.5mm Audio ; 2 USB 3.1 provide 5Gbps speed Share around. Users can switch via panel buttons, Hotkey , mouse, or RS-232 , and KVM/USB/Audio can also be switched independently . Specially supports daisy chain connection, which can connect up to 2 CS1842 /CS1844 , and use a set of keyboard and mouse for 4- screen monitoring . It is suitable for high-end complex applications such as finance / design / control rooms, etc., and comprehensively improves work efficiency.
● HDMI 4K DCI@60Hz Dual Display輸入/ Dual Display console
CS1842/CS1844 supports 4K DCI@60Hz Dual Display HDMI output for each computer . In addition to built-in HD Audio , it can also be independently connected to 3.5mm speakers and connected via a set of keyboard / mouse and 4K DCI@60Hz Dual Display HDMI screen. Console control provides a new generation of smooth control experience.
● Daisy chain connection of 2 units for up to 4 screen monitoring
CS1842/CS1844 is equipped with an independent DaisyChain Port , which can connect to one more CS1842/CS1844 for 4- screen monitoring . Users only need to use the keyboard and mouse connected to the first-level CS1842/CS1844 console to manage operations.
● Exclusive Video DynaSync technology /HDCP/ USB 3.1
ATEN's exclusive Video DynaSync technology can help KVM multi-computer switches switch to different video device sources, eliminate image display problems that may occur when the device is turned on , and at the same time optimize the screen display resolution . It also supports HDCP and supports HDMI audio and video with copyright protection protocols ( such as Bluray , Set Top Box , etc. ) . Equipped with two USB3.1 to provide high-speed connection of up to 5Gbps to USB peripheral products ( such as USB finger, Printer , Scanner , etc. ) .
● Independent switching of KVM/USB/Audio
To facilitate different applications, users can independently switch the KVM/USB/3.5mm port audio connected to CS1842/CS1844 .
● Five switching methods cross-platform support
Users can use the CS1842/CS1844 's five switching methods: panel buttons / hot keys / mouse wheel /Remote Port Selector/RS232 to greatly improve the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
