Specifically designed for the air traffic control industry !

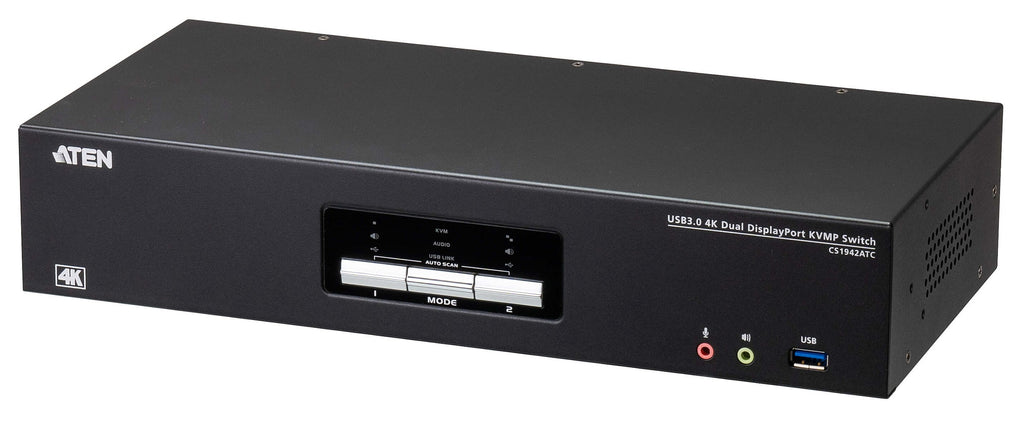

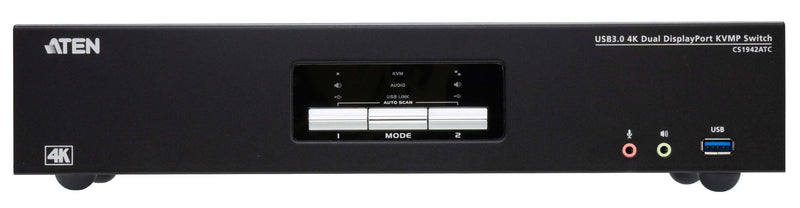

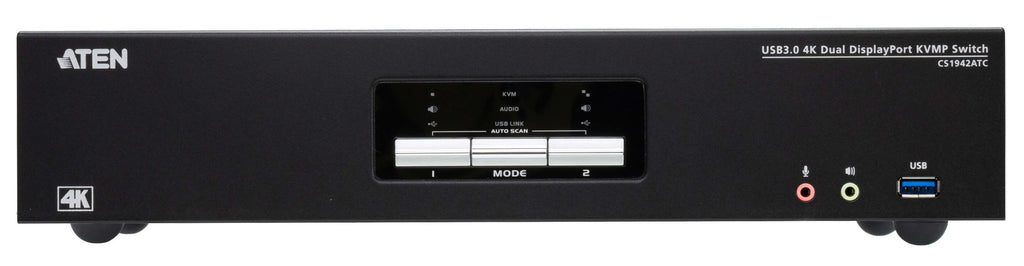

ATEN's latest 2 Port USB 3.0 4K DisplayPort dual-screen flight management system multi-computer switch - CS1942ATC● 4K DCI@60Hz Dual Display
● Supports 2048 x 2048@ 60Hz radar screen exclusive resolution
● Zero-second fast switching function, instant switching without black screen
● Dual DC power backup
●DisplayPort 1.2/HDCP support/Video DynaSyncTM/EDID expertTM
●SuperSpeed USB 3.1 (Gen 1)
● Five switching methods cross-platform support
● Support RS-232 command to switch operating computer
ATEN, the world's No. 1 KVM Switch brand , has recently launched a 2-Port USB 3.0 4K DisplayPort dual-screen flight management system multi-computer switch - CS1942ATC , specially designed for the air traffic control industry. Air traffic controllers can instantly access and operate 2 Gundams 4K dual-screen USB/DisplayPort interface air traffic control computer . CS1942ATC supports 2048 x 2048 @ 60 Hz radar screen-specific resolution , is equipped with dual DisplayPort screen outputs , and has a zero-second fast switching function , which can provide instant switching without black screen ; it also has 2 DC power interfaces to provide power backup function! CS1942ATC supports HDCP , ATEN patented technologies Video DynaSync TM and EDID expert TM , making it easy to cooperate with hardware devices; SuperSpeed USB 3.1 (Gen 1) provides 5Gbps multimedia / file transfer speed; it can be switched in five ways and supports PC/MAC/Linux cross-platform , suitable for use in Air Traffic Control Towers , Approach Control Rooms and Area Control Centers .
●4K DCI@60Hz Dual Display
CS1942ATC supports DisplayPort 1.2 , high image quality up to 4K UHD/DCI@ 60Hz . Air traffic controllers can control two 4K computers with a USB keyboard, mouse and monitor, and are equipped with two DisplayPort outputs that can connect two monitors to comprehensively improve work efficiency. It also supports the HDCP protection standard to ensure that high-quality audio and video can be perfectly presented through the CS1942ATC .
● Supports 2048 x 2048@ 60Hz radar screen exclusive resolution
CS1942ATC is specially designed for the air traffic control industry. It supports 2K x 2K resolution and is especially suitable for radar monitoring . It can continuously monitor flight information and ensure key mission operations. It can strengthen Air Traffic Control Towers and approach control. Approach Control Rooms and Area Control Centers operational efficiency.
● Zero-second fast switching without black screen and instant switching
CS1942ATC has a zero-second fast switching function , which can provide instant switching without black screen, ensuring uninterrupted image streaming and stable data transmission . Air traffic control personnel can instantly access 2 air traffic control computers with dual-screen USB/DisplayPort interfaces and perform real-time operation and control.
● Dual DC power backup
CS1942ATC is equipped with Dual DC dual power supply backup design . When one power supply fails, the other power supply can immediately make up for it to ensure normal operation ;
● SuperSpeed USB 3.1 (Gen 1)
CS1942ATC is equipped with USB 3.1 (Gen 1) , which can provide a transfer rate of 5Gbps , which is 10 times faster than the previous generation USB 2.0 . The access speed is faster, and the application is more convenient and efficient.
● Five switching methods cross-platform support
Users can use CS1942ATC ’s five switching methods : panel buttons / hot keys / mouse wheel / RS-232 commands /Remote Port Selector (Optional) , and it is compatible with Windows/Mac/Linux operating systems , greatly improving the flexibility of computer switching. and flexibility of use.
