ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
在圖片上滾動放大 點擊圖片以放大
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m
ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m

ATEN VC880 HDMI Repeater w/Audio De-Embedder, 1920x1200/1080p, 15m

節省 $99.00
ATEN
價格:
HK$1,080.00 HK$1,179.00

描述

Features

  • Repeats HDMI input signal up to 15 meters
  • Extracts HDMI audio signal and outputs as additional audio source
  • Supports optical / coaxial digital audio and analog stereo audio*
  • HDCP 1.1 compatible
  • Superior Video Quality – up to 1920x1080 (1080p)
  • Firmware upgradable
  • CH2/CH5.1/Auto mode audio channel selection
  • HDMI (3D)
  • Supports Dolby True HD and DTS HD Master Audio
  • Supports Audio on/off switch for HDMI output
  • Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m
  • Integrates with Apple TV for the perfect home entertainment system

  • *Supported Audio Input Channels

      Source audio input channel
    Audio Output Stereo
    (LPCM 2)    		 DTS 5.1
    Dolby 5.1    		 LPCM 5.1 DTS 7.1
    Dolby 7.1    		 LPCM 7.1
    TosLink Stereo DTS 5.1
    Dolby 5.1    		 2 channel
    (Front Right & FrontLeft)    		 Non support 2 channel
    (Front Right & FrontLeft)
    Coaxial Stereo DTS 5.1
    Dolby 5.1    		 2 channel
    (Front Right & FrontLeft)    		 Non support 2 channel
    (Front Right & FrontLeft)
    Stereo Stereo Non support 2 channel
    (Front Right & FrontLeft    		 Non support 2 channel
    (Front Right & FrontLeft)

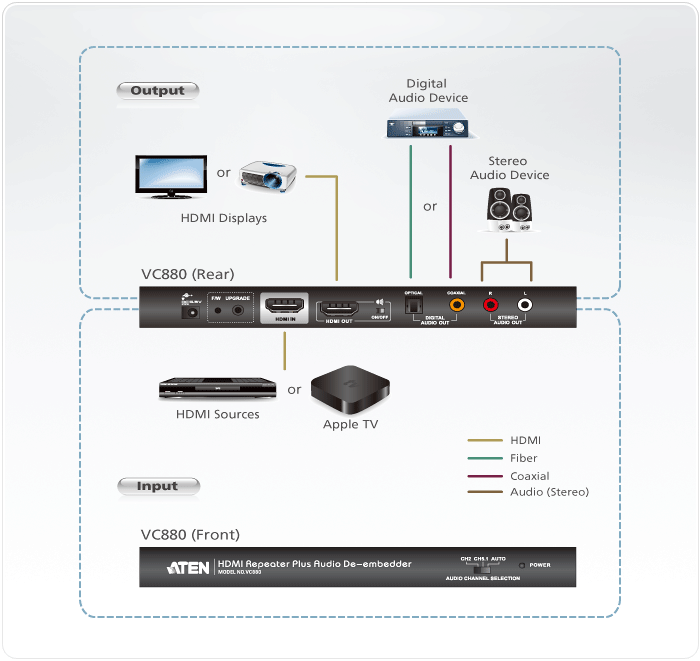

Diagram Description

Specifications

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m at 1920*1080@60 (4:4:4)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15m at 1920*1080@60 (4:4:4)
Video
Max. Data Rate 6.75 Gps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Max. Resolution Up to 1920 x 1080
Audio
Output 1 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange);
2 x RCA (Red/White);
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:2.25W:11BTU/h/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 - 50 ºC
Storage Temperature -20 - 60 ºC
Humidity 0 - 80% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.46 kg ( 1.01 lb )
Dimensions (L x W x H) 20.00 x 8.20 x 2.50 cm
(7.87 x 3.23 x 0.98 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
