Professional AV Distribution Series

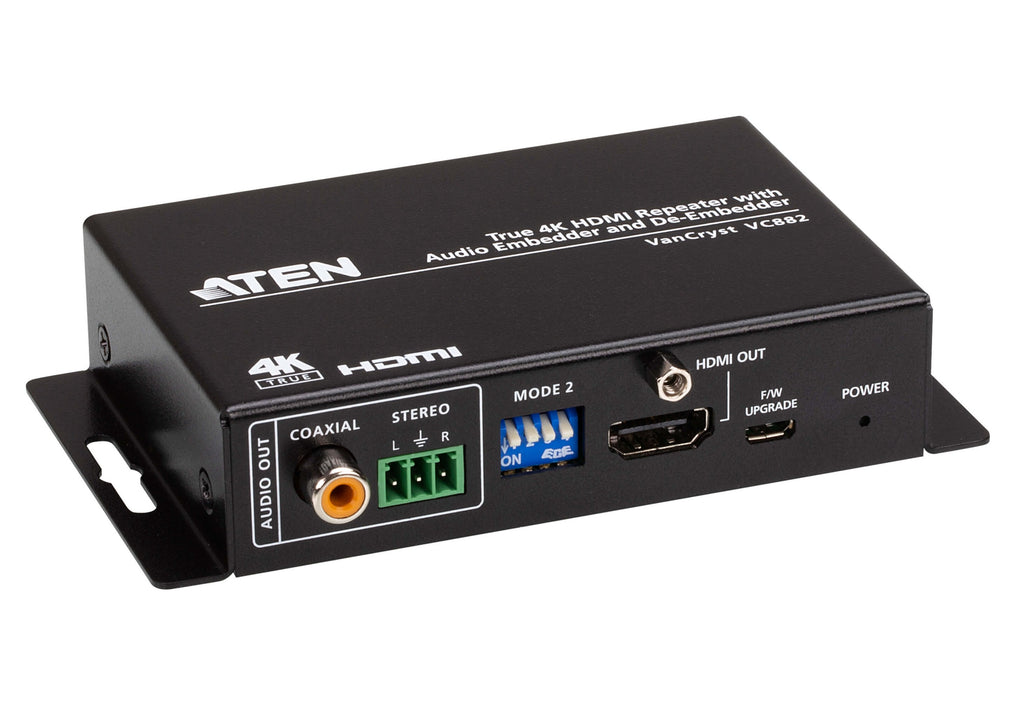

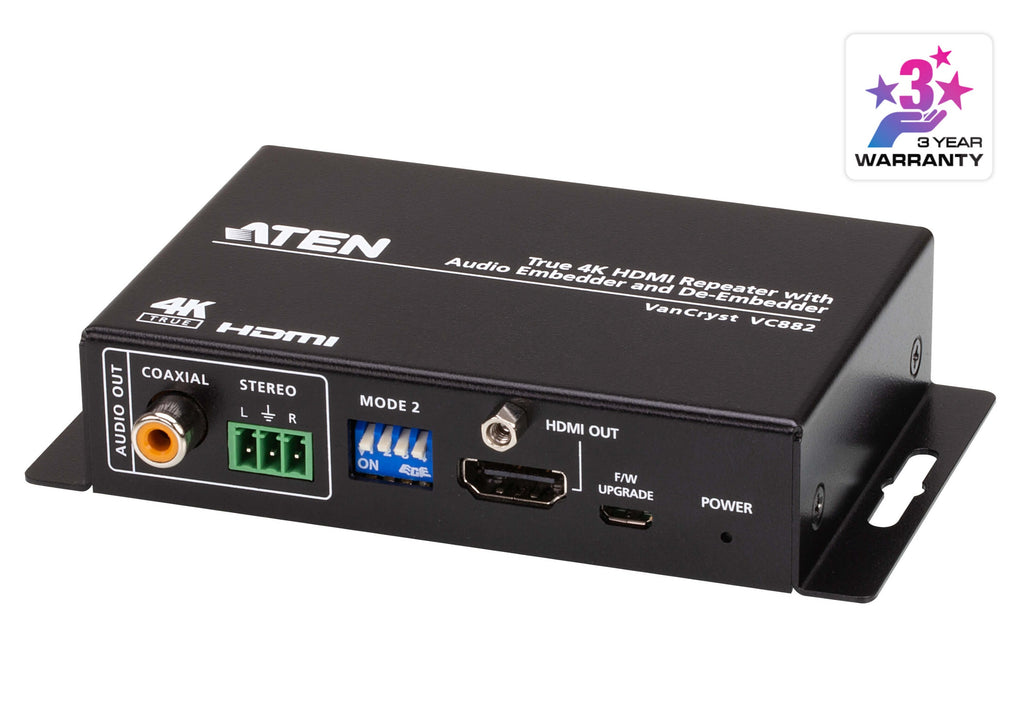

Aten True 4K HDMI Repeater w/Audio Embedder & De-Embedder – VC882
● Extended True 4K 60Hz@5m+5m
● Audio Embedder & De-Embedder easily integrates / captures audio
● Popular HDCP2.2 protection standard
● CEC bypass & ARC functions
● Support HDR10, 10+, Dolby, HLG
ATEN International , a global leader in digital information sharing, recently launched True 4K HDMI Repeater w/Audio Embedder & De-Embedder – VC882 . True 4K@60Hz can be extended to a total distance of 10 meters (5m input + 5m output) through HDMI cables . It also supports 3D display and Deep Color , and adopts the popular HDCP2.2 protection standard. In addition, VC882 has more specific functions of Audio Embedder and De-Embedder . It can switch between the two modes as needed, easily integrate / capture Stereo and Digital audio tracks to HDMI , and can more flexibly construct the entire audio-visual system.
4K HDMI HDCP2.2

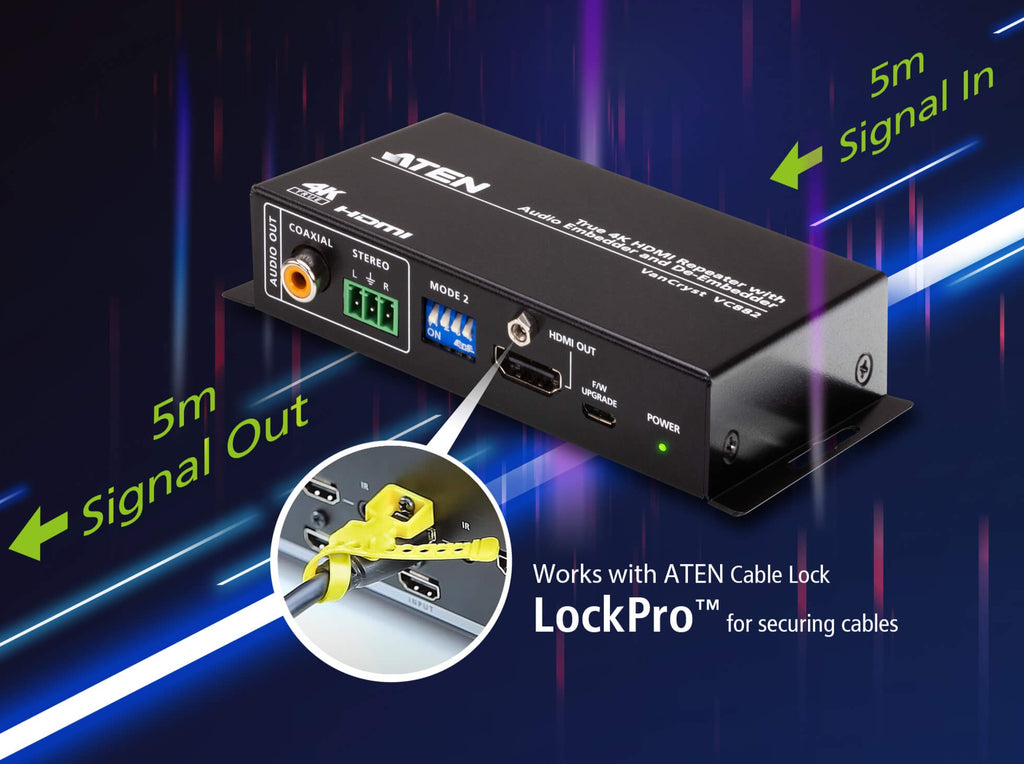

VC882 supports the highest image quality of True 4K @60Hz and Cinematic Chroma 4:4:4. It also preloads support for 3D display, Deep Color , HDR10 , 10+ , Dolby and HLG and other high-definition displays, and adopts the popular HDCP2.2 protection standard. , providing users with high-definition audio and video output. VC882 can also extend the Input and Output signals by 5 meters respectively, and the total extension distance is up to 10 meters ; users can also switch between 4 EDID Modes : By pass , 5.1CH , 2CH and learning mode to ensure that the image remains optimally displayed . .
Audio Embedder & De-Embedder easily integrate / capture audio

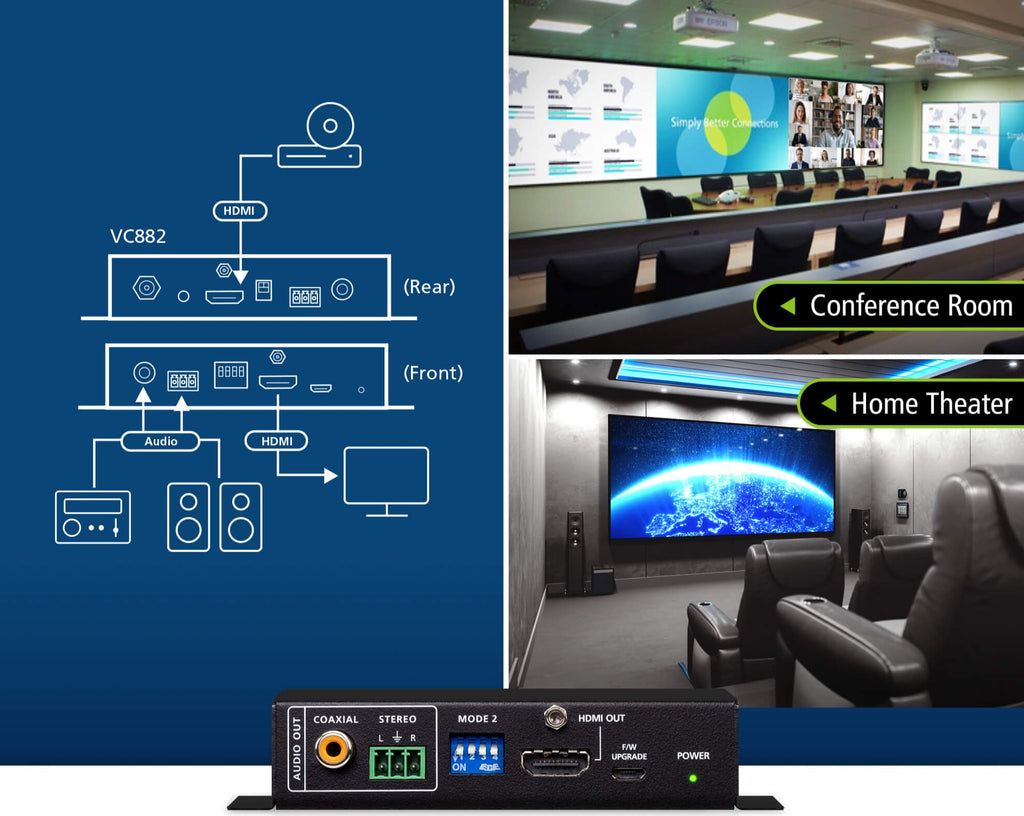

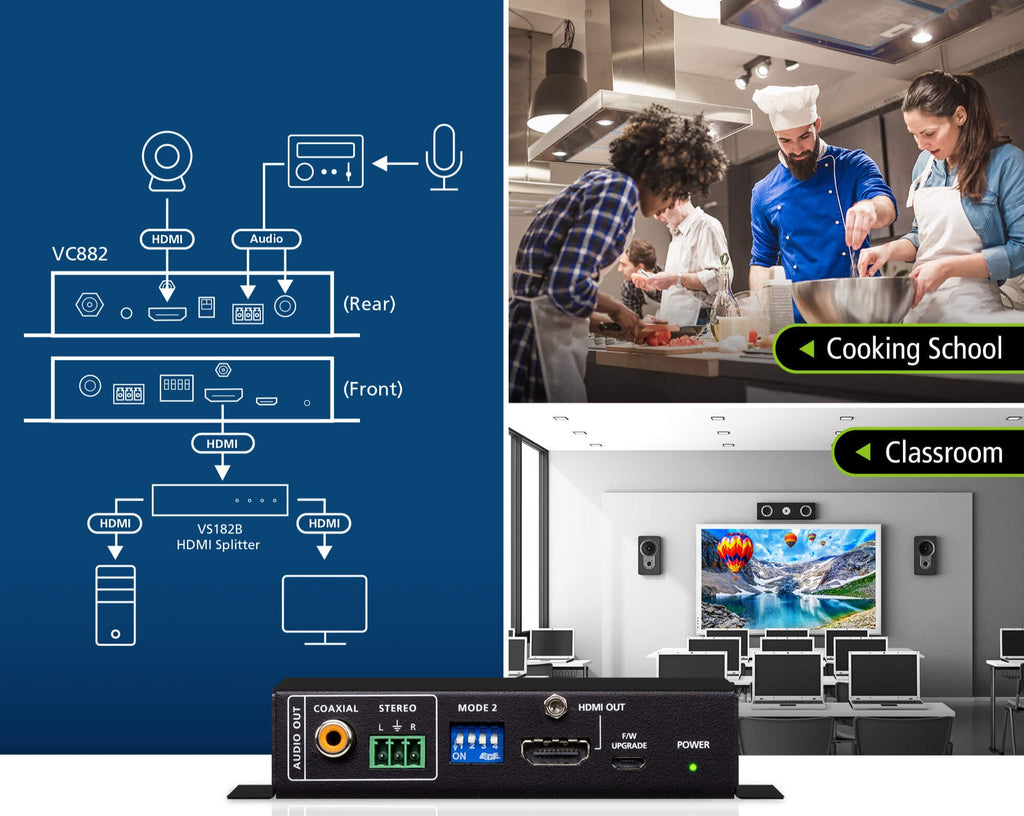

VC882 provides both Audio Embedder and De-Embedder , and can switch between the two modes as needed. Users can capture HDMI-In audio De-Embed to a monitor (HDMI-Out) and audio system (Digital & Stereo Audio-Out) to provide better audio-visual enjoyment, and can also integrate Embed with an HDMI video source and audio signals (Digital & Stereo Audio-In) , with an HDMI as integrated output, which can more flexibly structure the entire audio-visual system.

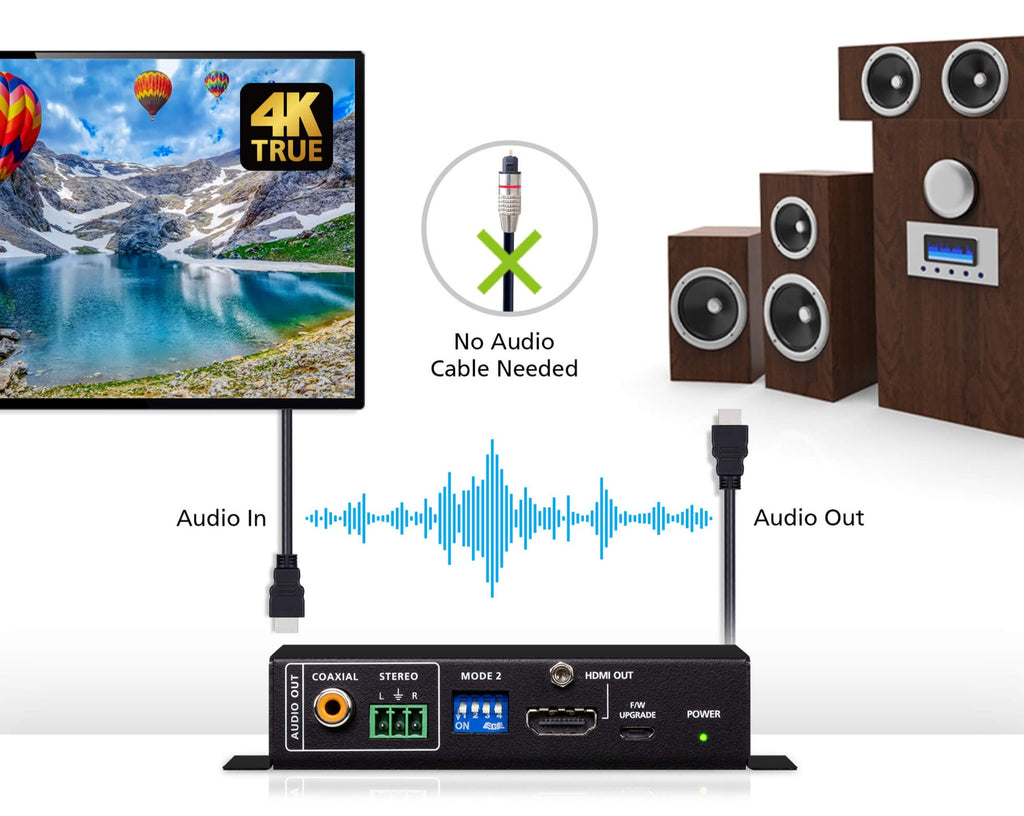

Audio Return Channel Audio return
VC882 is compatible with Audio Return Channel (ARC) , allowing users to transmit audio without connecting additional audio cables, simplifying complex audio wiring configurations.
