Features
- Extend the distance between HDMI signal sources and display devices
- Use Cat 5e cable to extend transmission distance
- Stretch 1080p up to 40 meters
- Video resolution – 1920 x 1200 up to 1080p
- HDMI (3D, deep color); HDCP compatible
- Supports Dolby True HD and DTS HD Master Audio

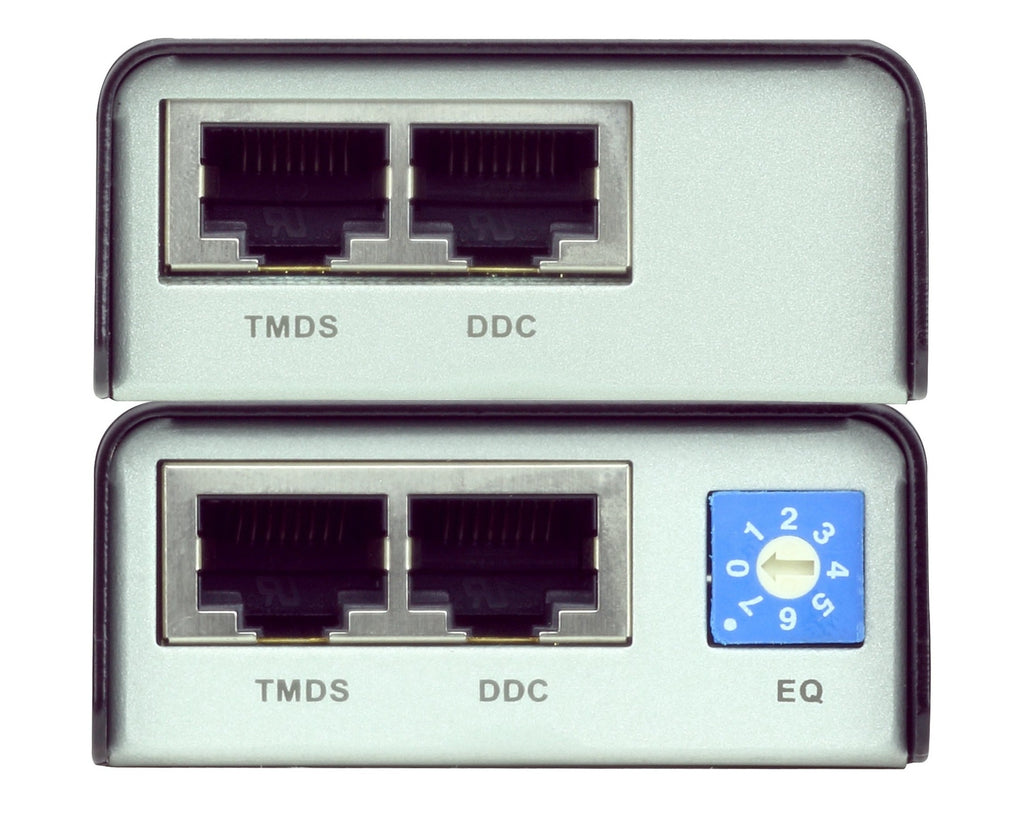

- 8-segment synchronized adjustment switch
- Compatible with DDC
Diagram Description
Specifications
| Function | VE800AR | VE800AT |
| Video output | ||
| interface | 1 x HDMI Type A female (black) | N/A |
| impedance | 100Ω | N/A |
| maximum distance | 3 meters (2L-7D03H) | N/A |
| video input | ||
| impedance | N/A | 100Ω |
| interface | N/A | 1 x HDMI Type A female (black) |
| maximum distance | N/A | 3 meters (2L-7D03H) |
| Video | ||
| maximum data transfer rate | 6.75 Gbps (2.25 Gbps per lane) | 6.75 Gbps (2.25 Gbps per lane) |
| Max pixel clock | 225MHz | 225MHz |
| specification |
HDMI (3D, Deep Color) HDCP Compliant |
HDMI (3D, Deep Color) HDCP Compliant |
| Maximum resolution/distance | Maximum 1080p@40 meters; 1080i@60 meters | Maximum 1080p@40 meters; 1080i@60 meters |
| sound source | ||
| output | 1 x HDMI Type A female (black) | N/A |
| enter | N/A | 1 x HDMI Type A female (black) |
| Connection interface | ||
| power supply | 1 x DC power socket | 1 x DC power socket |
| power consumption |
DC5V:0.61W:3BTU/h Notes: ● Unit = Watt: Indicates the typical power loss of the device without external load ● Unit = BTU/h: Indicates the power loss of the device when it is fully loaded |
DC5V:0.9W:4BTU/h Notes: ● Unit = Watt: Indicates the typical power loss of the device without external load ● Unit = BTU/h: Indicates the power loss of the device when it is fully loaded |
| working environment | ||
| operating temperature | 0-50°C | 0-50°C |
| Storage temperature | -20-60°C | -20-60°C |
| humidity | 0–80% RH, non-condensing | 0–80% RH, non-condensing |
| Body properties | ||
| shell material | Metal | Metal |
|
Weight g (grams), kg (kilograms), lb (pounds) |
0.16kg (0.35lb) | 0.16kg (0.35lb) |
|
Dimensions - length x width x height cm (centimeter), in. (inch) |
9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.) |
9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.) |
| Quantity per box | 5 pieces | 5 pieces |
| Note | For some rack-mounted models, the dimensions (length x width x height) in the specification table also represent (width x depth x height) | |
