ATEN True 4K HDMI Matrix Switch series

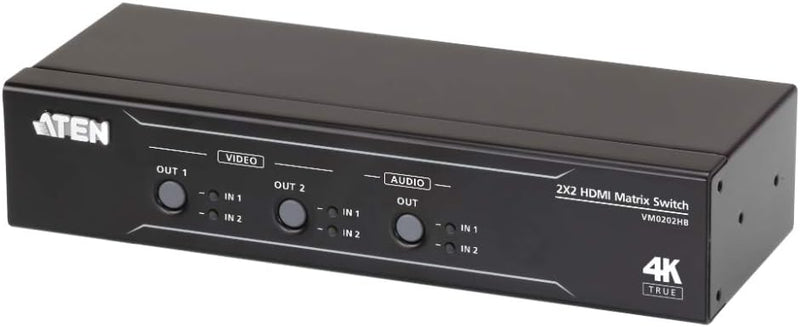

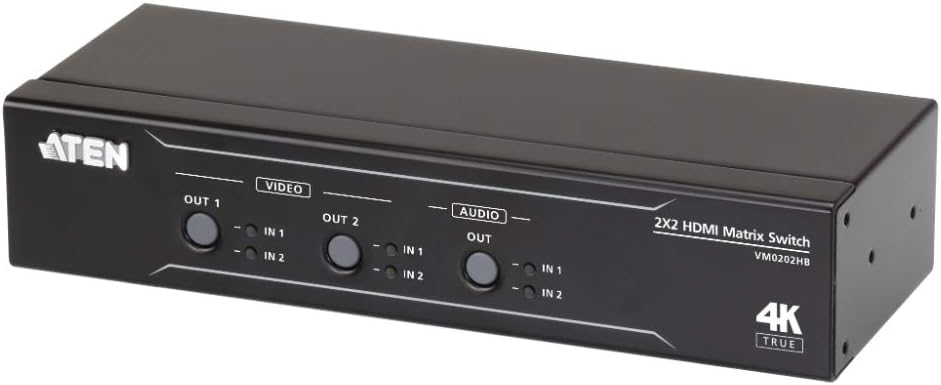

2 x 2 True 4K HDMI Matrix Switch – VM0202HB
with Audio De-embedder
● 2 HDMI signal inputs and outputs can be configured and switched flexibly
●True 4K@60Hz (4:4:4)/HDR
●600Mhz/18Gbits Max
●HDMI2.0 HDCP2.2
● Audio De-Embed capture audio output
● LCD display and panel buttons / remote control /RS-232 control
●Dolby True HD / DTS HD Master Audio
●CEC - Customer Electronics Control
In line with the rapid growth of the video broadcast solution market , ATEN International , a global leader in digital information sharing , has added the latest model – VM0202HB to its True 4K HDMI Matrix Switch series . True 4K 2- input 2 - output VM0202HB combines Switch and Splitter functions to freely share 2 sets of HDMI signals to 2 sets of display devices . It is equipped with HDMI 2.0 and complies with the HDCP 2.2 high-bandwidth digital content protection standard, and supports playback of True 4K (4 :4:4) Picture and HDR . Equipped with Audio De-Embed function, it can capture HDMI audio and output it to an external speaker via 3.5mm/Terminal . VM0202HB is equipped with multiple control modes, including panel buttons, IR remote control and RS-232 . Perfect for use with True 4K HDMI display devices set up in home theater environments , it is also suitable for enterprises, educational institutions, and other commercial environments.
HDMI 2 inputs and 2 outputs can be configured at will

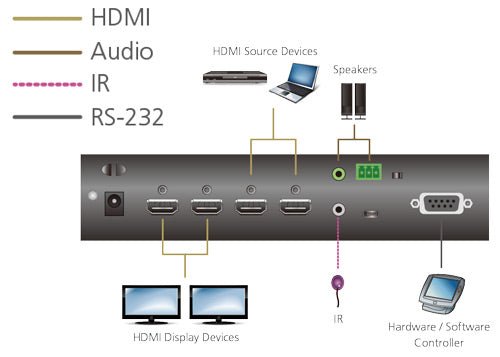

VM0202HB can combine Switch and Splitter functions. Administrators can allocate 2 sets of HDMI signals to 2 sets of display devices as needed .
True 4K@60Hz Cinematic Chroma 4:4:4
VM0202HB supports up to True 4K 4096 x 2160 / 3840 x 2160 @60Hz , and 4:4:4 color sampling (Chroma) displays the most realistic and original film production-level images.
High Dynamic Range (HDR)
VM0202HB has high dynamic range imaging technology (HDR) , which expands the exposure dynamic range than ordinary digital imaging technology, and can more accurately display the range of brightness from direct sunlight to the darkest shadows in the real world.
600Mhz/18Gbits Max HDMI 2.0/ HDCP 2.2
VM0202HB has a Pixel Clock Rate of up to 600MHz and a signal transmission rate of up to 18Gbps (6Gbps per lane) . In addition, it is equipped with the highest levels of HDMI 2.0 and HDCP 2.2 . It is perfectly compatible with patented 4K audio and video sources such as Bluray and set-top boxes . It is very convenient for both home and commercial use. .
Audio De-Embedder

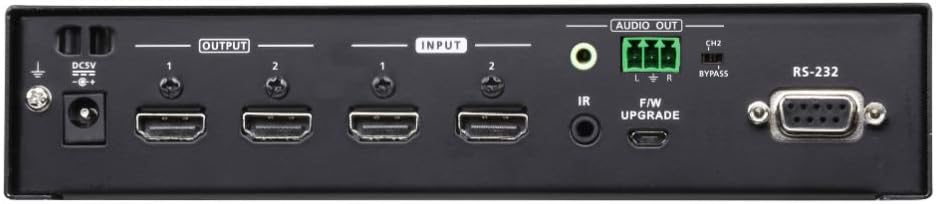

VM0202HB meets users' strict requirements for sound effects. It has a built-in stereo Audio De-Embedder . Users can select any HDMI audio track for real-time output through the panel buttons . The back of the machine is equipped with a 3.5mm terminal and Terminal Block for connecting to a professional speaker , which is particularly suitable for audio effects. Home entertainment systems, enterprises, educational institutions, and other commercial environments with higher requirements.

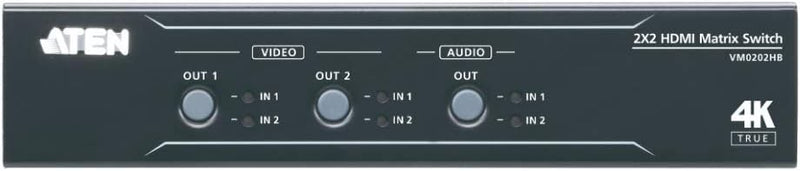

LCD display and panel buttons / remote control /RS-232 control
VM0202HB provides a variety of management methods. It can be controlled locally through a total of 3 methods including panel controls / IR remote control and RS -232 serial , making management and switching more convenient.
Power On Detection
VM0202HB is equipped with power switch detection . If one of the signal sources is turned off, it will automatically switch to the next player whose power is turned on.
Consumer Electronics Control (CEC - Customer Electronics Control)
VM0202HB supports consumer electronics control - CEC . CEC is used to transmit industrial-standard AV Link protocol signals. Multiple AV equipment connected through this HDMI interface can be controlled with a single remote control.
