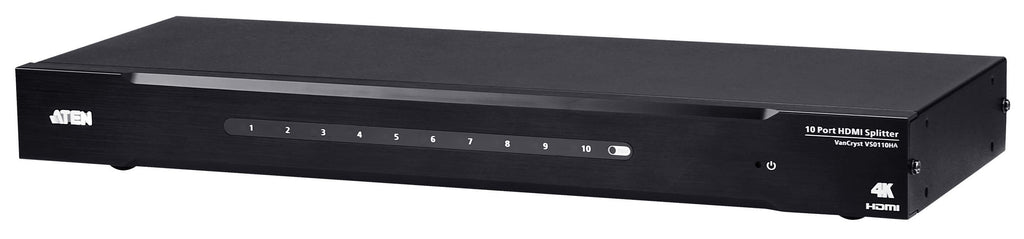

Features
- Connects one HDMI source to up to ten HDMI displays at the same time
- HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
- Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
- Long distance transmission from source to output - up to 15 m
- Built-in bi-directional RS-232 serial control port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Clear LED indication of device status
- EDID Expert™ – Selects optimum EDID settings for smooth power-up, display and use of the best resolution across different screens
- Plug-and-play
- Rack-mountable (1U design)

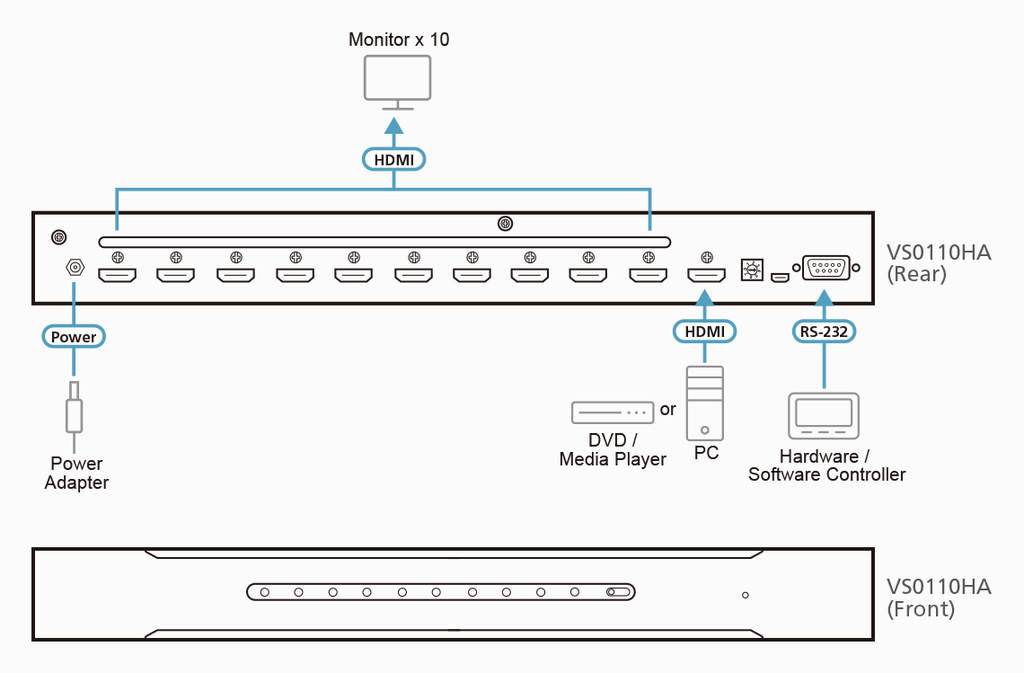

Diagram Description
Specifications

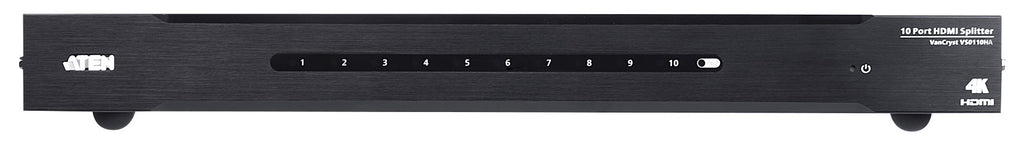

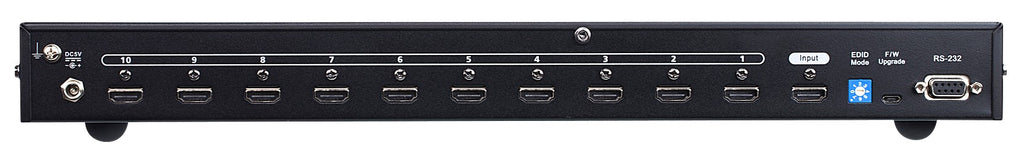

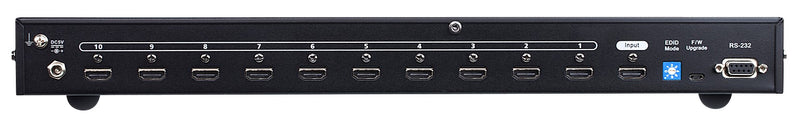

| LEDs | |
| Power | 1 x LED (Green) |
| Input | 1 x LED (Green) |
| Video Output | 10 x LED (Green) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5m (at 4K resolution) |
| Video Output | |
| Interfaces | 10 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 10m (at 4K resolution) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No |
| EDID Settings | EDID Switch x1 EDID Mode: Default (1080p) / Port 1 / Auto |
| Connectors | |
| Power | 1 x DC Jack |
| USB Port | 1 x Micro USB (FW upgrade) |
| Power Consumption | DC5V:4.34W:20BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.10 kg ( 4.63 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
