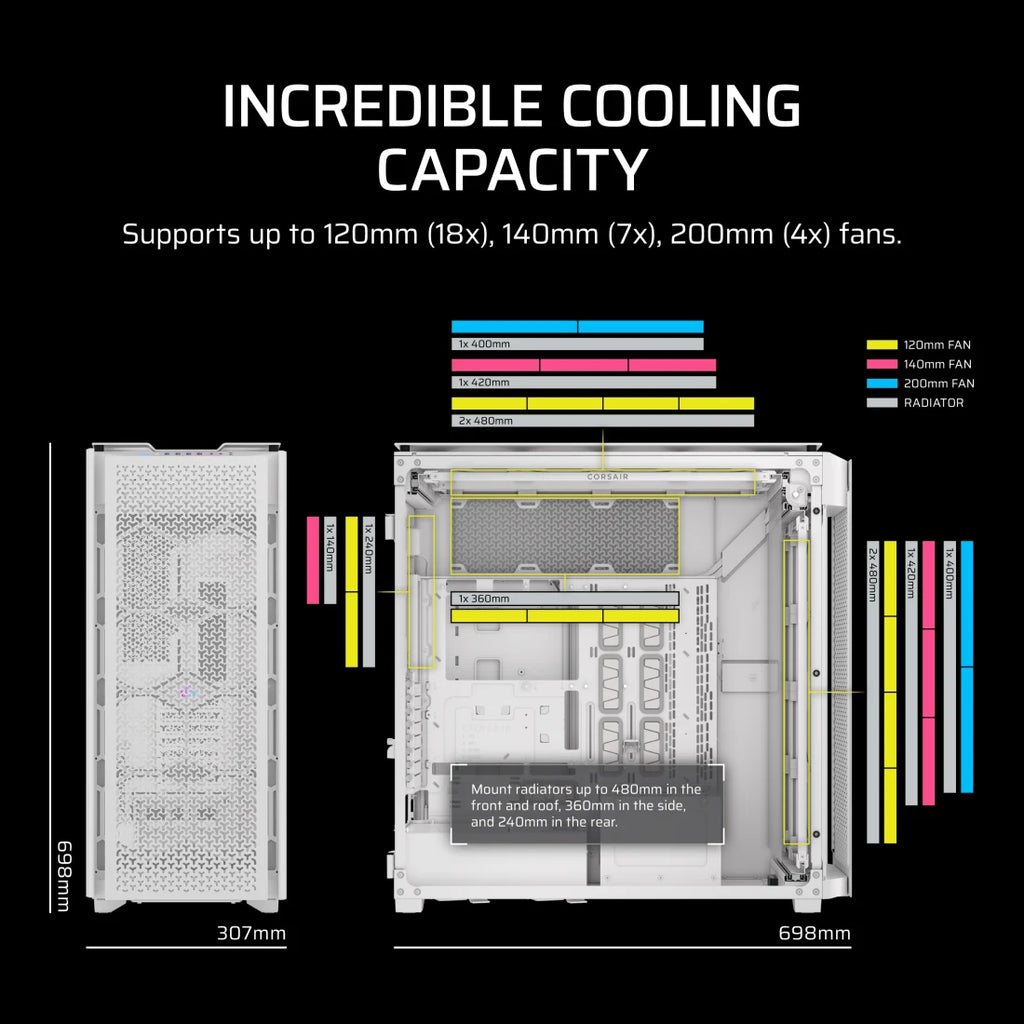

ROOM TO BREATHE
INCREDIBLE COOLING CAPACITY
A cavernous interior supports an extensive range of cooling configurations, accommodating up to 18x 120mm, 7x 140mm, or 4x 200mm fans.
Mount radiators up to 480mm in the front and roof, 360mm in the side, and 240mm in the rear for unmatched custom cooling loops.
Mount radiators up to 480mm in the front and roof, 360mm in the side, and 240mm in the rear for unmatched custom cooling loops.
COOLING MADE EASY

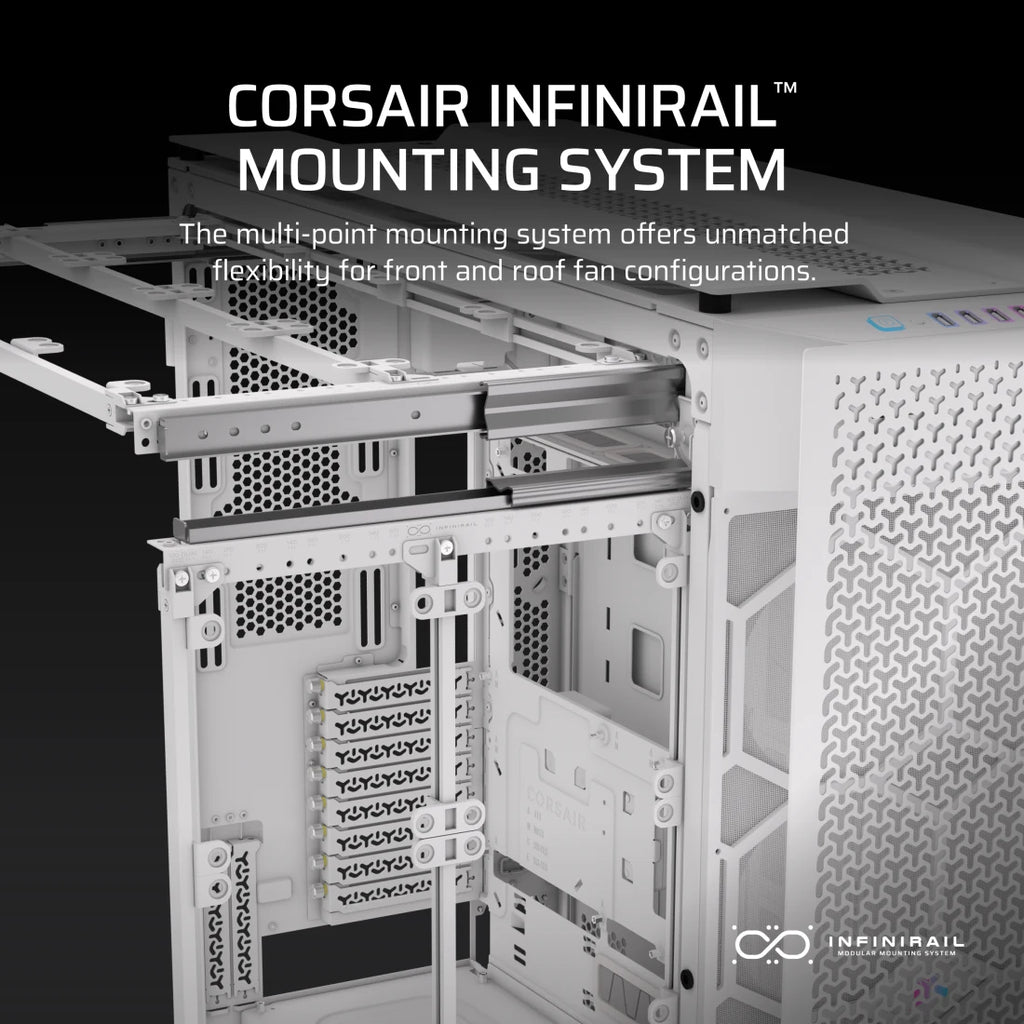

INFINIRAIL FAN MOUNTING SYSTEM
This multi-point mounting system offers unmatched flexibility for front and roof fan configurations.
Simply slide the rail to mount 120mm and 140mm fans in any position, ensuring targeted airflow without fixed vertical mounting constraints.
Simply slide the rail to mount 120mm and 140mm fans in any position, ensuring targeted airflow without fixed vertical mounting constraints.
THE FUTURE OF DIY BUILDING
iCUE LINK SMART COMPONENT ECOSYSTEM
EVERYTHING IN ONE PLACE
Manage the lighting and performance for all of your components and peripherals.
ONE CABLE. ONE CONNECTOR.
Link your components to each other in any order with a universal connector. If you can plug it in, it'll work.
MODULAR CONTROL SOFTWARE
Fine-tune your component settings and see all PC sensor data from an intuitive interface.
EFFICIENT VENTILATION
OPTIMIZED FOR AIRFLOW
An improved high-airflow steel front panel, now removable for easy cleaning, takes in all the cool air you need to keep your top-of-the-line components performing at their best.
IMPRESSIVE I/O SETUP
INTEGRATED USB TYPE-C HUB
The front panel features an integrated USB Type-C hub that allows you to take full advantage of the case’s I/O panel regardless of your motherboard’s capabilities. The integrated DAC drives the front panel audio ports for a premium experience.
ATTENTION TO DETAIL
BUILT FOR BUILDERS
30mm of clearance behind the motherboard tray provides ample space to route all your cables, and a removable hard drive cage offers additional flexibility to accommodate sprawling custom-cooled setups.
A JOY TO BUILD IN
The 9000D RGB AIRFLOW incorporates the latest cutting-edge designs and features to make building easier and more intuitive.
REUSABLE SCREW BOX
Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.
QUICKTURN FAN SCREWS
As robust and secure as traditional screws, CORSAIR QuikTurn™ fan screws make adding fans to your system a breeze, useful when you’re filling up a case this size.
DOUBLESHOT GROMMETS
Enjoy frustration-free cable installation with soft rubber inner grommets for easy cable passthrough and hard rubber outers that securely hold the grommet in place.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 18x 120mm fans, plus versatile mounting options including multiple 480mm radiators in the front and roof.
The 9000D RGB AIRFLOW has more than enough space to accommodate and cool your most ambitious build.
MODERN FRONT PANEL I/O
The front panel features an integrated USB Type-C hub that streamlines connectivity and offers 2x USB 3.2 Gen 2 Type-C and 4x USB 3.2 Gen-1 Type-A ports.
1
Power Button
2
Reset Button
3
4x USB 3.2 Gen 1 Type-A Ports
4
2x USB 3.2 Gen 1 Type-C Ports
5
Headphone / Mic Combo Jack
TWO-YEAR WARRANTY
Our award-winning service means you can enjoy your gear worry-free.
Specification
| Case Height | 698 |
|---|---|
| Case Length | 698 |
| Case Width | 307 |
| Material | Steel, Tempered Glass |
| Color | WHITE |
| Weight | 34.38 |
| Radiator Compatibility | 480mm, 420mm, 400mm, 360mm, 280mm, 240mm, 200mm, 140mm, 120mm |
| Maximum GPU Length | 400mm |
| Maximum CPU Cooler Height | 180mm |
| Maximum PSU Length | 225mm |
| Compatible Liquid Coolers | H60, H100, H115, H150, H170, TITAN |
| Case Size | Super-Tower |
| Case Power Supply | ATX |
| Case Expansion Slots | 8 Horizontal (or 4 Vertical) + 2 Vertical (For Secondary Motherboard) |
| Case Drive Bays | (x5) 3.5in (x6) 2.5in |
| Case Front IO | (2x) USB 3.2 Gen 2 Type C, (4x) USB 3.2 Gen 1 Type A, (1x) Audio in/out |
| Case Window | Tempered Glass |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 5 |
| Internal 2.5" Drive Bays | 6 |
|---|---|
| Radiator Support - Top | 480mm, 420mm, 400mm, 360mm, 280mm, 240mm, 200mm, 140mm, 120mm |
| Radiator Support - Front | 480mm, 420mm, 400mm, 360mm, 280mm, 240mm, 200mm, 140mm, 120mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 240mm |
| Radiator Support - Rear | 240mm, 140mm, 120mm |
| Fan Support - Top | 8x 120mm, 3x 140mm, 2x 200mm |
| Fan Support - Front | 8x 120mm, 3x 140mm, 2x 200mm |
| Fan Support - Bottom | None |
| Fan Support - Side | 3x 120mm |
| Fan Support - Rear | 2x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x HD Audio; 1x USB Type-E; 1x Supplemental SATA Power; 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | No Fans Included |
| Dust Filtration | Yes |
| Cable Routing Space | 76mm |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
