描述
Features
- Advanced XLR to USB-C connection.

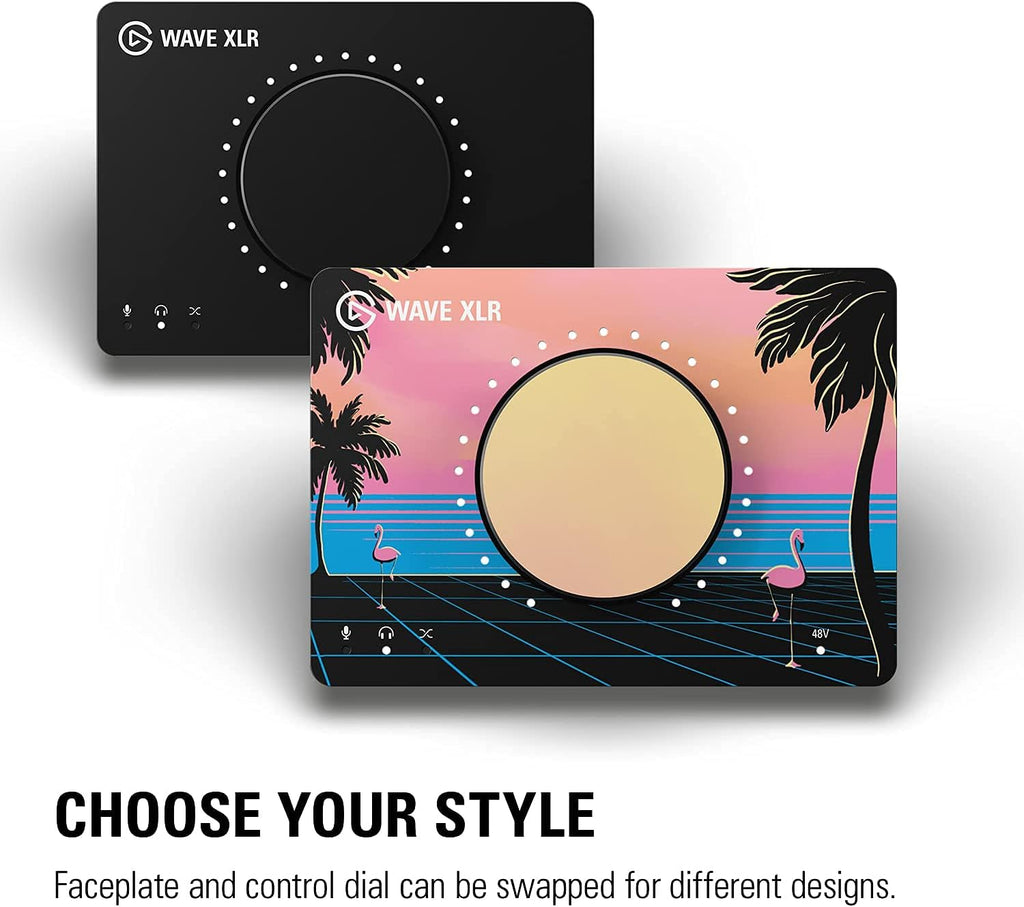

- Panels and control dials available in different designs
- Use the Wave Link app to mix your Wave XLR with multiple sources and create two independent mixes

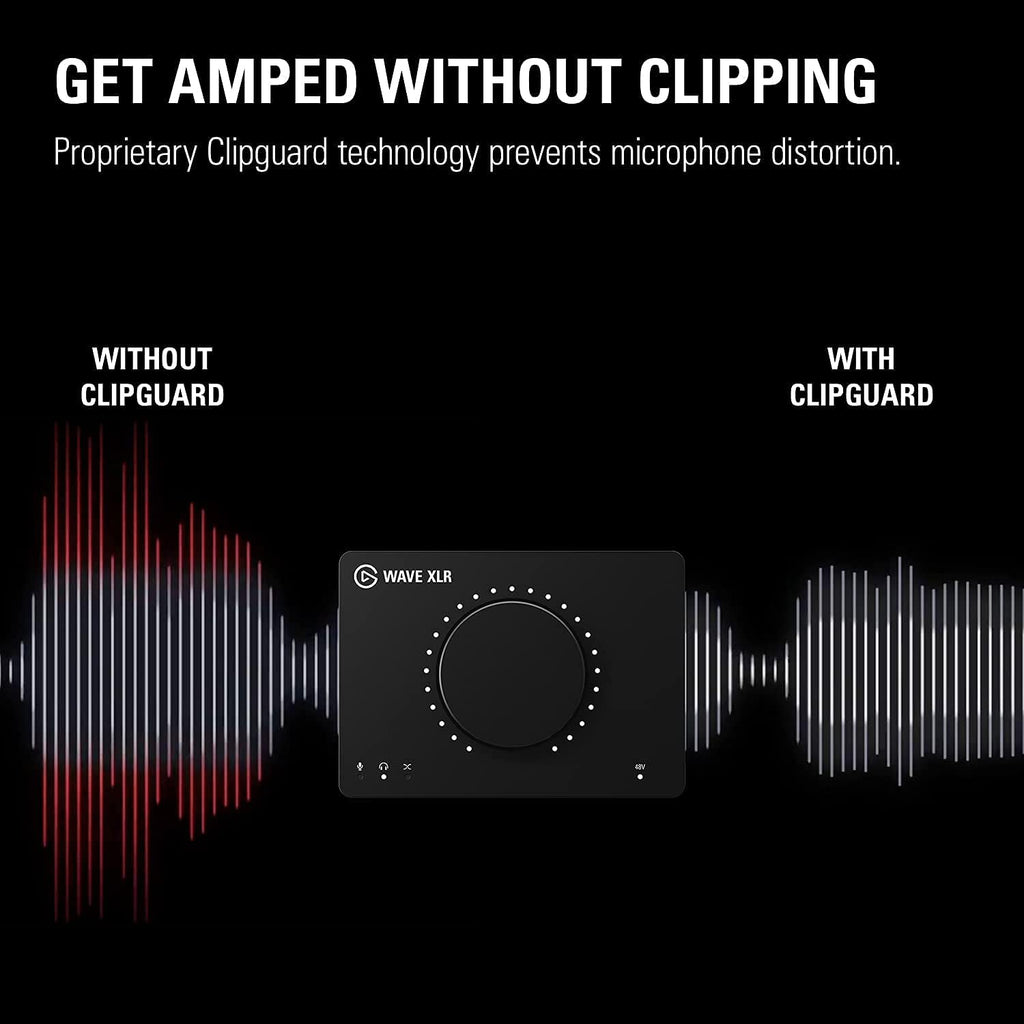

- Proprietary Clipguard technology prevents microphone distortion
- Ultra-low noise gain of up to 75 dB to amplify insensitive microphones
- 48 V phantom power driven condenser microphone

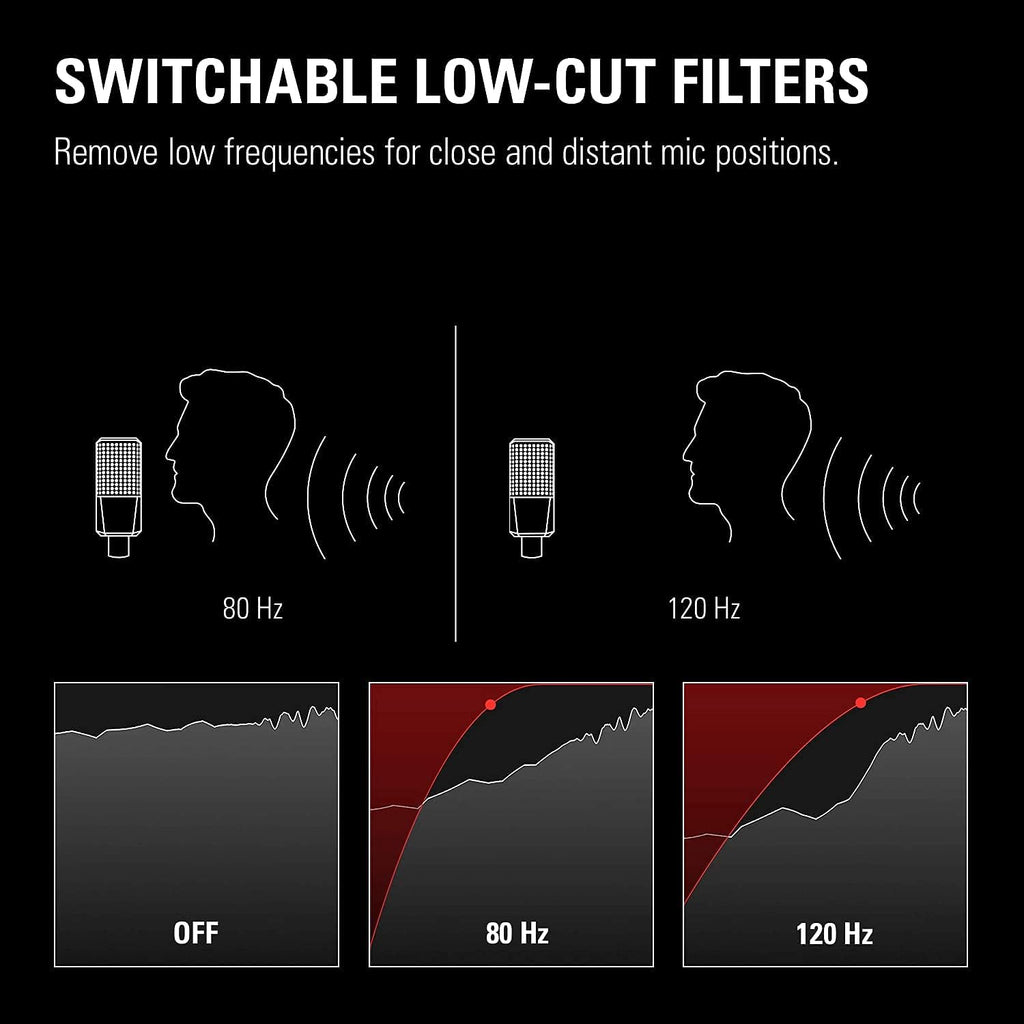

- Dual selectable filters remove low frequencies
- High-power 3.5mm headphone jack provides clear, zero-lag monitoring
- Capacitive mute button mutes microphone feed with the lightest touch

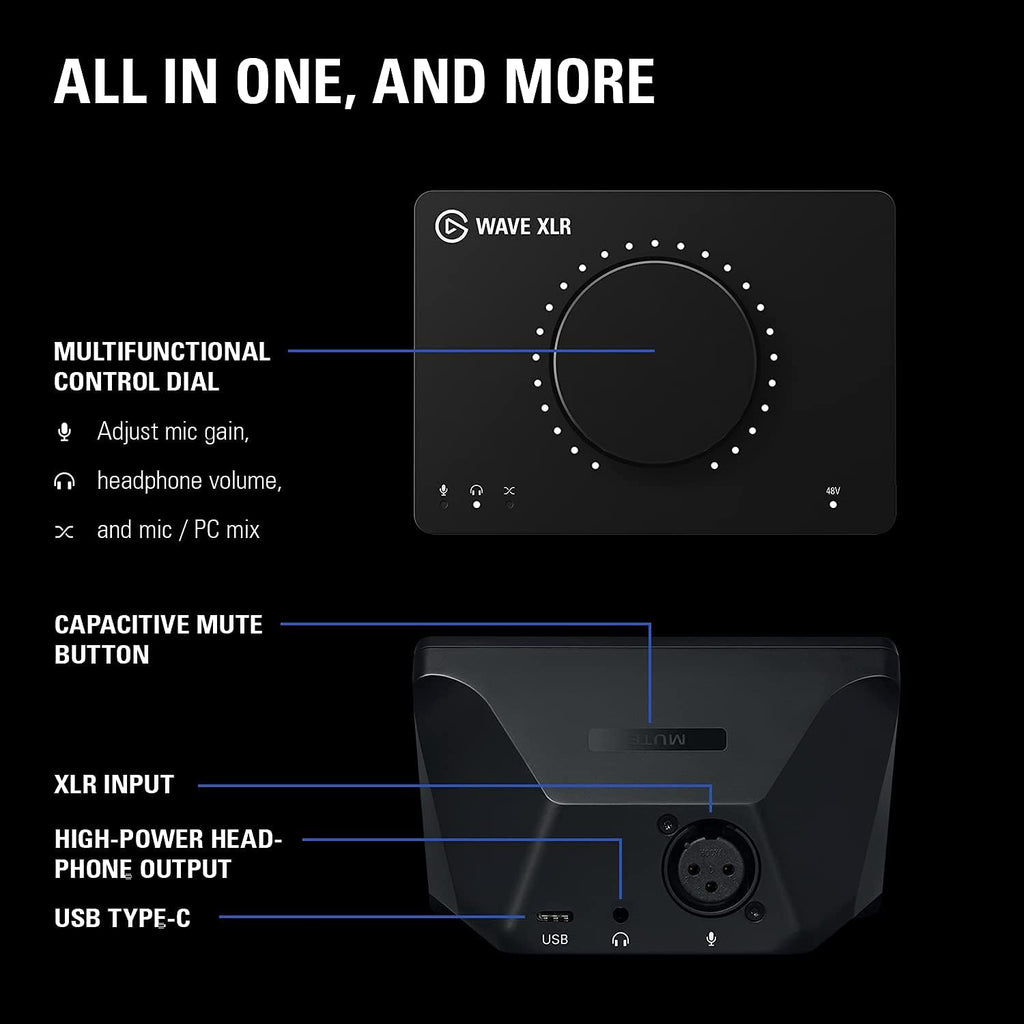

- Multi-function control dials for mic gain, headphone volume and mic/PC mix
Product Description
BRING YOUR MIC

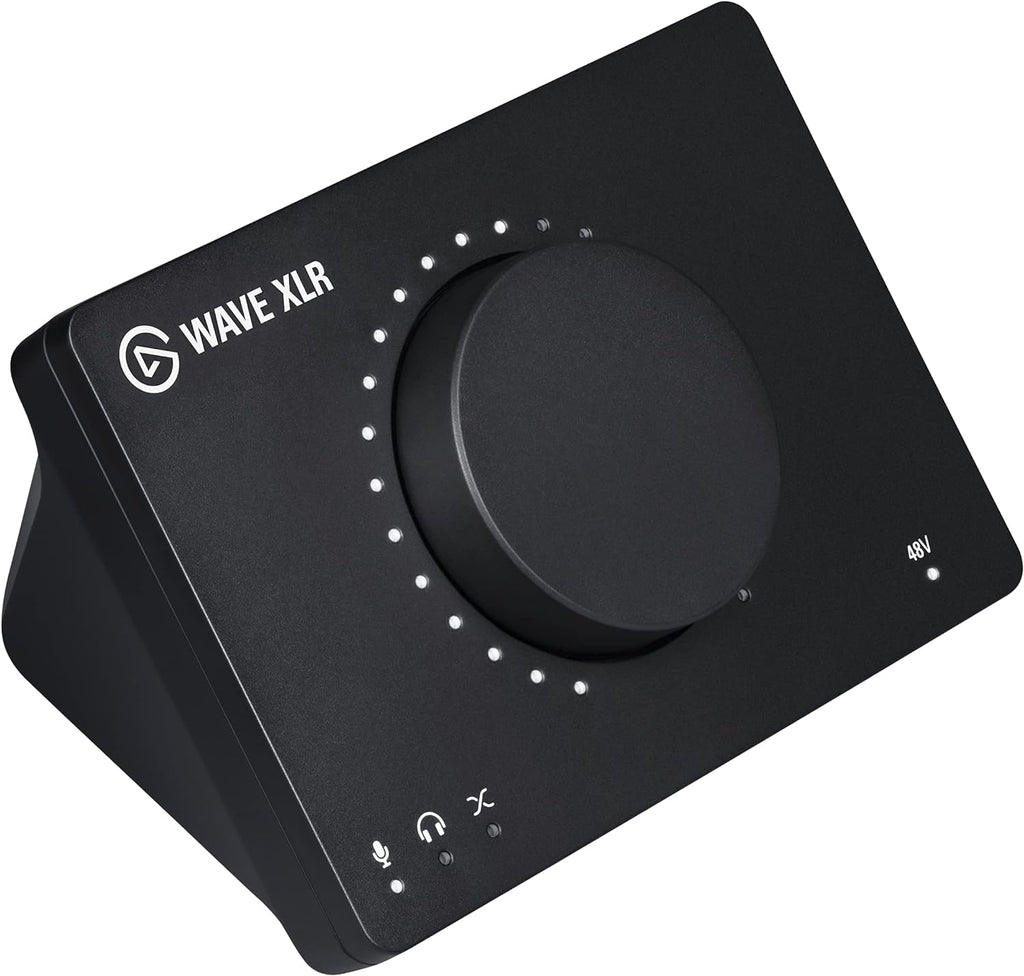

You love your XLR microphone. You'll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.

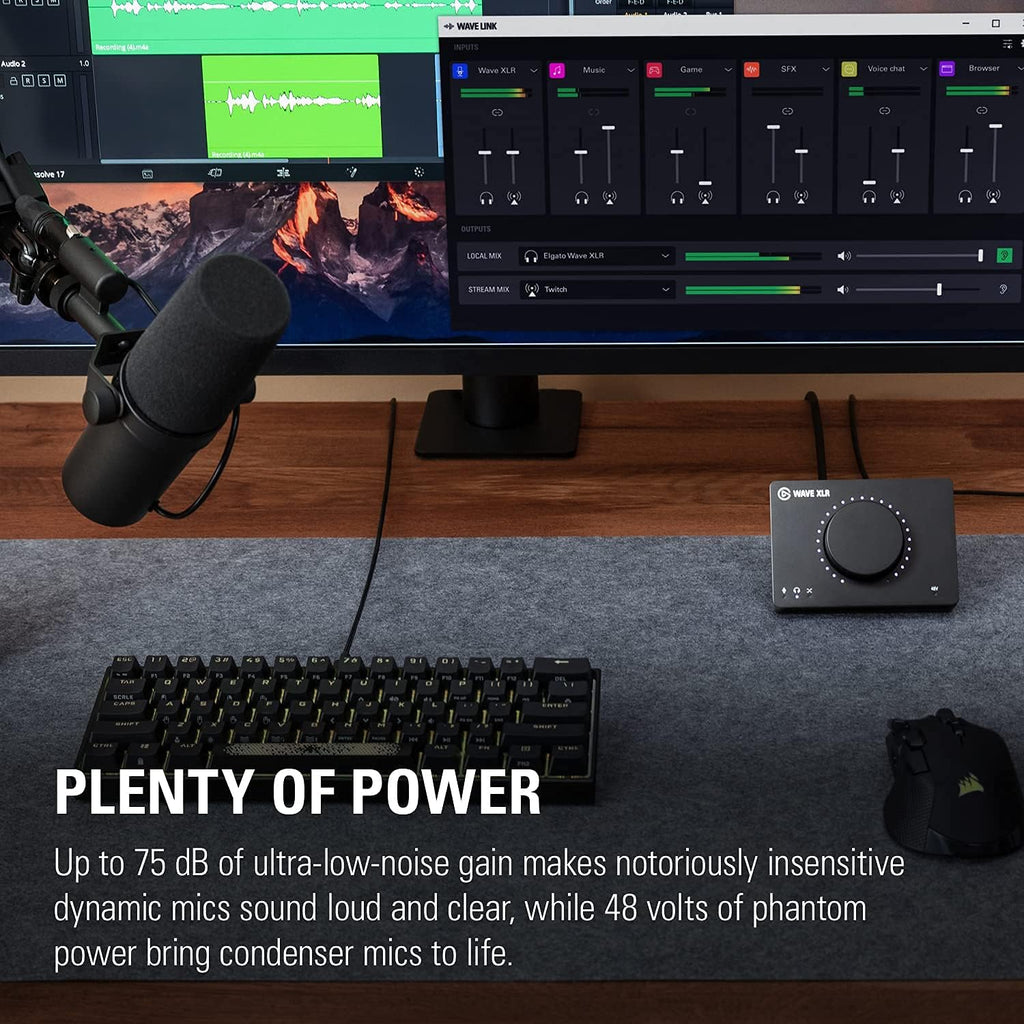

PLENTY OF POWER
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.
MULTI-CHANNEL COMMAND
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Independent input channels let you blend audio sources in real time.

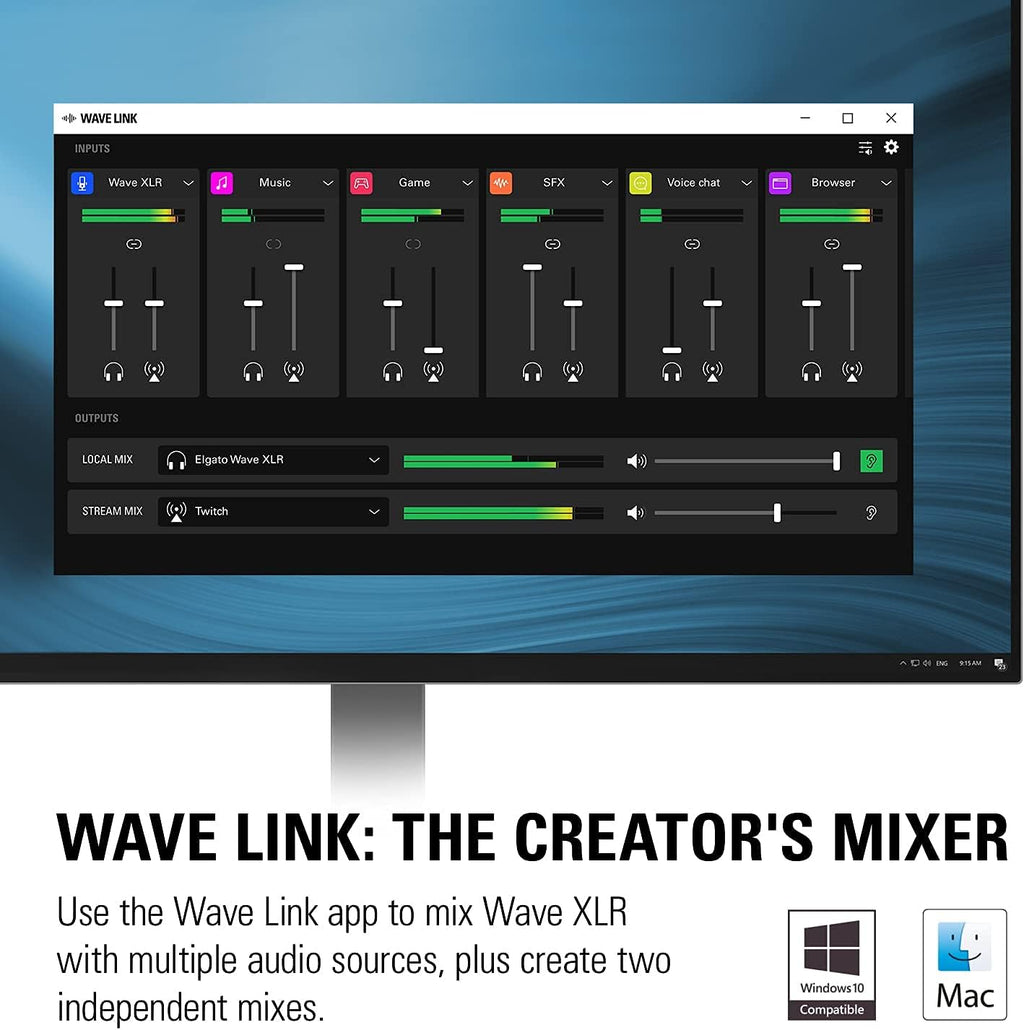

Intuitive software custom built for content creation, Wave Link gives you ultimate control of your Twitch stream, YouTube video or podcast audio.
*Multiple Wave mics are not supported at this time
EFFORTLESS CONTROL
Mute copyrighted music in your stream mix to avoid violations, and keep listening via your monitor mix.
STREAM READY
Add Wave Link as a master audio source in OBS Studio to take complete control of your audio workflow.
SMART PROCESSING
Wave Link uses less than 1% of your CPU* - no external audio processing hardware required.
*running on Windows 10![]()
Product Specifications
- FREQUENCY RESPONSE: 20 Hz - 20 kHz
- DYNAMIC RANGE: 100 dB (120 dB Clipguard engaged)
- EQUIVALENT INPUT NOISE (EIN): -130 dBV @ 60 dB gain
- GAIN RANGE: 0 - 75 dB
- PHANTOM POWER: 48VDC, 7mA
- MAXIMUM INPUT LEVEL: 10 V @ 0 dB gain (Clipguard engaged)
- MAXIMUM OUTPUT LEVEL: 77 mW
- RESOLUTION: 24-bit
- SAMPLE RATE: 48 / 96 kHz
- INTERFACE: USB-C
