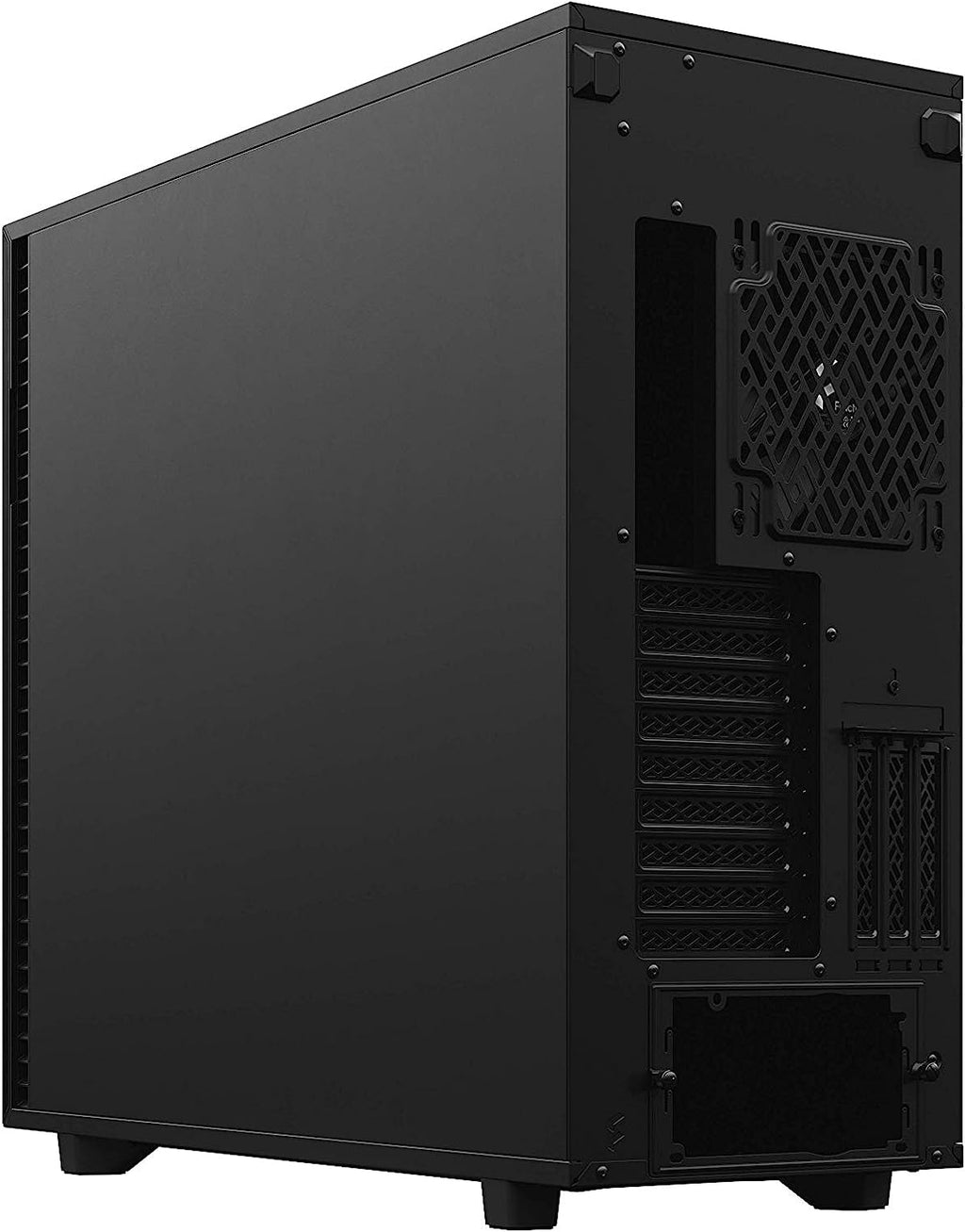

Fractal Design Define 7 XL Black ATX Case FD-C-DEF7X-01

Specification

• 3.5"/2.5" Hard Drive Bay
  6 + 2 included, can hold up to 18
• 2.5-inch dedicated hard drive bay
  2 included, can hold up to 5
• 5.25" Hard Drive Bay
  2
• expansion slot
  9 + 3
• front panel interface
  1 USB 3.1 Gen 2 Type-C port, 2 USB 3.0 ports, 2 USB 2.0 ports, audio input/output, power button, reset button
• Number of fans that can be installed
  11 120mm fans or 9 140mm fans
• front fan
  4 x 120mm fans or 3 x 140mm fans (2 x Dynamic X2 GP-14 included)
• top fan
  4 x 120mm fans or 3 x 140mm fans
• rear fan
  1 x 120/140mm fan (1 x Dynamic X2 GP-14 included)
• bottom fan
  2 120/140mm fans
• filter
  1 set of top covers, 2 sets of front panels, and 1 set of bottom panels (covered area includes power supply)
• Rubber cable management hole
  have
• Magic cable management tape
  have
• Tighten the captive screws
  HDD hard disk shelf, SSD hard disk shelf
• left side panel
  Industrial sound-absorbing steel plate or tempered glass
• right panel
  Industrial silencer steel plate

Dimensions

• Motherboard compatibility
  E-ATX/ATX/mATX/ITX/EE-ATX/SSI-CEB/SSI-EEB
• Power supply compatibility
  ATX
• Maximum length of power supply
  250mm (after installing 2 HDD cages)
• Maximum length of display card
  Standard layout: 340mm - Open layout: 530mm (505mm + front fan installed)
• CPU cooler height limit
  185mm
• front radiator
  Maximum support 480/420mm
• Top radiator
  Maximum support 480/420mm
• rear radiator
  120mm
• Bottom radiator
  Maximum support 240/280mm
• wiring space
  30 mm
• Vertical GPU Support (with Flex VRC-25)
  65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Set contents

• Chassis size (length*width*height)
  604 x 240 x 566mm
• Chassis dimensions (without feet/protrusions/screws)
  590x240x548mm
• Package Size (L*W*H)
  646 x 357 x 708mm
• net weight
  16.53kg
• total weight
  18.73kg
• Volume
  77.6 liters
