Cables
 |
 |
 |
 |
 |
 |
 |
|

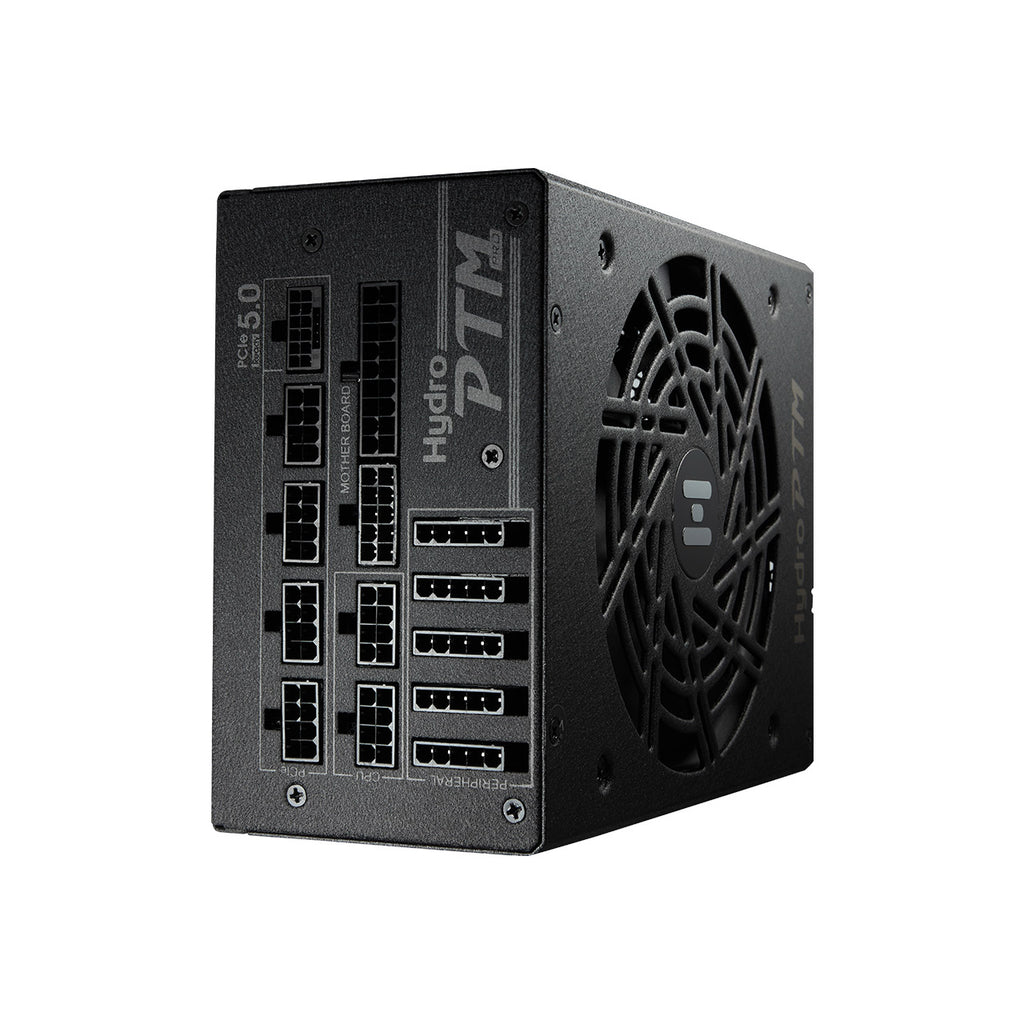

| ATX 20+4 | 4+4 PIN | 12VHPWR | PCIe 6+2 | SATA | Molex (PERIPHERAL) |
Floppy | |
| Connectors | 1 | 3 | 1 | 6 | 14 | 5 | 1 |
AC/DC
|

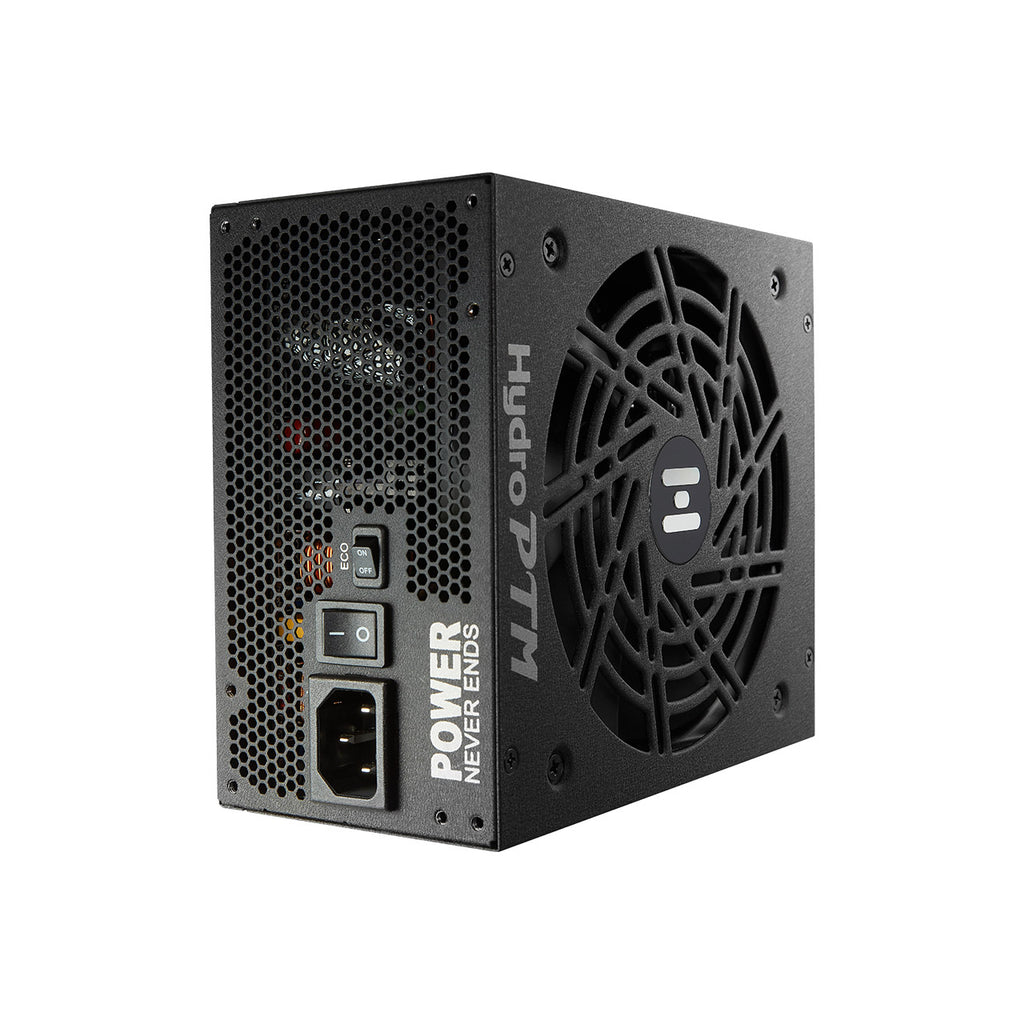

AC Input |
100-240Vac~ 14-9A 50-60Hz (Not for China) | ||||
| 200-240Vac~ 9A 50-60Hz (Only for China) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 100A | 0.3A | 3A |
| Max Combined Power | 120W | 1200W | 18.6W | ||
| Total Power | 1200W | ||||
SPECIFICATIONS

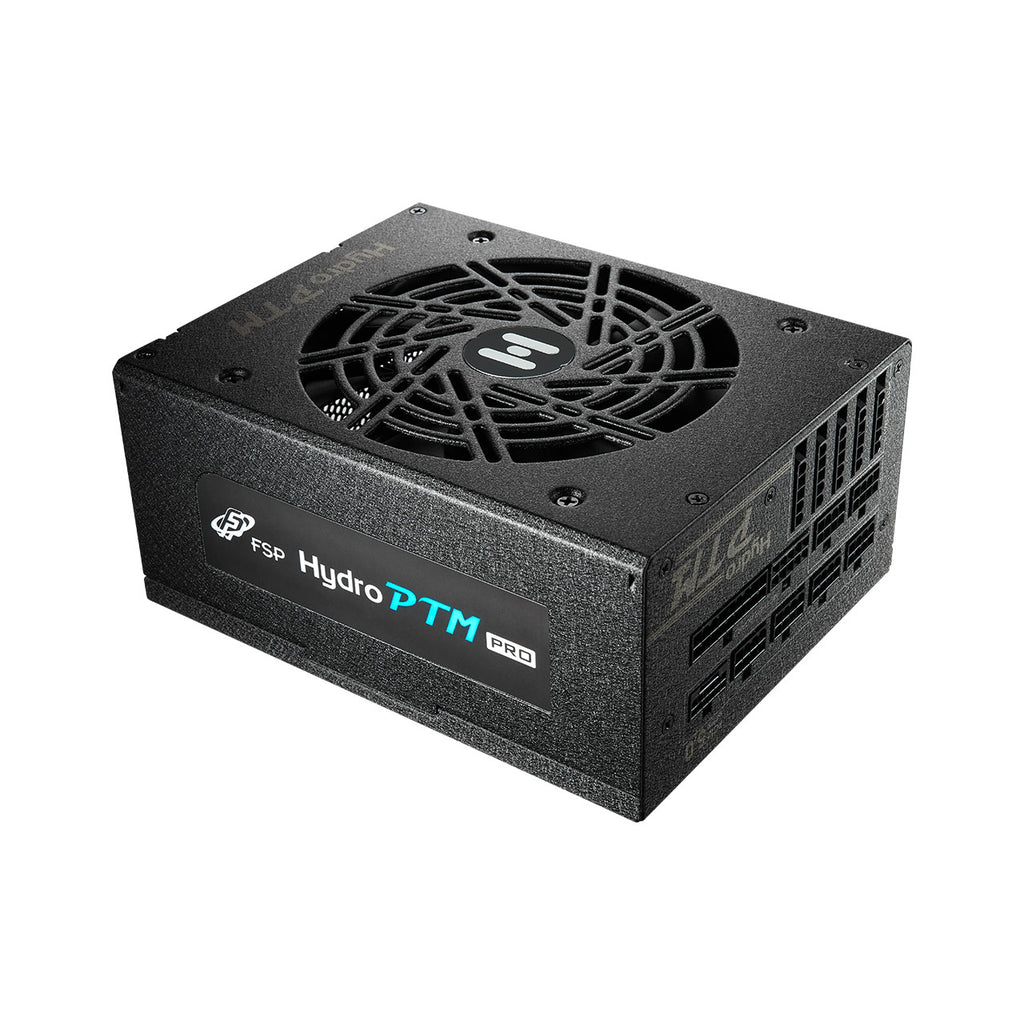

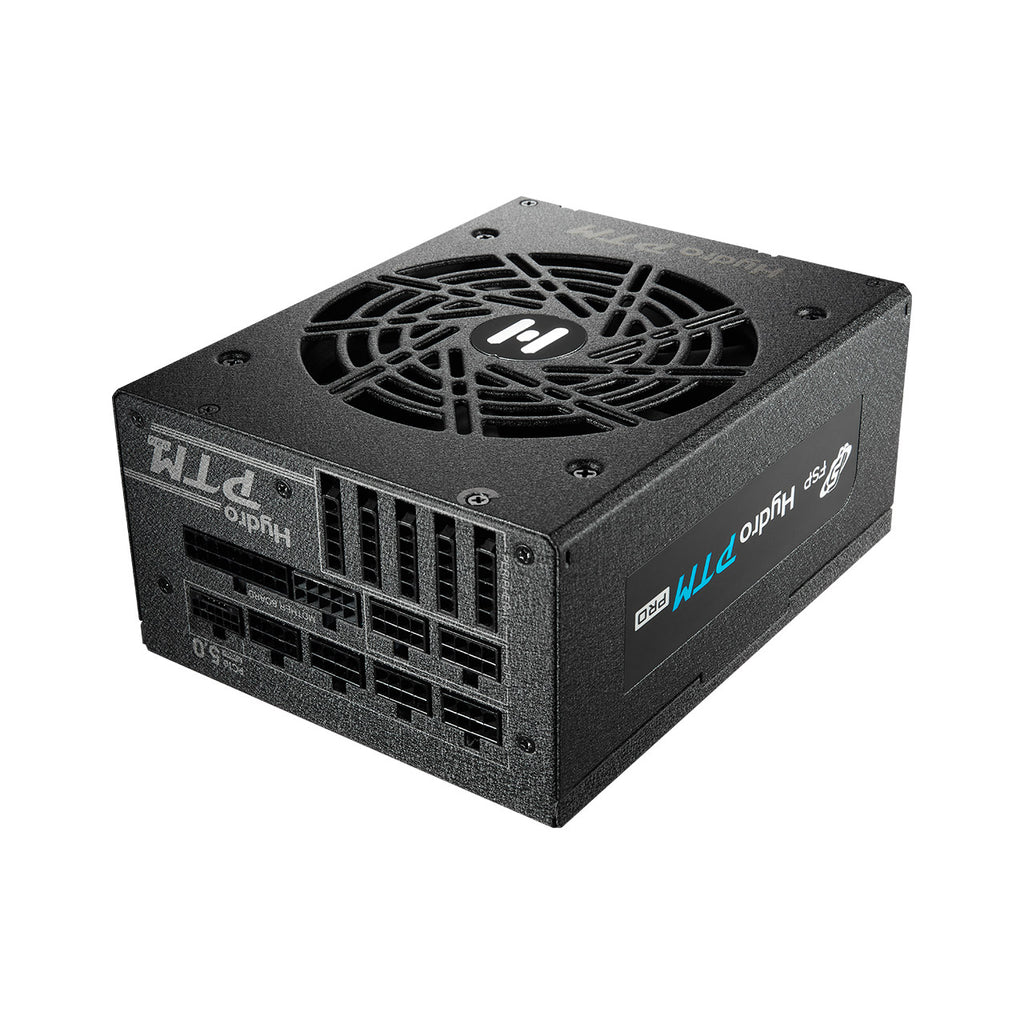

| Model | HPT2-1200M,Gen5 |
|---|---|
| Rated Output Power | 1200W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| Input Voltage | 100-240V |
| Input Current | 14-9A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥ 92% |

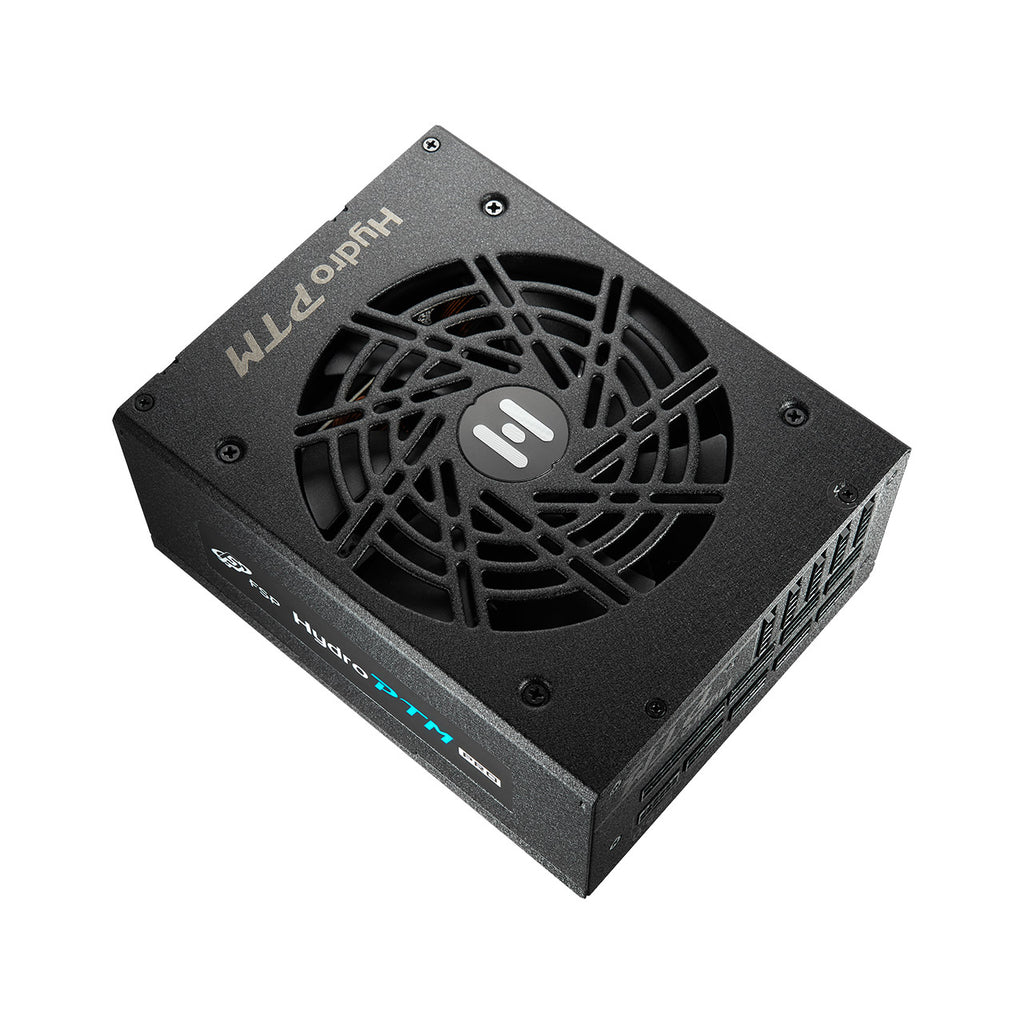

| Fan Type | FDB Fan, 135mm |
| Dimensions(L x W x H) | 150 x 190 x 86 mm |
| Protection | OCP, OVP, SCP, OPP, OTP, UVP |
