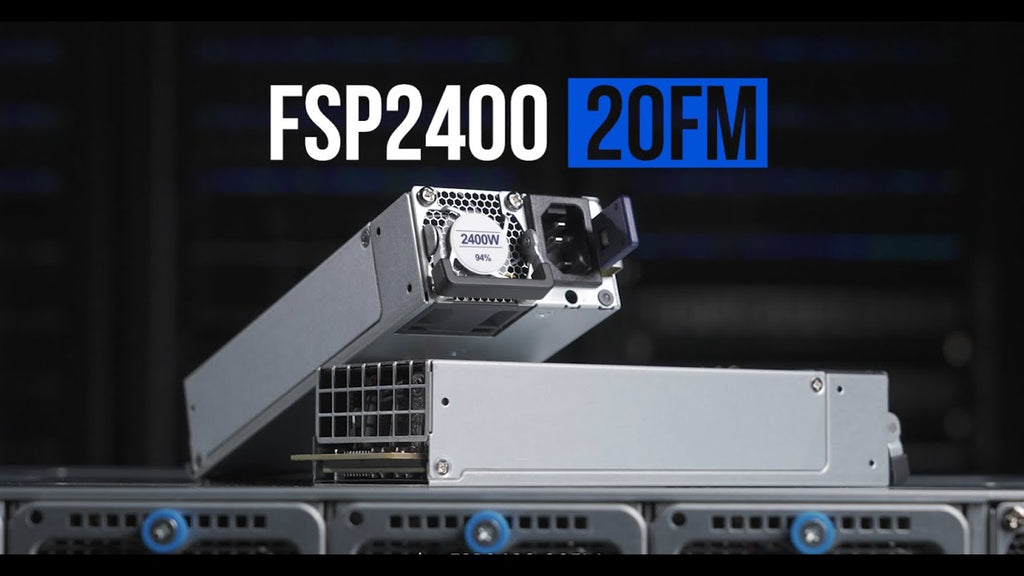

FSP2400-20FM
DESCRIPTION

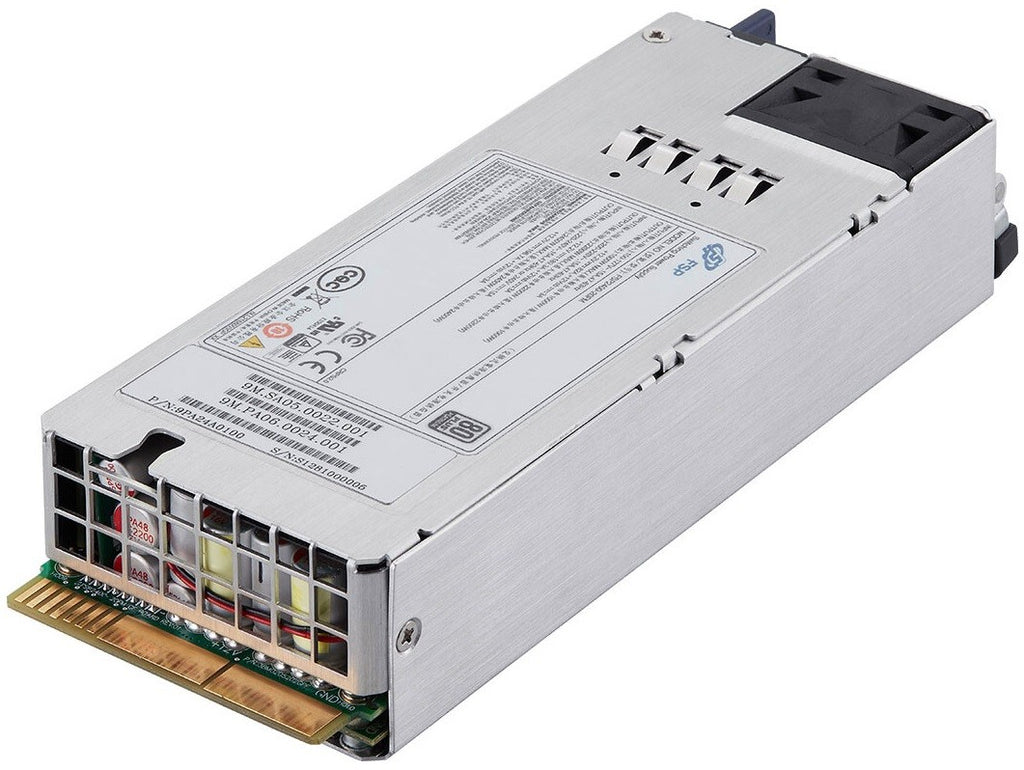

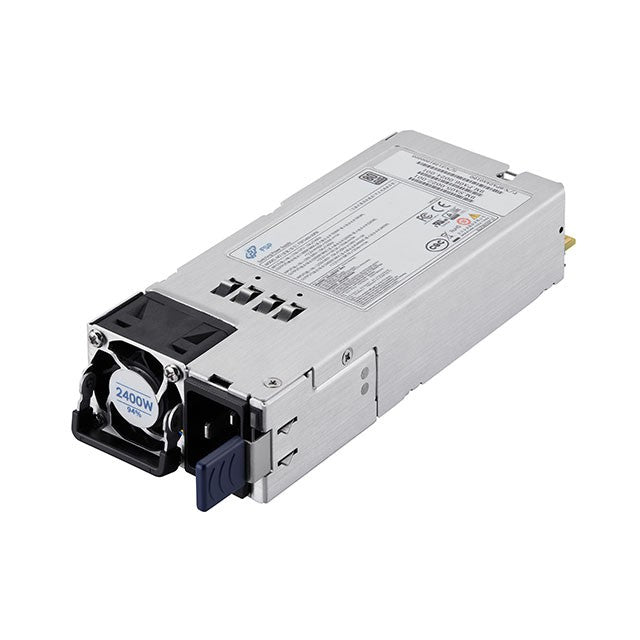

FSP2400-20FM is a redundant power supply module base on CRPS standard. The power supply comes to offer the total power
capacity up to 2400 Watts, and provides PMBus features, which makes it be able to communicate with motherboard. In addition, the
power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The
product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
Features:
• Certified CB 62368-3 & CB 60950-1
• Meet 80 Plus Platinum
• Meet CRPS Standard
• Meet PMBus 1.2
• Design for 5,000 Meter above sea level
• High Reliability
• Low Ripple & Noise
• Over Current Protection
• Over Temperature Protection
• Over Voltage Protection
GENERAL SPECIFICATIONS
Dimension (L x W x H): 185 x 73.5 x 39 (mm) Environment
7.28 x 2.89 x 1.53 (inch) Working temperature: 0°C to 55°C
Storage temperature: -40°C to + 70°C
Efficiency: 80 Plus Platinum Working humidity: 5% to 90% RH non-condensing
Storage humidity: 5% to 95% RH non-condensing
Hold-up time: 70% of Max. load at 12V >11ms
MTBF (SR-332 Issue 2): 500,000 hours of continuous operation at 50°C, 100% output load
Operating altitude: 5,000 meters above sea level Applications: Storage System , Workstation, Industry Controller
INPUT SPECIFICATIONS
Input voltage: 90-264Vac or HVDC (180V~310V)
Input frequency: 47-63Hz
OUTPUT RATING
| Outputs | Input Voltage | Min.Current | Max.Current | CLST Peak20 Sec. duration | CLST Peak10m Sec. duration | Pmax Peak100μ Sec. duration |
| +12V | 90~140V | 1A | 82A | Rated +10.0A | Rated +72.0A | Rated +105.0A |
| +12V | 180~200V | 1A | 180.3A | Rated +10.0A | Rated +72.0A | Rated +105.0A |
| +12V | 200~264V | 1A | 196.7A | Rated +10.0A | Rated +72.0A | Rated +105.0A |
| +12Vsb | 90~264V | 0.0A | 3.0A | 4.0A | NA | NA |
