描述
Complies with Intel® Power Design Guide ATX 3.1
Following the latest ATX3.1 regulation and PCIe Gen 5, the PSUs can hold up to the maximum total power excursion.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® with gold certifications for lower power loss, less heat, and quieter operation.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

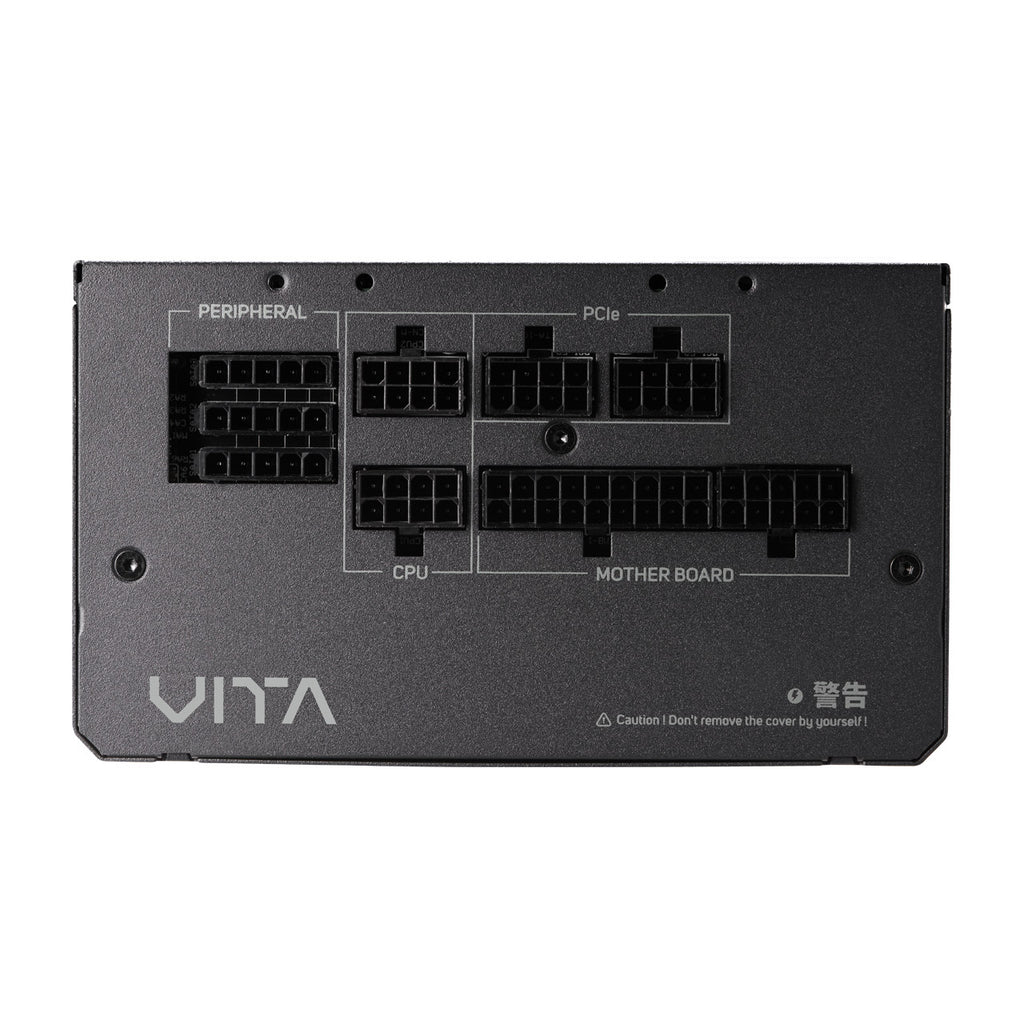

Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
105°C Japanese Bulk Capacitor
Maximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan.
120 mm Hydraulic Bearing (HYB) Van
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.

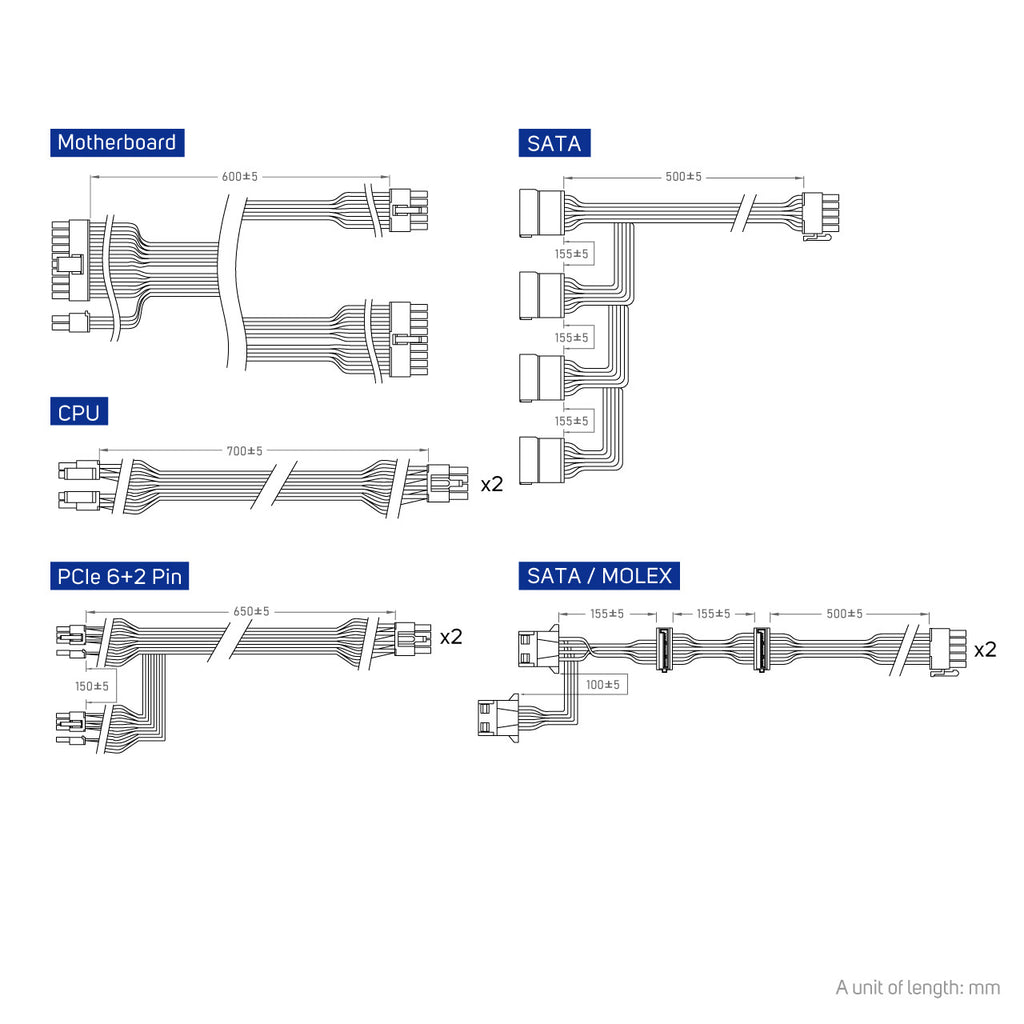

Cables
 |
 |
 |
 |
 |
|
| MB 20+4PIN | CPU 4+4 PIN | PCIe 6+2 PIN | HOURS | MOLEX | |
| Connectors | 1 | 2 | 4 | 8 | 4 |
AC/DC
|
AC Input |
100-240Vac~ 8-4 50-60Hz (Not for China) | ||||
| 200-240Vac~ 4A 50-60Hz (Only for China) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 54.17A | 0.3A | 3A |
| Max Combined Power | 100W | 650W | 3.6W | 15W | |
| Total Power | 650W | ||||
SPECIFICATION
| model | LIFE-650GM |
|---|---|
| rated power | 650W |
| Specification | ATX12V V3.1 |
| 80 PLUS certified | Gold |
| Input voltage | 100-240V |
| Input Current | 8-4A |
| input frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| efficiency | Conversion efficiency ≥90% |
| Fan type | HYB fan, 120mm |
| Dimensions (L x W x H) | 140×150×86 mm |
| operating temperature | 40°C |
| Protect | OCP, OVP, SCP, OPP, UVP, OTP |
