描述
Scanner type
ADF; CIS scanning technology; Flatbed
Digital sending standard features
Send to USB Drive
Digital sending optional features
Send to email; Send to PC
Scan resolution, optical
Up to 600 dpi (color and mono, ADF); Up to 1200 dpi (color and mono, flatbed)
Scan resolution, hardware
Up to 600 x 600 dpi (color and mono, ADF); Up to 1200 x 1200 dpi (color and mono, flatbed)
Enhanced scanning resolution
Up to 1200 dpi
Duty cycle (daily)
Recommended daily duty cycle: 3000 pages (ADF)
Bit depth
24-bit (external), 48-bit (internal)
Automatic document feeder scan speed

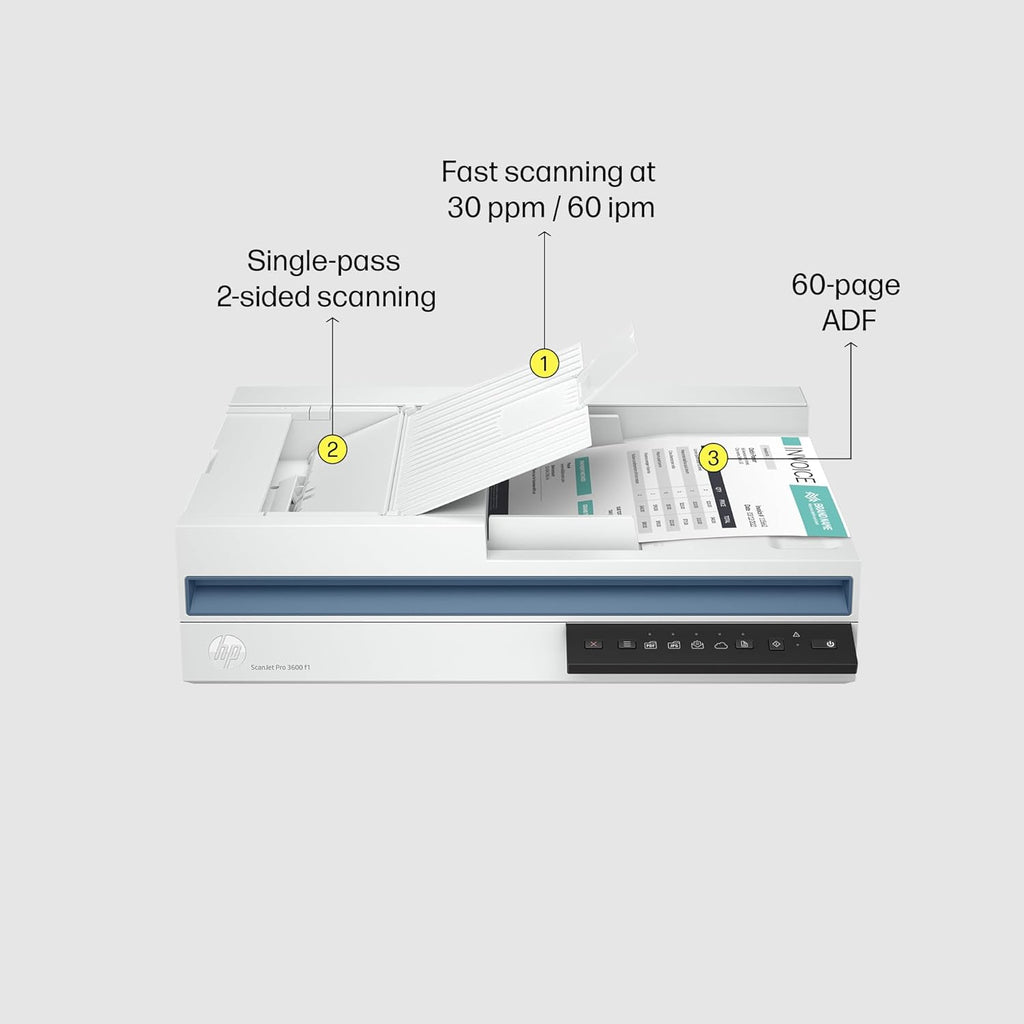

Up to 30 ppm/60 ipm (b&w, gray and color, 300 dpi)
Automatic document feeder scan speed
Up to 30 ppm/60 ipm (b&w, gray and color, 300 dpi)
Scan size (ADF), maximum
216 x 3100 mm
Scan size, maximum
216 x 297 mm
Scan size (ADF), minimum
89 x 148 mm
Automatic document feeder capacity
Standard, 60 sheets
Duplex ADF scanning
Yes
Scan file format
For text and image pages : PDF, JPEG, PNG, BMP, TIF, Text(TXT), Rich Text(RTF), SEARCHABLE PDF, PDF/A, Word(DOC), Word(DOCX), Excel(XLS), Excel(XLSX), CSV
Scan input modes
Scan front-panel function : Save as PDF, Save as JPEG, Scan to E-mail, Send to Cloud and Scan to USB. HP Scan in Win OS, HP Easy Scan/ICA in Mac OS and third parties applications via TWAIN.
Color scanning
Yes
Levels of grayscale
256
Image scaling or enlargement range
Will not perform any arbitrary scaling
Scan technology
ADF; Flatbed; Contact Image Sensor (CIS)
Scanning options (ADF)
Single-pass Duplex scanning
Multifeed detection
Yes
Output resolution dpi settings
75; 150; 200; 240; 300; 400; 500; 600; 1200 ppi
Light source (scanning)
Light Emitting Diode (LED)
Document weight ADF (maximum)
120 g/m²
Media size (ADF)
Letter; Legal; Executive; A4; A5; A6; B5; B5 (JIS)
Media types
Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index)
Media weights, supported ADF
49 to 120 g/m²
Scanner advanced features
One pass duplex scanning; Multi-feed detection sensor; Configurable Scan shortcuts with HP Scan (included): OCR; Auto exposure; Auto threshold; Auto detect colour; Background smooth/removal; Auto detect size; Straighten content; Enhance content; Auto orient; Multicolour dropout; Edge erase; Blank page options: Delete Blank Page, Blank Page Detection Sensitivity, Zonal Blank Detect; Merge pages; Document separation options: Zonal Text Separation, Barcode Separation, Blank Page Separation (Front/Back/Both/Any side selection), Add Page Separator Manually; Auto Feed; Show Viewer After Scan and Post Scan Operations are: Mark the image for Deletion, Rotate option, Move Left/Right, Create/Delete New Selection, Save as Scan Area, Manual Straighten option, Drag and Crop, Undo Options, image - Basic Zoom Slider, Open in Zoom Window(Zoom, Crop, Rotate) ; Background Clean-up options: Clean-up Background, Remove: make white, Smooth: make consistent, Remove Holes, Multi-Streaming; Single zone Selection for Zonal OCR, Barcode and QR Code; PDF options: PDF Security Settings (Applicable for PDF and Searchable PDF), Password Security & Document Permission Settings, PDF – iHQC compression, File Size/Quality Slider; TIFF Compression Options: for Gray or Color: Uncompressed/LZW/Jpeg-Tiff, for BW: Uncompressed/LZW/Tiff G3/Tiff G4; File Name Options: Base Name, Date, Time, Document Counter, Barcode Value, Zonal Text, File name sequence Settings, If File name already exists Actions - Overwrite/Append Date Time Stamp/Prompt for File Name, Intelligent File Naming; Destinations options: Email (Mail Clients, Save Local Copy Option, Local or NW), Folder, Save Folder path, Show Save as Dialog Box, After Saving the File(s) action, Printer/Fax, Plugins available if not already included: SMTP, SFTP, Box and Evernote, SharePoint, SharePoint365, Google Drive, Dropbox, OneDrive, One Drive for Business and more..; Enable Book Scan (Flatbed); Vertical Streak Removal/Detection; Multi Document Scanning; Enable Desktop Icons creation for Scan Profiles/Shortcuts; Shortcut Management: Create new Scan Shortcut, Delete Shortcut, Rename Shortcut, Shortcut Move Up/Down, Shortcut – Save/Undo, Restore Shortcut Defaults-Factory Settings, Import/Export Shortcut; retrieve shortcuts from Scanner without accessing the software on the PC
Compatible Operating Systems
Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; Windows Server; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11 Big Sur; macOS 12 Monterey; Linux
Mac compatible
Yes
Minimum System Requirements for Macintosh
10.14(Mojave), 10.15(Catalina) and 11.x(Big SUR) Internet required
Minimum System Requirements
Microsoft® Windows® (11, 10, 8.1, 7 : 32-bit and 64-bit, 2008 R2, 2012 R2, 2016, 2019); 2 GB available hard disk space, Internet connection, Microsoft® Internet Explorer or any browser
Twain version
Version 2.4
Processor speed
666 MHz
Memory
256 MB
Software included
HP Scan Software, HP Scanner Device Driver, HP WIA scan driver, HP TWAIN scan driver, HP Scanner Tools Utility,
Connectivity, standard

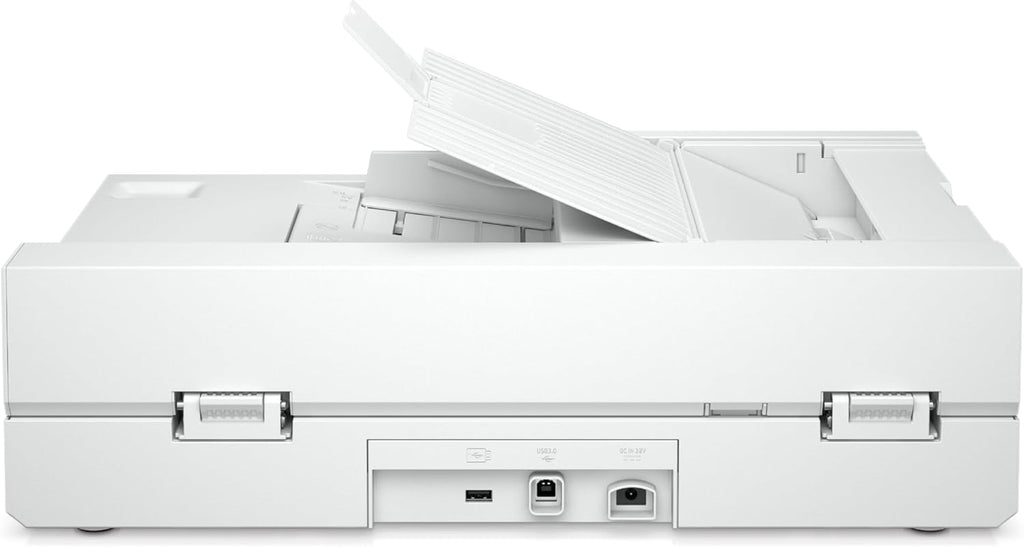

USB 3.0
Power
Input Voltage: 100 to 240 VAC
Power supply type
External power adapter
Power consumption
13.31 watts (Active - Scanning), 5.31 watts (Ready), 1.23 watts (Sleep), 0.07 (Auto-Off), 0.07 (Manual-Off) (Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.)

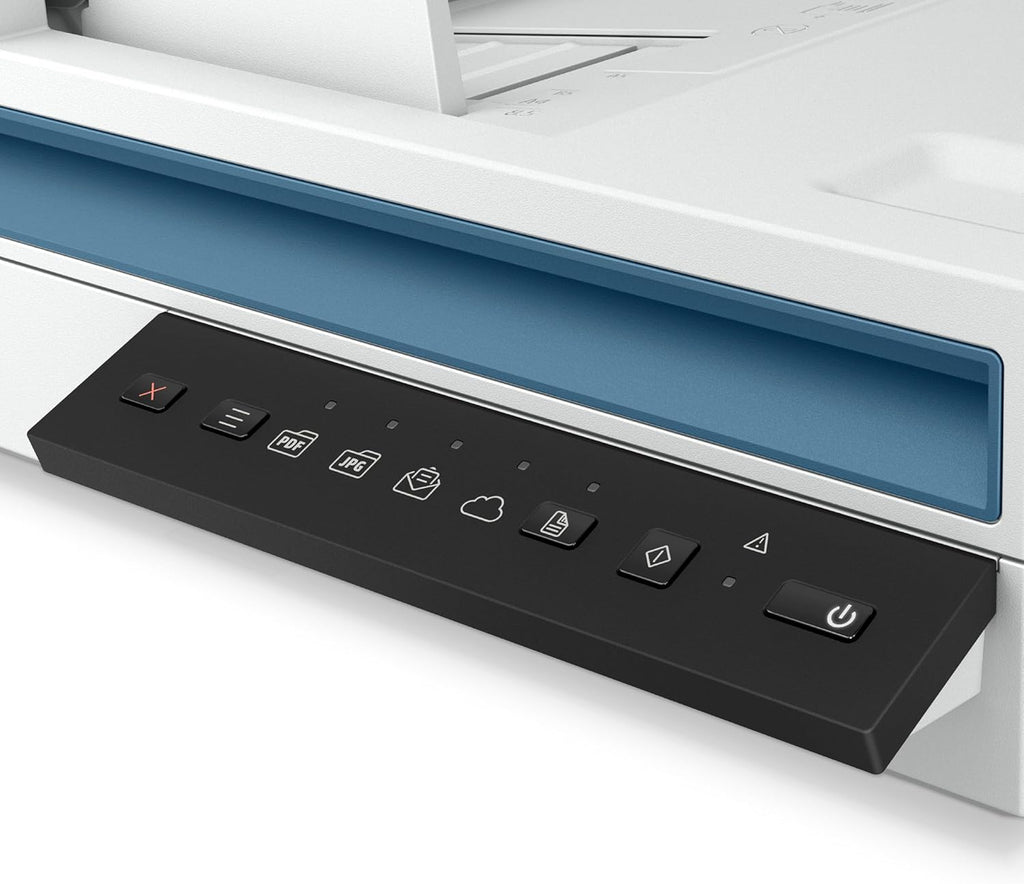

Control panel
6 lights (Shortcut, Duplex, Error); 5 button (Power, Scan, Duplex, Shortcut Select, Cancel )
Security management
Power button to on/off
Operating humidity range
15 to 80% RH (non-condensing)
Recommended operating humidity range
30 to 70% RH
Non-Operating Humidity Range
0 to 90% RH (non-condensing)
Operating temperature range
10 to 35°C
Operating temperature range
50 to 95°F
Recommended operating temperature range
17.5 to 25°C
Recommended operating temperature range
63.5 to 77°F
Storage temperature range
-40 to 60°C
Storage temperature range
-40 to 140°F
Acoustic power emissions (active, printing)
6.5 B(A)

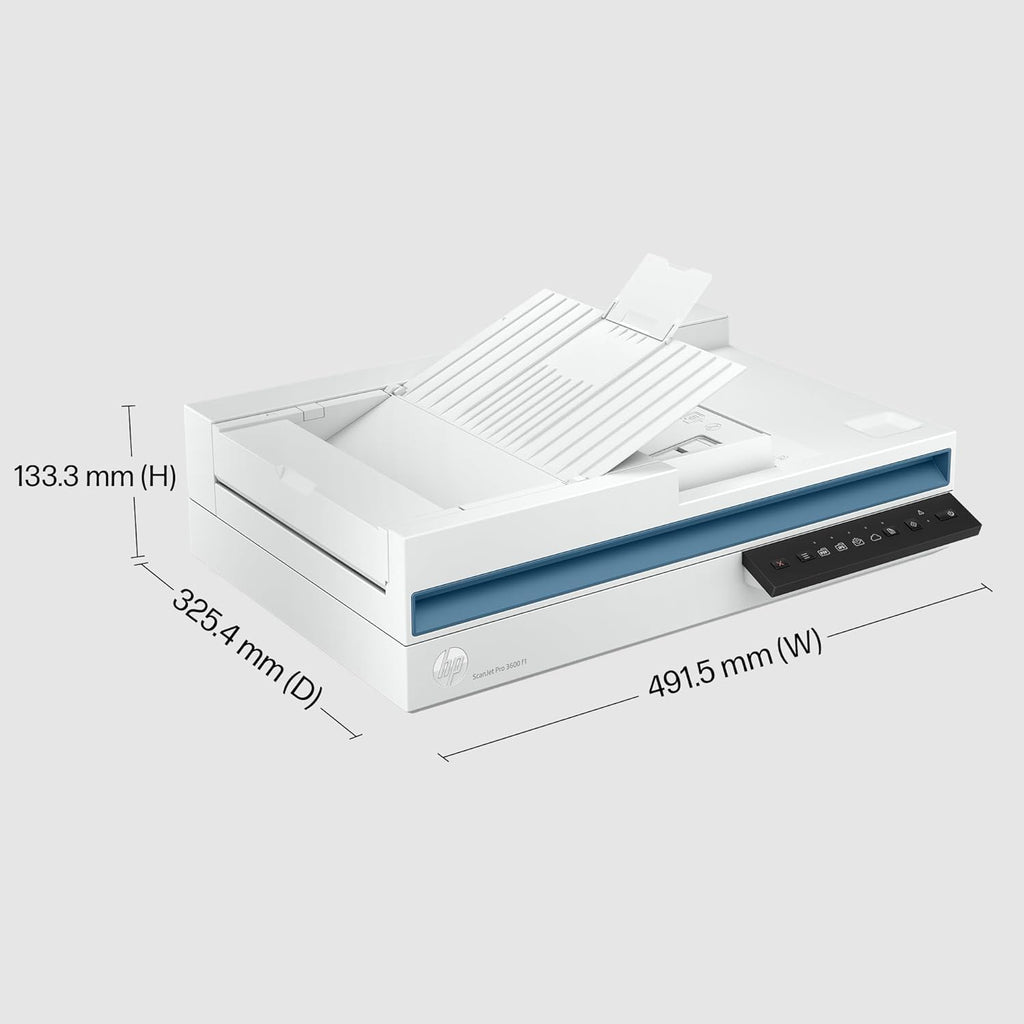

Minimum dimensions (W x D x H)
491.5 x 325.4 x 133.3 mm
Maximum dimensions (W x D x H)
491.5 x 422.28 x 387.42 mm
Weight
5.4 kg
Weight
5.4 kg
Package dimensions (W x D x H)
600 x 245 x 499 mm
Package weight
7.3 kg
Ecolabels
CECP; SEPA; IT ECO Declaration; EPEAT® Silver registered
Energy star certified
Yes
Electromagnetic compatibility
Class B Emissions; CISPR 32:2015 (International); European Union EMC Directive 2004/108/EC, EN 55032:2015 (CE mark); China GB9254-2008 (CCC); Taiwan CNS13438:2006 (BSMI); USA CFR47 Part 15, Subpart B (FCC); ICES-003:2020 Issue 7 (Canada); Australia C-tick (includes New Zealand); KN 22 and Korea KCC; EAC EMC Certificate; Ukraine EMC approval; EN 61000-3-2:2014 (harmonics); EN 61000-3-3:2013 (flicker); Immunity 505035:2017
Safety
IEC62368-1:2018, IEC 60950-1:2005 +A1 and all applicable amendments; CSA/UL 60950-1, 2nd edition (2007); EN 60950-1:2006 +A11 +A1 +A12+A2; EAC safety; Canada cUL CoC; China CCC; European Union CE; Kenya PVOC; Kuwait TER; Nigeria SON; Saudi Arabia SASO; South Africa NRCS; Taiwan BSMI; Ukraine safety approval
What's in the box

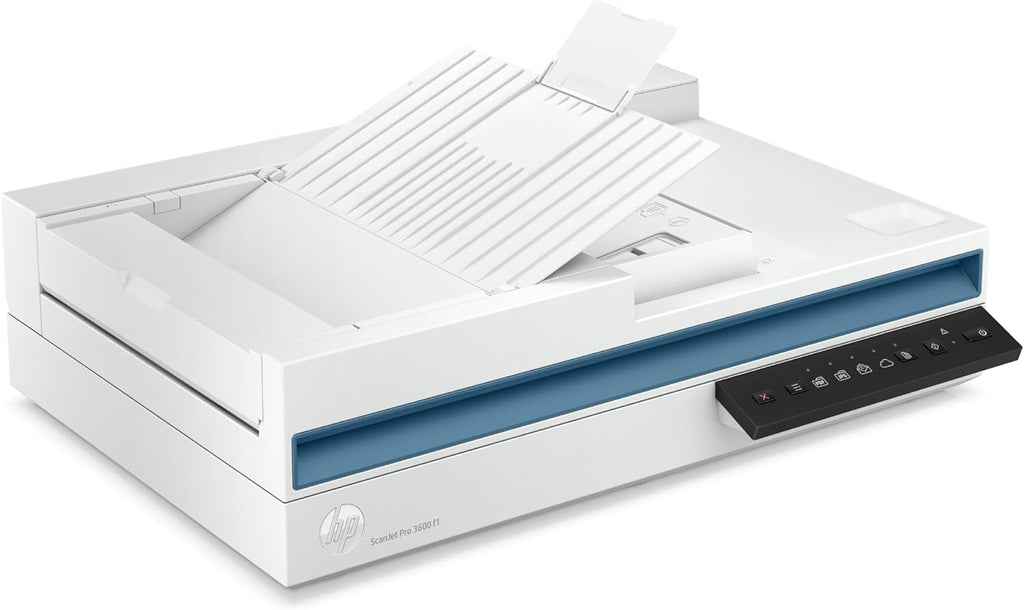

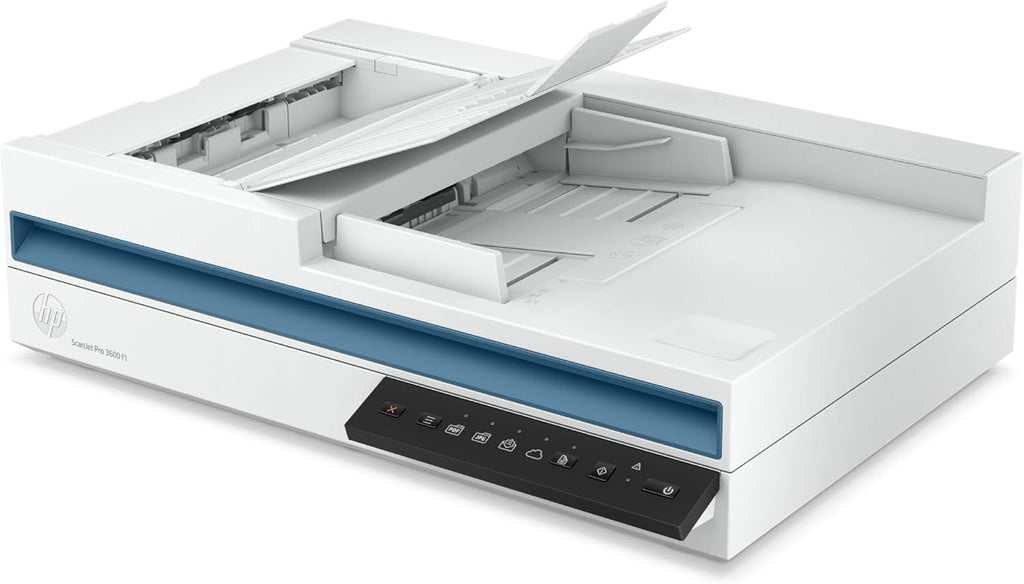

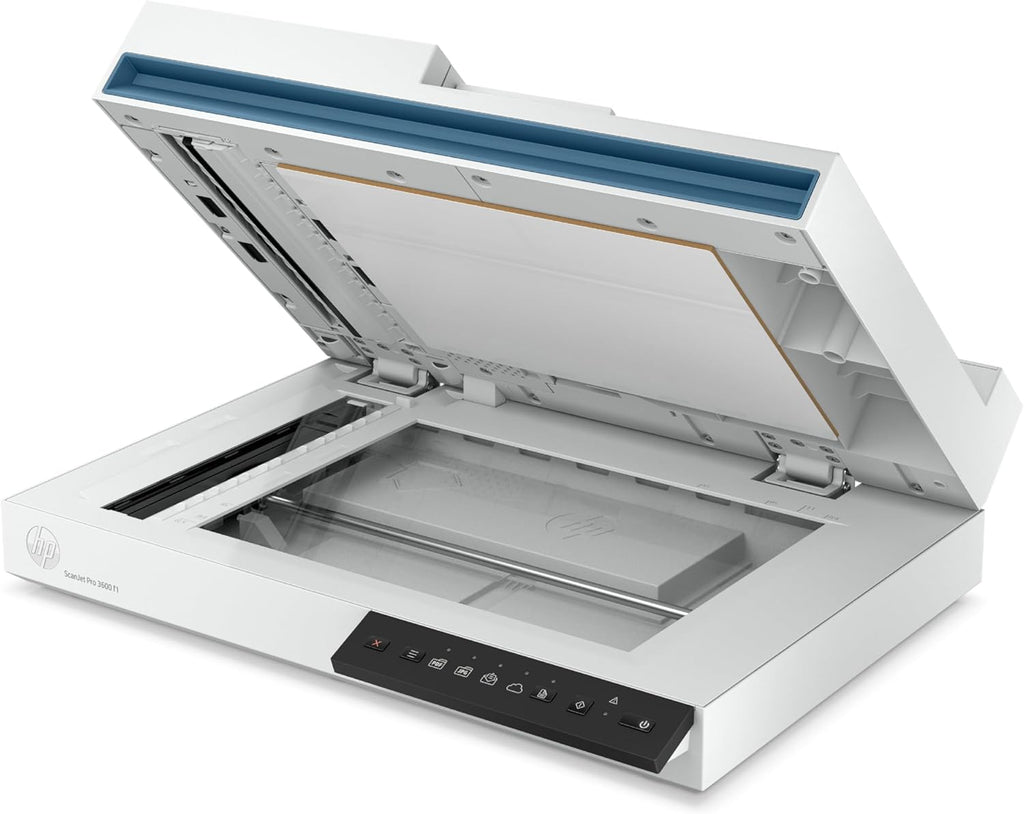

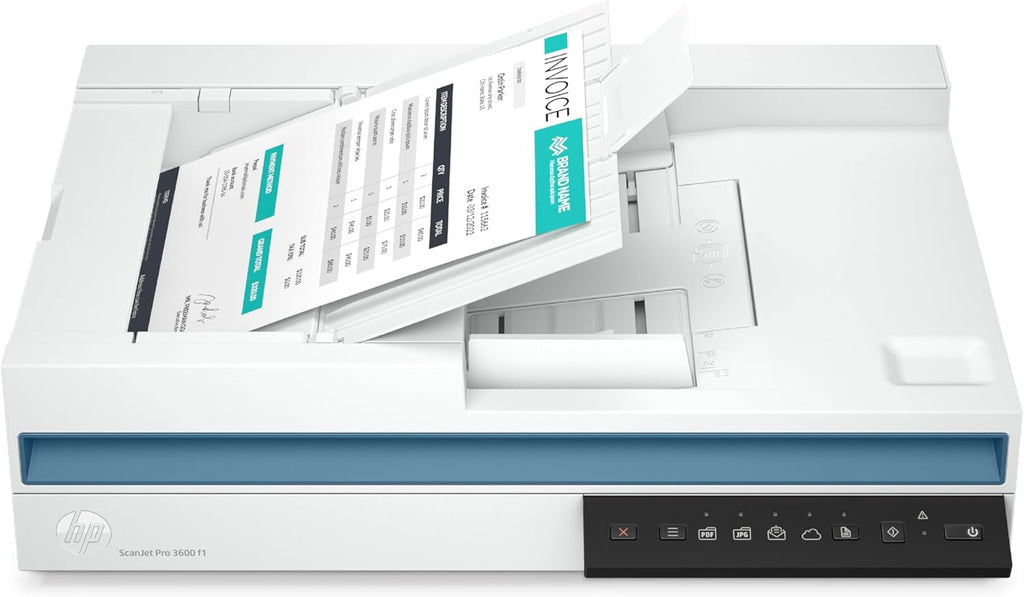

HP ScanJet Pro 3600 f1 Scanner; Install Guide; Supporting flyers; Cushions; USB cable; Power adapter; Power cords
