描述
Product Collection
Code Name
Vertical Segment
Desktop
Processor Number

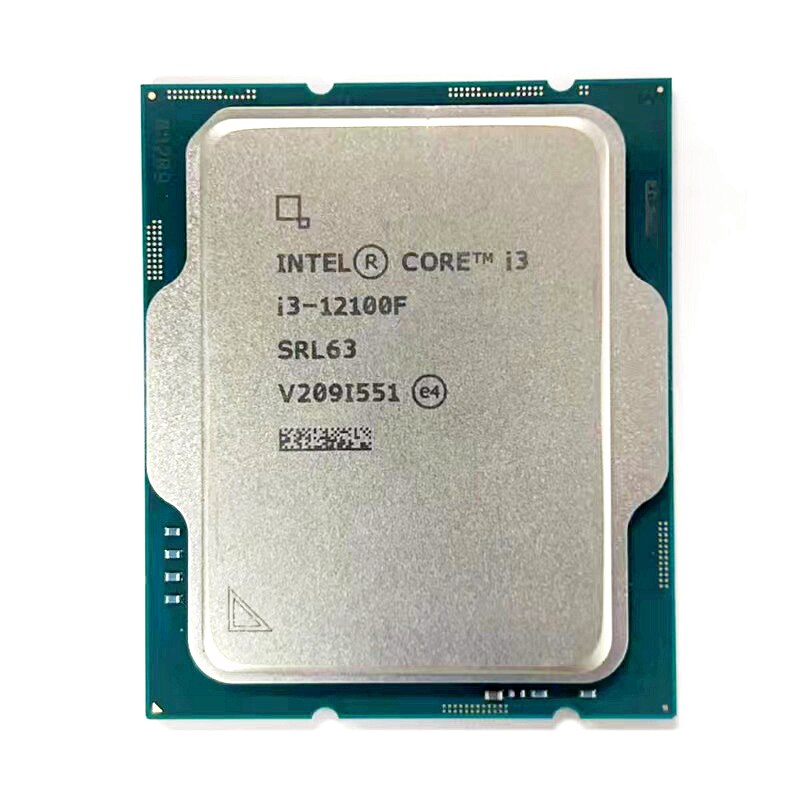

i3-12100F
Lithography
Intel 7
Use Conditions
PC/Client/Tablet
CPU Specifications
Total Cores
4
# of Performance-cores
4
# of Efficient-cores
0
Total Threads
8
Max Turbo Frequency
4.30 GHz
Performance-core Max Turbo Frequency
4.30 GHz
Performance-core Base Frequency
3.30 GHz
Cache
12 MB Intel® Smart Cache
Total L2 Cache
5 MB
Processor Base Power
58 W
Maximum Turbo Power
89 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q1'22
Embedded Options Available
No
Datasheet
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
No
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0 ‡
No
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
