描述
Basic elements
-
product setIntel® Core™ i3 Processors (14th gen)
-
codenameProducts formerly Raptor Lake
-
vertical marketDesktop
-

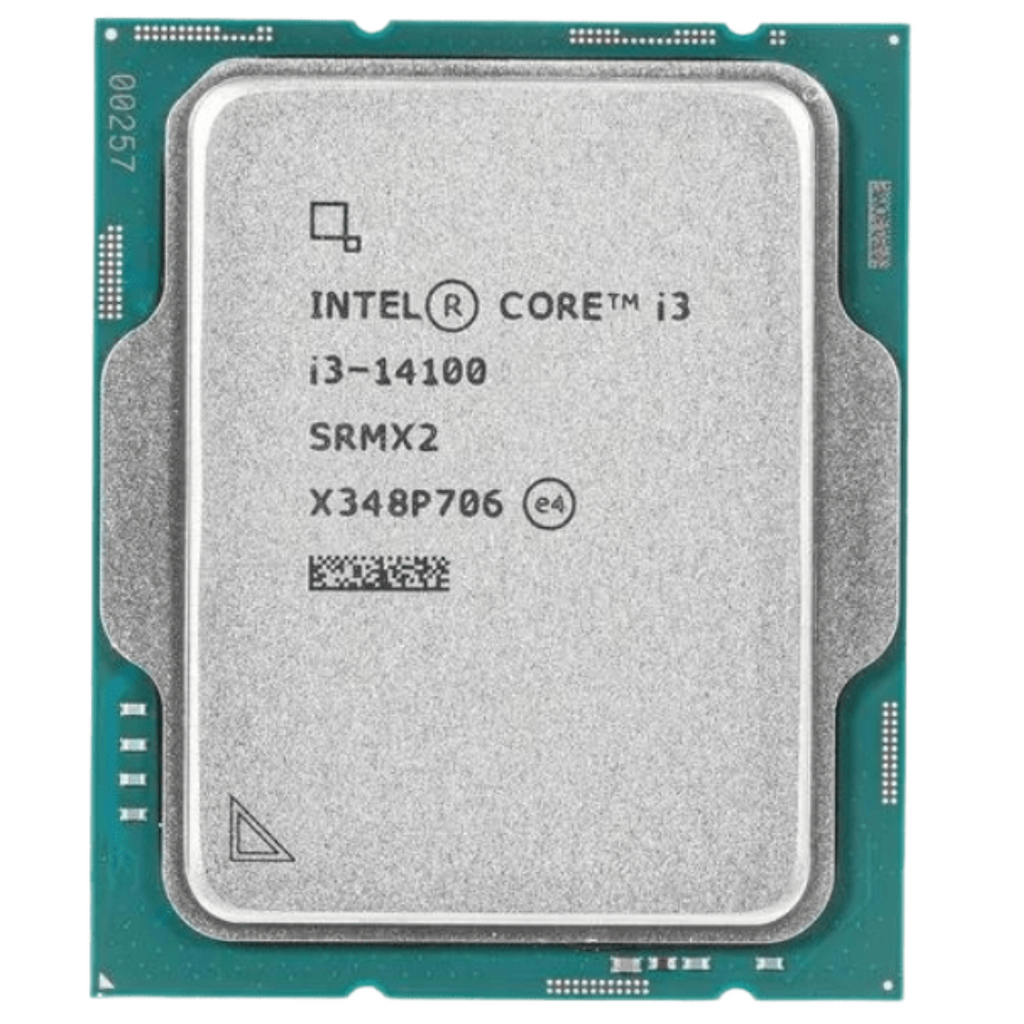

processor numberi3-14100
-
LithographyIntel 7
- Conditions of UsePC/Client/Tablet
CPU specifications
-
Number of cores4
-
Number of Performance-cores4
-
Efficient-core (energy efficiency core) number0
-
Threads8
-
Maximum Turbo Frequency4.7 GHz
-
Performance-core (performance core) maximum turbo frequency4.7 GHz
-
Performance-core (performance core) base frequency3.5GHz
-
cache12MB Intel® Smart Cache
-
Total L2 cache capacity5MB
-
Processor base power consumption60W
-
Maximum core frequency power consumption110W
Additional information
-
stateLaunched
-
issue dateQ1'24
-
Provide embedded solutionsYes
Memory specifications
-
Maximum memory size (depends on memory type)192GB
-
memory typeUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
-
Maximum number of memory channels2
-
Maximum memory bandwidth76.8GB/s
GPU Specifications
-
GPU name ‡Intel® UHD Graphics 730
-
Graphics card maximum dynamic frequency1.5GHz
-
Graphical outputeDP 1.4b, DP 1.4a, HDMI 2.1
-
execution unittwenty four
-
Maximum resolution (HDMI) ‡4096x2160@60Hz
-
Maximum resolution (DP)‡7680x4320@60Hz
-
Maximum resolution (eDP - integrated flat panel)‡5120x3200@120Hz
-
DirectX* support12
-
OpenGL* support4.5
-
OpenCL* support3.0
-
Multiple format codec engines1
-
Intel® Quick Sync VideoYes
-
Intel® Clear Video Core TechnologyYes
-
Number of monitors supported ‡4
-
Device ID0x4692
Extended options
-
Direct Media Interface (DMI) revision4.0
-
Maximum number of DMI channels8
-
Scalability1S Only
-
PCI Express revision5.0 and 4.0
-
PCI Express Configuration ‡Up to 1x16+4, 2x8+4
-
Maximum number of PCI Express lanes20
Package specifications
-
Supported slotsFCLGA1700
-
Maximum CPU configuration1
-
Thermal Solution SpecificationsPCG 2020C
-
T JUNCTION100°C
-
Package size45.0 mm x 37.5 mm
advanced technology
-
Intel® Gaussian and Neural Accelerator3.0
-
Intel® Deep Learning BoostYes
-
Intel® Speed Shift TechnologyYes
-
Intel® Turbo Boost Technology ‡2.0
-
Intel® Hyper-Threading Technology ‡Yes
-
Intel® 64 ‡Yes
-
Instruction Set64-bit
-
instruction set extensionIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-
idle stateYes
-
Enhanced Intel SpeedStep® TechnologyYes
-
temperature monitoring technologyYes
-
Intel® Volume Management Device (VMD)Yes
Security and Reliability
-
Intel® Standard Manageability (ISM) ‡Yes
-
Intel® Control Flow Enforcement TechnologyYes
-
Intel® AES New InstructionsYes
-
security keyYes
-
Intel® OS DaemonYes
-
Execution disable bit ‡Yes
-
Intel® Boot GuardYes
-
Pattern-Based Execution Control (MBEC)Yes
-
Intel® Virtualization Technology (VT-x) ‡Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
