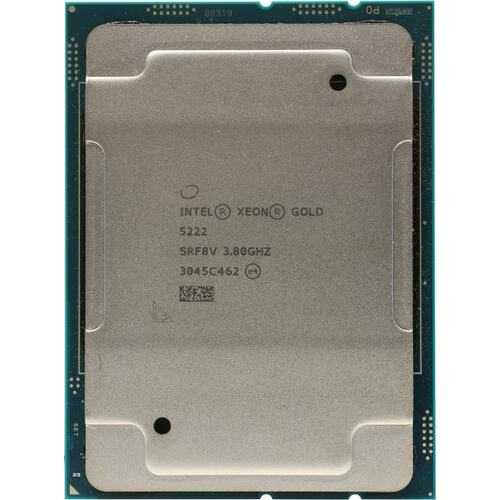

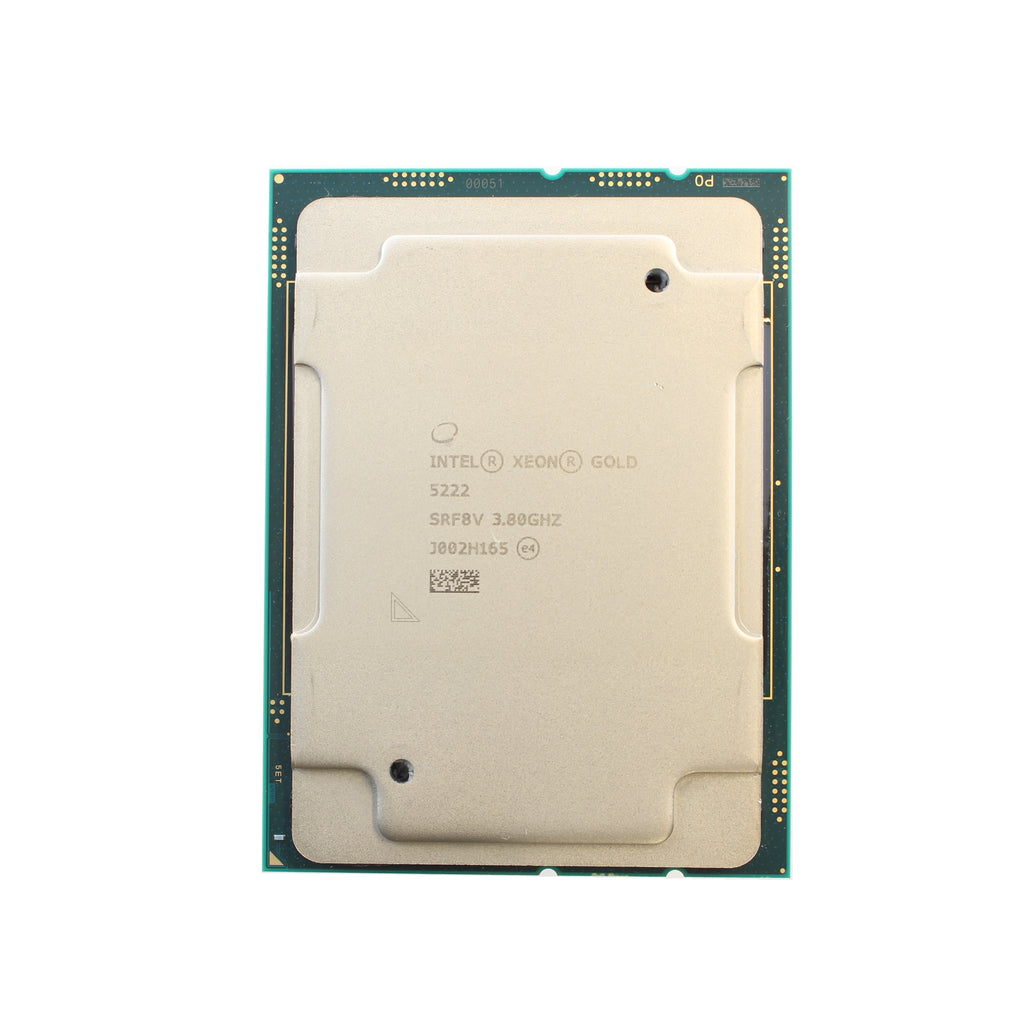

Intel® Xeon® Gold 5222 Processor
CPU Specifications
-
Total Cores4
-
Total Threads8
-
Max Turbo Frequency3.90 GHz
-
Processor Base Frequency3.80 GHz
-
Cache16.5 MB
-
Max # of UPI Links2
-
TDP105 W
Supplemental Information
-
Marketing StatusLaunched
-
Launch DateQ2'19
-
Servicing StatusBaseline Servicing
-
Embedded Options AvailableNo
-
Product BriefView now
Memory Specifications
-
Max Memory Size (dependent on memory type)1 TB
-
Memory TypesDDR4-2933
-
Maximum Memory Speed2933 MHz
-
Max # of Memory Channels6
-
Intel® Optane™ Persistent Memory SupportedYes
-
ECC Memory Supported ‡Yes
Expansion Options
-
Scalability4S
-
PCI Express Revision3.0
-
Max # of PCI Express Lanes48
Package Specifications
-
Sockets SupportedFCLGA3647
-
TCASE72°C
-
Package Size76.0mm x 56.5mm
Advanced Technologies
-
Intel® Deep Learning Boost (Intel® DL Boost)Yes
-
Intel® Speed Select Technology - Performance ProfileNo
-
Intel® Speed Select Technology - Base FrequencyNo
-
Intel® Resource Director Technology (Intel® RDT)Yes
-
Intel® Speed Shift TechnologyYes
-
Intel® Turbo Boost Max Technology 3.0 ‡No
-
Intel® Turbo Boost Technology ‡2.0
-
Intel® Hyper-Threading Technology ‡Yes
-
Intel® Transactional Synchronization ExtensionsYes
-
Intel® 64 ‡Yes
-
Instruction Set ExtensionsIntel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
-
# of AVX-512 FMA Units2
-
Enhanced Intel SpeedStep® TechnologyYes
-
Intel® Volume Management Device (VMD)Yes
Security & Reliability
-
Intel vPro® Eligibility ‡Intel vPro® Platform
-
Intel® AES New InstructionsYes
-
Intel® Trusted Execution Technology ‡Yes
-
Execute Disable Bit ‡Yes
-
Intel® Run Sure TechnologyYes
-
Mode-based Execute Control (MBEC)Yes
-
Intel® Virtualization Technology (VT-x) ‡Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
