ThinkCentre M70q Gen 5 PC is equipped with up to Intel vPro ® Enterprise technology, which is both compact and powerful. The Intel ® Core™ processor combined with dual-band memory is fast and responsive to help you handle heavy workloads. Coupled with flexible expansion slots, even though the device is small, it can be adjusted to suit your growing business, making it a perfect fit!
ThinkShield's comprehensive security solution protects your critical data and devices—for example, in the event of device failure, the self-healing BIOS restores the system to an earlier state; the independent trusted platform module encrypts data; optional Intel vPro ® Enterprise Build multiple layers of protection to eliminate digital threats, data theft and other issues.
The ThinkCentre M70q Gen 5 Tiny personal computer has built-in drivers that support older versions of operating systems (OS), making deployment, upgrades and management easy. Moreover, memory modules and storage devices can be accessed without tools, making maintenance and expansion processes quick and efficient. ; Modern standby mode can instantly wake up the system to ensure high power efficiency.
Looking for a slim desktop that fits in anywhere? ThinkCentre M70q Gen 5 Tiny can be easily installed behind a screen, under a desk, or even tucked into a bookshelf. It can be placed horizontally or vertically to suit your needs. What's more important: the device supports up to three monitors, so you can see your current work at a glance!
Lenovo strictly follows the MIL-STD 810H standard of the U.S. Department of Defense to achieve a perfect balance between reliability and durability of all devices - among them, ThinkCentre PCs meet 12 stringent requirements and 17 test process requirements to ensure that they will survive in polar regions. It still performs strongly in wilderness, desert dust storms, and even severe conditions such as extreme temperatures, pressures, humidity, and vibrations.
The ThinkCentre M70q Gen 5 Tiny personal computer case contains 85% recycled raw materials (PCC) and recycled acrylonitrile butadiene styrene (ABS). The packaging heat dissipation casing and outer bag contain 30% ocean plastic (OBP). The outer packaging The cartons are Forest Stewardship Council® ( FSC) certified. On the other hand, the device is also ENERGY STAR ® 8.0 certified, which is both energy efficient and can reduce operating costs.

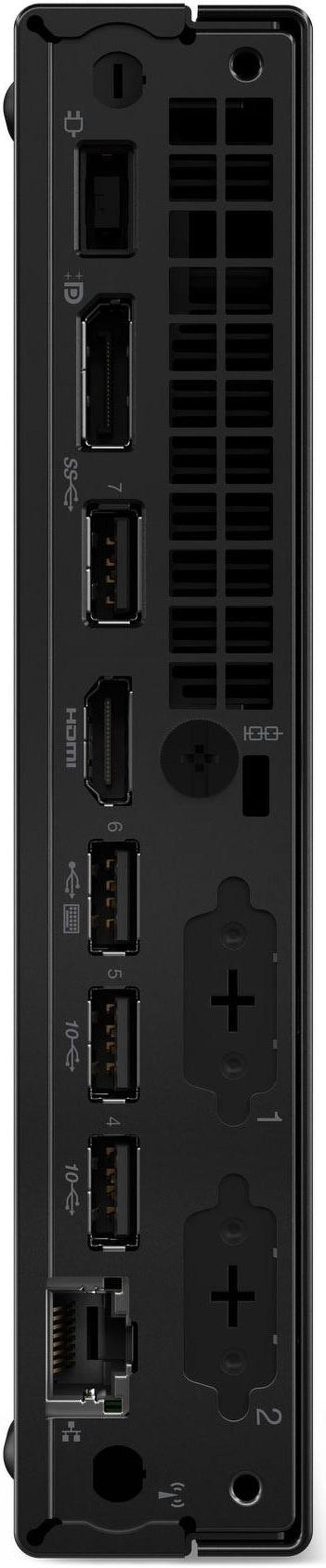

Ports and Slots
| Processor |
Intel® Core™ i5-14500T, 14C (6P + 8E) / 20T, P-core 1.7 / 4.8GHz, E-core 1.2 / 3.4GHz, 24MB
|
| Graphics |
Integrated Intel® UHD Graphics 770
|
| Chipset |
Intel® Q670 Chipset
|
| Memory |
1x 16GB SO-DIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable
|
| Max Memory
|
Up to 64GB (2x 32GB DDR5 SO-DIMM)
|
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal
|
| Storage Support
|
Dual SSD mode: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB
|
| Card Reader |
No card reader
|
| Optical |
None
|
| audio chip |
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
|
| Speakers |
2Wx1
|
| Power Supply
|
135W 89% Adapter
|
| Keyboard |
USB Traditional Keyboard, Black, Traditional Chinese / English
|
| Mouse |
USB Calliope Mouse, Black
|
| Expansion Slots |
Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Black
|
| Stand |
None
|
| Adapter Cage |
None
|
| Toolless Chassis Screw |
None
|
| Dust Filter |
None
|
| Mounting |
VESA Mount
|
| IO Box |
No IO box
|
| Form Factor |
Tiny (1L)
|
| Dimensions (WxDxH)
|
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)
|
| Weight
|
Around 1.25 kg (2.76 lbs)
|
| CONNECTIVITY | |
| Ethernet |
Integrated 100/1000M
|
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
|
| WWAN |
No support
|
| Front Ports |
|
| Optional Front Ports (configured) |
None
|
| Rear Ports |
|
| Optional Rear Ports (configured) |
None
|
| SECURITY & PRIVACY | |
| Security Chip |
Discrete TPM 2.0, TCG certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm
|
| Kensington Cable Lock |
None
|
| Chassis Intrusion Switch |
Chassis Intrusion Switch
|
| MANAGEABILITY | |
| System Management
|
Intel® vPro® Enterprise
|
| SERVICE | |
| Base Warranty |
1-year, Onsite
|
| Included Upgrade |
3Y Onsite upgrade from 1Y Onsite
|
| CERTIFICATIONS | |
| Green Certifications |
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog, Temperature Shock)
|
| SOFTWARE | |
| Operating System |
Windows® 11 Pro, Traditional Chinese / Simplified Chinese / English
|
| Bundled Software |
None
|
| ACCESSORIES | |
| Bundled Accessories |
None
|
