| PRODUCT NAME |

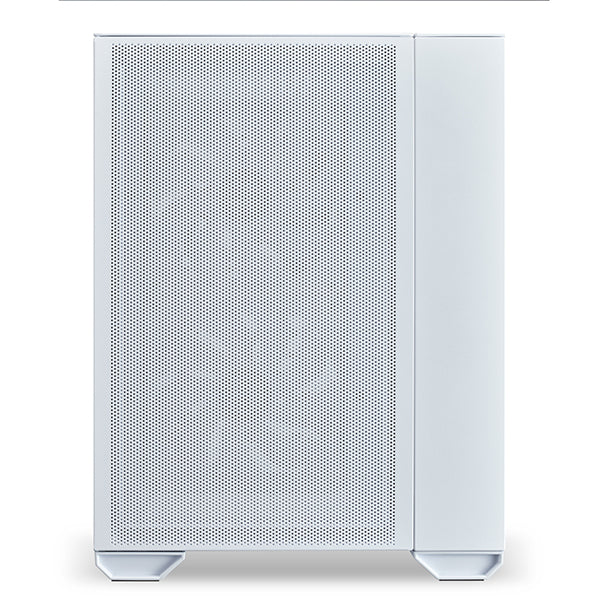

O11 Air MINI |
| MODEL |
O11AMW |
| COLOR |
White |
| DIMENSION |
(D) 400 X (W) 288 X (H) 384 mm |
| MATERIAL |
4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass |
| MOTHERBOARD SUPPORT |
E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX |
| PSU SUPPORT |
ATX (Max. 200 mm) |
| INCLUDED FAN |
(Front) 2 X 140mm PWM Fan (Rear) 1 X 120mm PWM Fan |
| FAN SUPPORT |
(Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1 |
| RADIATOR SUPPORT |
(Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm |
| DRIVE SUPPORT |
6 X 2.5” SSD or 2 X 2.5” SSD + 4 X 3.5” HDD |
| GPU LENGTH CLEARANCE |
362 mm |
| CPU HEIGHT CLEARANCE |
170 mm |
| EXPANSION SLOTS |
7 or 5 (depends on the back panel) |
| I/O PORTS |
2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio |
| DUST FILTER |
1 × removable bottom dust tray |
