Linksys Velop WRT Pro 7 WiFi 7 Tri-Band Open Wrt Router
Linksys has finally returned to the world of OpenWrt. It has been 20 years since OpenWrt was born from the Linksys wireless LAN router WRT54G, which became explosively popular around the world. Since then, OpenWrt has continued to be developed in the open source world as the industry standard OS for WiFi routers, and has been handed down to the present day.
The Linksys Velop WRT Pro 7 is the world's first WiFi 7 router officially launched by Linksys as an OpenWrt-equipped model. Linksys has already performed the difficult OS installation and initial settings with OpenWrt at the factory. In most Internet environments, no additional settings are required after powering on, and WiFi can be used immediately. There are no restrictions on introducing additional functions. By using additional packages, which are a strength of OpenWrt, various extension functions that were difficult to realize with existing products can be used. Linksys is also developing a next-generation UI that is simple and easy to use and respects privacy.
We will provide an environment where businesses, prosumer and core users can take advantage of the free scalability of OpenWrt, while general consumers can easily use the safe and secure OpenWrt.
Velop WRT Pro 7 Product Features and Specifications
Main features
- Wi-Fi 7 802.11be Tri-band / 2x2x2 spatial streams
- Equipped with Qualcomm IPQ9554 1.5 GHz quad-core processor
- Memory: 1GB DDR4
-
IPoE IPv4 over IPv6 connection has been confirmed to work with a dedicated script
(v6 Plus, OCN Virtual Connect, BIGLOBE IPv6 Option, etc.) - OpenWrt 19.07 QSDK specification Linux Kernel 5.4※1 installed
- Factory default settings include login password, SSID, etc.
- Luci and SSH available, various extensions can be installed
-
OpenVPN, Dynamic DNS, UPnP, MLO, mesh-related functions implemented
-
Bash scripts for quick kitting
- GPL 2 compliant, source code released
Hardware Specifications
-
WLAN Qualcomm® QCN6274 and Qualcomm® IPQ9554 Tri-band
2.4GHz b/g/n/ax - 1K QAM OFDMA
5.0GHz a/n/ac/ax/be - 4K QAM OFDMA
6.0GHz ax/be - 4K-QAM OFDMA - VLAN: Supported
- Dimensions: 9.51 cm x 9.51 cm x 21.79 cm (L x W x H)
- Weight: 950.24 g
-

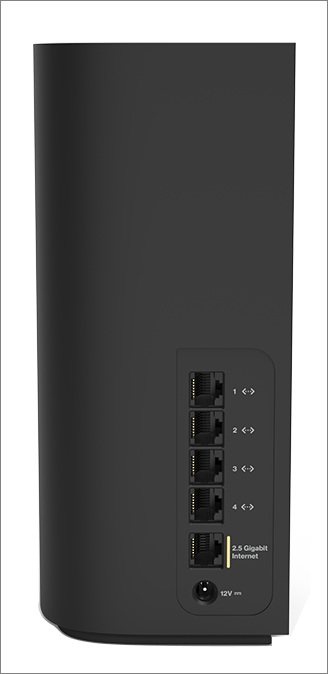

Ports:
1 x 2.5 Gbps Internet port
4 x 1 Gbps Ethernet ports
Power port 12V 2.5A -
Buttons and Switches:
Reset button,
Unlabeled button (reserved/not set),
Slide power switch - Product development (USA), manufacturing (Vietnam)
- Product name: Velop WRT PRO 7
- Product model number: MBE70 / LN6001-JP
- Certified by technical standards and compliant with Japanese laws and regulations*2
- Product warranty: 3 years
