描述
CPU:Intel® Core™ i5-12600H 12 cores/16 threads (18M cache, up to 4.50 GHz)
GPU: Intel® Iris® Xe Graphics (Graphics frequency 1.4GHz)
RAM: 32GB DDR5-5200MHz Dual Channel
SSD: 1TB M.2 NVME2280
HDMI 2.0(4K@60Hz) ; USB4(8K@30Hz)*2
Wi-Fi 6, BT 5.2
10Gbps SFP+Lan*2 ; 2.5Gbps RJ45 Lan*2
商品描述

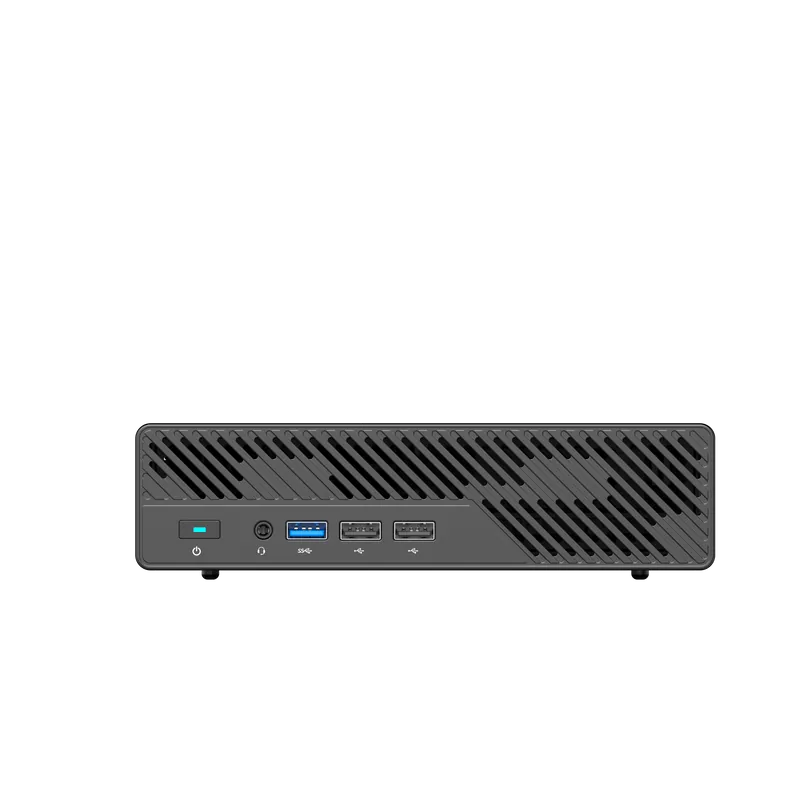

Miniforum MS-01 WorkStation
The MS-01 is powered by a highly scalable Intel 13ᵗʰ generation i9 CPU, delivering superior processing performance, response speed, and data transfer rates. The Mini PC is specifically designed for office and productivity tasks, featuring an efficient cooling system to handle multiple tasks simultaneously and enhance work efficiency.
Intel 13ᵗʰ Generation Core i9 Processor
The MS-01 is equipped with the high-end Intel® Core™ i9-13900H & Intel® Core™ i9-12900H processor from the 13ᵗʰ generation series. The powerful processor features 14 cores (6P+8E) and 20 threads, along with a 24 MB L3 cache. It can reach impressive maximum frequencies of 5.4 GHz.
Intel® Iris® Xe Graphics
Integrated with Intel® Iris® Xe graphics processor, it offers a maximum frequency of 1.5 GHz. This combination of outstanding performance ensures a smooth and responsive experience.

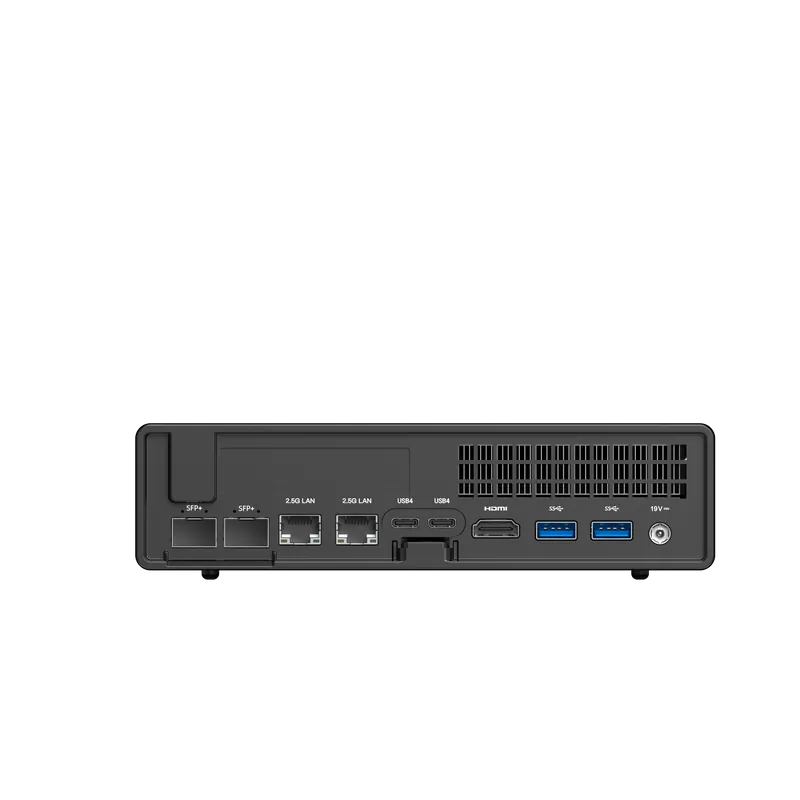

High-Speed Network Ports
The MS-01 features two built-in 10 Gbps SFP+ LAN ports, two 2.5 Gbps RJ45 LAN ports, and two USB 4 ports, delivering a total Ethernet speed of up to 65 Gbps.This ensures an unparalleled high-speed network experience for you to enjoy.
Dual 10Gbps SFP+ Network Ports
The MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ modules offer high stability, and the optical fiber transmission ensures network security by preventing eavesdropping and interception. With a transmission speed of 10Gbps, it is ten times faster than traditional 1000Mbps Ethernet, meeting the demands of high-performance networking devices.
Dual 2.5Gbps RJ45 Network Ports
In addition to the two SFP+ network ports, the MS-01 also features two standard 2.5Gbps RJ45 network ports, providing double the transmission speed compared to a single 2.5Gbps port, enabling enhanced network performance. The RJ45 network ports offer high compatibility with a wide range of network devices, catering to the needs of general use.
Dual USB-4 Ports
The MS-01 is equipped with two USB-4 ports, which incorporate dual-channel transmission technology, enabling data transfer speeds of up to 40Gbps. This doubles the data transfer speed compared to USB 3.2 at 20Gbps. Additionally, it is capable of building a 20Gbps Ethernet network using USB4 Thunderbolt Bridge technology.
Compatible with Intel vPRO
The vPro supports hardware acceleration for virtualization of devices such as GPU and sound cards, enabling more efficient processing of graphics and audio tasks.
High Expandability
High scalability enables the system to be expanded and upgraded according to specific needs, providing greater flexibility and customizability.
PCIe 4.0 x16 slot
The MS-01 is equipped with a PCIe 4.0 x16 slot, allowing for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices. The PCIe 4.0 x16 slot enables faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering. It supports PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.
Excellent Cooling System
The CPU is equipped with dual U-shaped heat pipes and a high-speed cooling fan, ensuring stable performance even under heavy loads. Additionally, a small intelligent fan on top of the solid-state drive effectively dissipates heat, improving longevity by reducing the computer's operating temperature.
Specifications :
| Model | Mini WorkStation MS-01 |
| Processor | Intel® Core™ i5-12600H, 12 Cores / 16 Threads, turbo up to 4.5GHz, 18 MB Intel® Smart Cache |
| Graphics | Intel® Iris® Xe Graphics (up to 1.4GHz) |
| Memory |
DDR5-5200MHz Dual Channel (SODIMM slots x 2, up to a total maximum of 64GB) Pre-installed : 32GB |
| Storage |
M.2 2280 NVMe SSD slot (Alt U.2) (PCIe 4.0 x4) x 1 M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x4) x 1 M.2 2280/22110 NVMe SSD slot (PCIe 3.0 x2) x 1 Pre-installed : 1TB |
| Expansion Slot | 1 x PCIe 4.0 x16 slot (Half-height, single-slot, supports up to PCIe 4.0 x8 speed) |
| Video Output | 1 x HDMI (2.0) (4K@60Hz) 2 x USB-4 (8K@30Hz) |
| Audio Output | 1 x HDMI (2.0) 1 x 3.5mm combo jack |
|
Wireless Connectivity |
M.2 2230 Wi-Fi support (Wi-Fi 6, Bluetooth 5.2) |
| Ethernet | 10Gbps SFP+ LAN x 2 2.5Gbps RJ45 LAN x 2 |
| I/O Ports |
HDMI x 1 USB-4 ports x 2 (Alt PD) USB 3.2 Gen2 Type-A ports x 2 USB 3.2 Gen1 Type-A ports x 2 USB 2.0 ports x 2 10G SFP+ ports x 2 RJ45 2.5G Ethernet ports x 2 3.5mm combo jack x 1 |
| Power Supply | DC 19V (including power adapter) |
| Operating System | Windows 11 Home |
| Dimensions | 196 x 189 x 48 mm |
